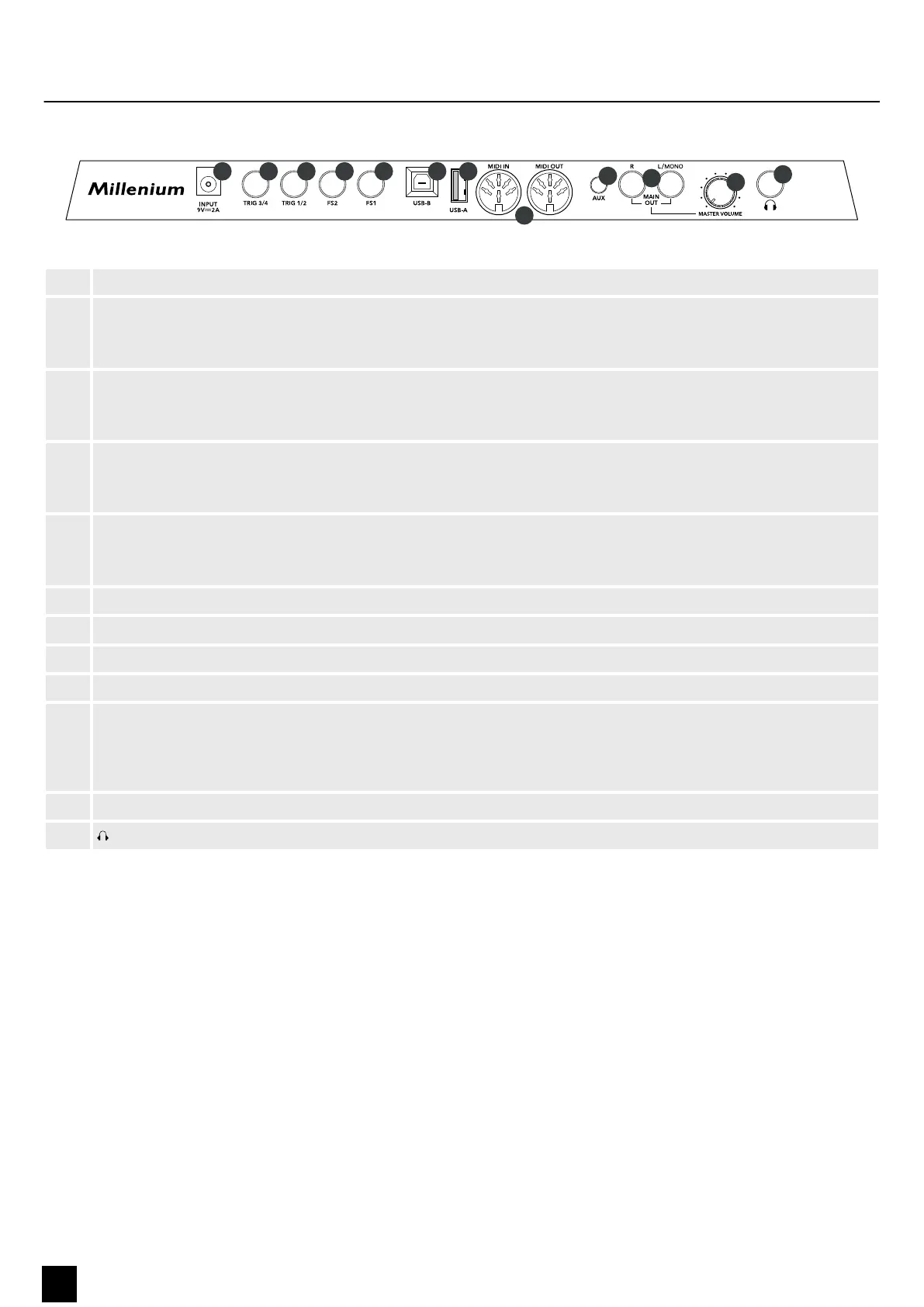

15 [INPUT] | Connection socket for the supplied 9V power adapter
16 [TRIG 3/4] | Input socket for connecting an external trigger, designed as a 6.35-mm jack socket
The two left [TRIGGER] LEDs on the front of the device light up as soon as a signal is received from the connected
external trigger.
17 [TRIG 1/2] | Input socket for connecting an external trigger, designed as a 6.35-mm jack socket
The two right [TRIGGER] LEDs on the front of the device light up as soon as a signal is received from the connected
external trigger.
18 [FS2] | Input socket for connecting an external foot switch, designed as 6.35-mm jack socket
The left [FOOTSWITCH] LED on the front of the device lights up as soon as a signal is received from the connected
external foot switch. By default, the input jack is used for a hi-hat pedal.
19 [FS1] | Input socket for connecting an external foot switch, designed as 6.35-mm jack socket
The right [FOOTSWITCH] LED on the front of the device lights up as soon as a signal is received from the connected
external foot switch. The input jack is usually used for a kick drum pedal.
20 [USB-B] | USB-to-host interface for connecting to a computer (MIDI data)
21 [USB-A] | USB interface for connecting a USB ash drive (USB stick)
22 [MIDI IN]/[MIDI OUT] | MIDI in/out socket
23 [AUX] | Input socket for connecting external audio devices such as an MP3 player, designed as 3.5-mm jack socket
24 [MAIN OUT R]/[MAIN OUT L/MONO] | Output sockets for connecting powered speakers, a stereo system or other ampli‐
ers, designed as 6.35-mm jack sockets.
Connect both channels (R and L / MONO) for stereo transmission. Connect only channel (L/MONO) for mono transmis‐
sion.
25 [MASTER VOLUME] | Overall volume control
26
| Output socket for connecting a headset, designed as a 6.35-mm jack socket
Back
Connections and controls
10
NonaPad
Sampling Percussion Pad
