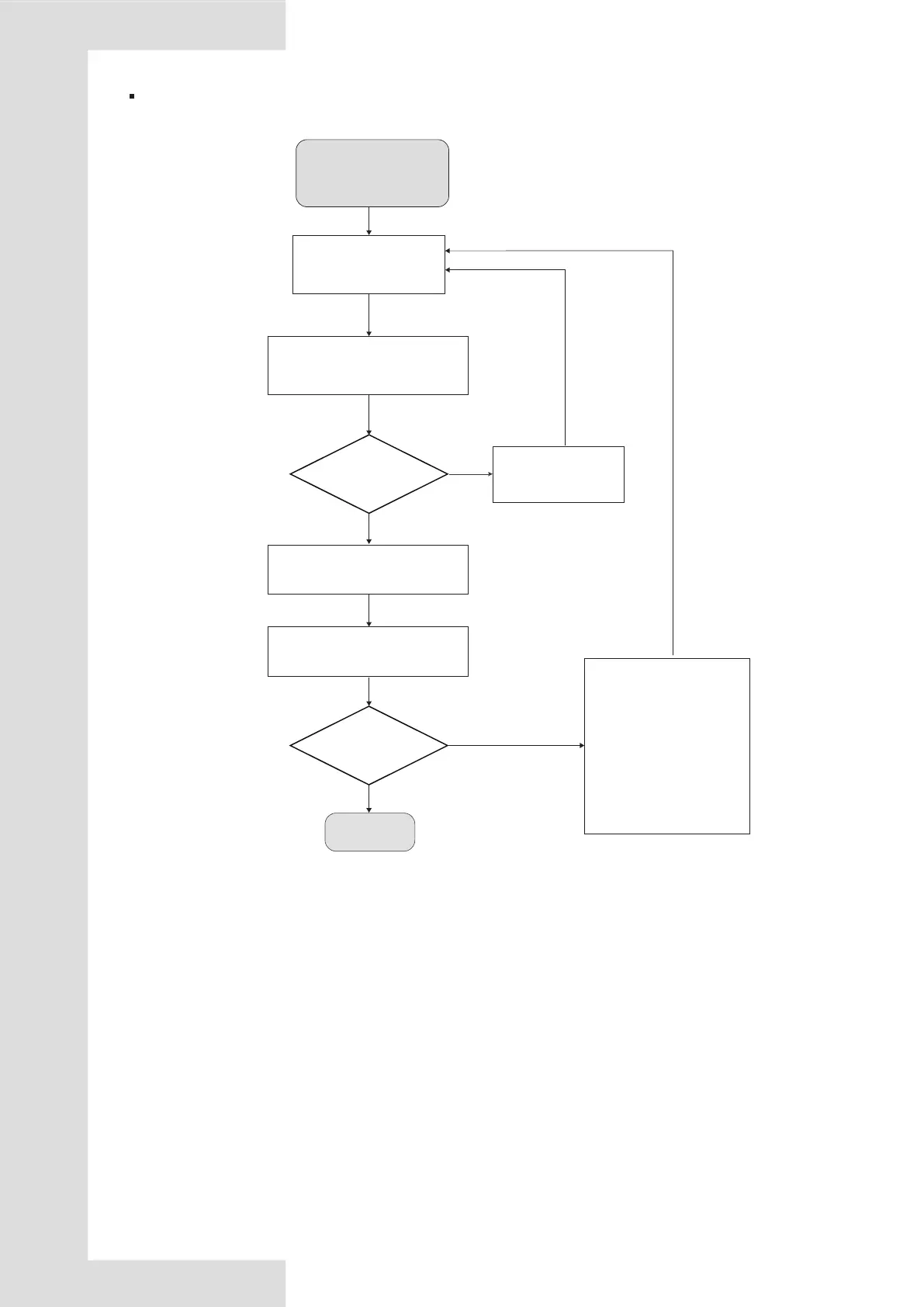

Installation scheme flow chart
Determine the room size
and the refrigerant
system configuration
Determine the strategy of the
refrigerant charge and room area
limitations following section 1.3.1
Decrease piping
length by changing
layout.
Yes
No
Check if the area of the
smallest room meets
the requirements
Calculate the total refrigerant
charging amount (Mc) according to
section 5.8.1
Check the corresponding table to
get the maximum refrigerant
charge (Mmax)
Yes
1.Select the Indoor unit with
a larger airflow rate.
2.Decrease piping length by
changing layout.
3.Increase the smallest
room area.
4.Change the strategy as
described in section 1.3.1.
5. Add additional measures
as described in applicable
legislation.
No
OK
Mc
≤12 kg?
Mc
≤Mmax
