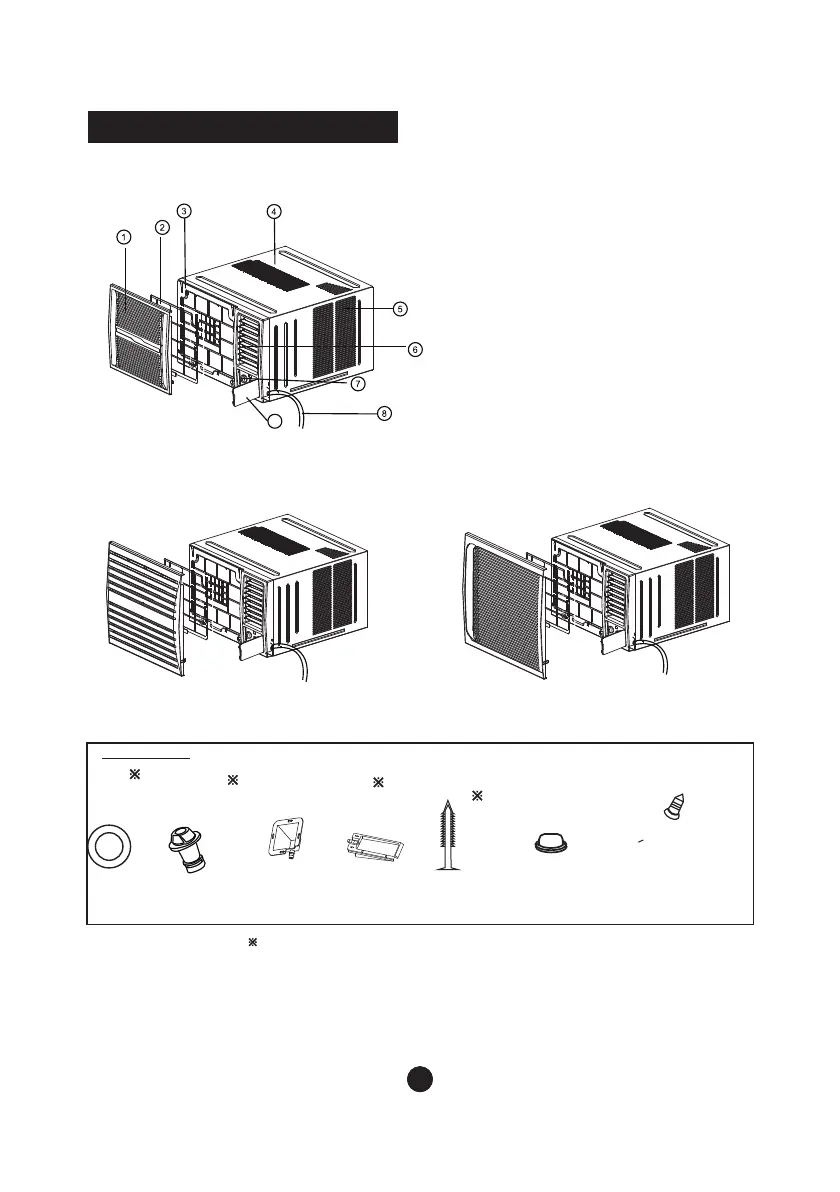

1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille (outdoor side)
6. Air outlet grille
7. Operation knob
8. Power supply cord
9.Control panel cover
UNIT PARTS IDENTIFICATION
Model B
Model C
Model A
NOTE: The front panel and cabinet may be slightly different according to the models, but the
functions are the same. The following illustration is for explanation purpose only, the actual
shape of the machine you purchased may be slightly different.
9
NOTE:All the illustrations in the manual are for explanation purpose only.Your air conditionar
may be slightly different.The actual shape shall prevail.
NOTE: Optional parts( ), depending on model you purchased.
Accessories
( )
Seal
(Used on
drain joint)
1
1
Screw
2 (For >18000But/h models only:
Used to fasten the front panel)
2 or 4 ( Used to install the drain
tray)
Drain Joint
1 pec1pec
Drain Tray
Rubber Plug
1or 2
(depend on model you purchased)
( )
( )
or
8
Wooden screw
(optional)
( )
55
