Select Installation Type
A. Vented Installation
B. Non-Vented / Recirculation Installation
A. Vented Installation
• Roof Discharge
This canopy hood is designed for venting through the roof or wall.
A 6" round vent system is needed for installation (not included). The hood exhaust
opening is 6" round.
Vent system can terminate either through the roof or wall. To vent through a wall, a
90° elbow is needed.
• Rear Discharge
A 90° elbow may be installed immediately above the hood.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
• If it is not possible to vent cooking fumes and vapors to the outside, the hood can
be used in the non-vented (recirculating) version, fitting a charcoal filter and the
deflector (not included, you can decide whether to use according to your installation
environment). Fumes and vapors are recycled through the top grille.
A
A
B
B
B
A

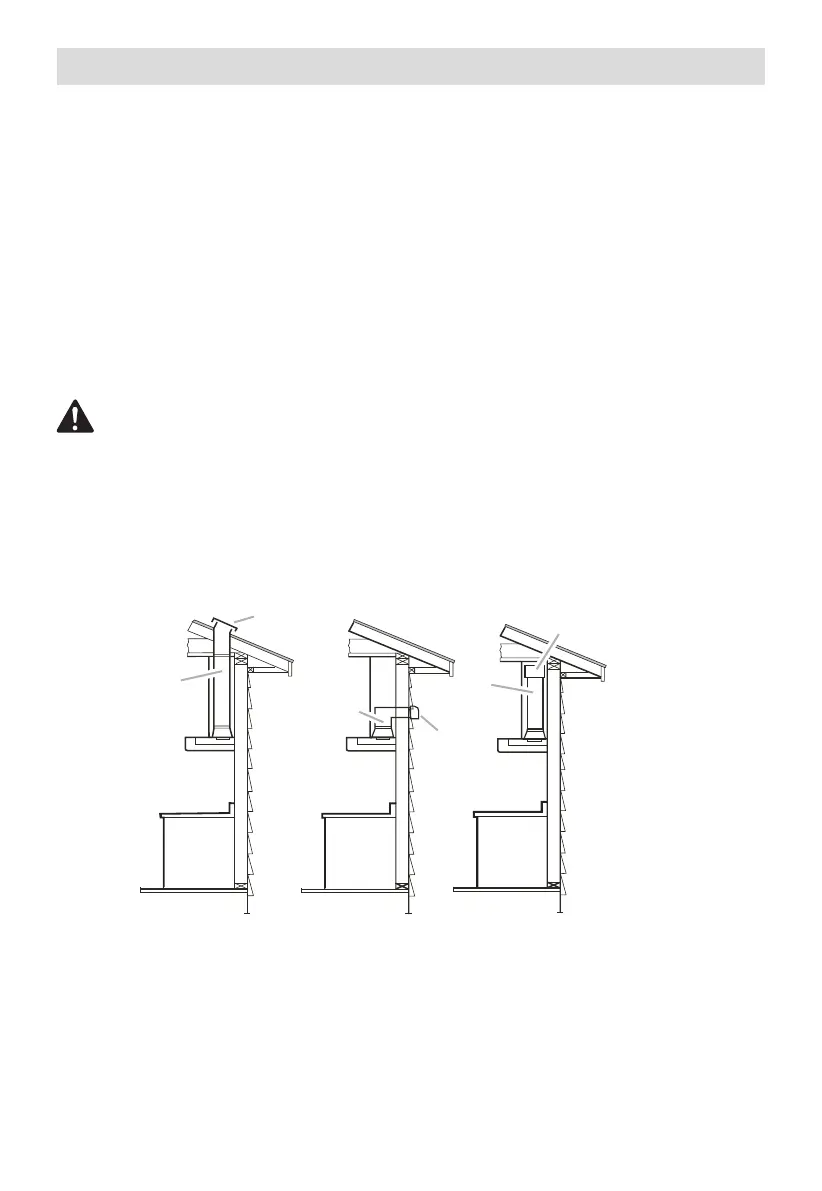

Roof Venting
A. Roof cap
B. 6" round vent
Wall Venting
A. Wall cap
B. 6" round vent
Non-Vented (Recirculating)
A. Deflector
B. 6" round vent
Local building codes may require the use of makeup air systems when using ventilation
systems greater than specified CFM of air movement. The specified CFM varies from
locale to locale. Consult your HVAC professional for specific requirements in your area.
