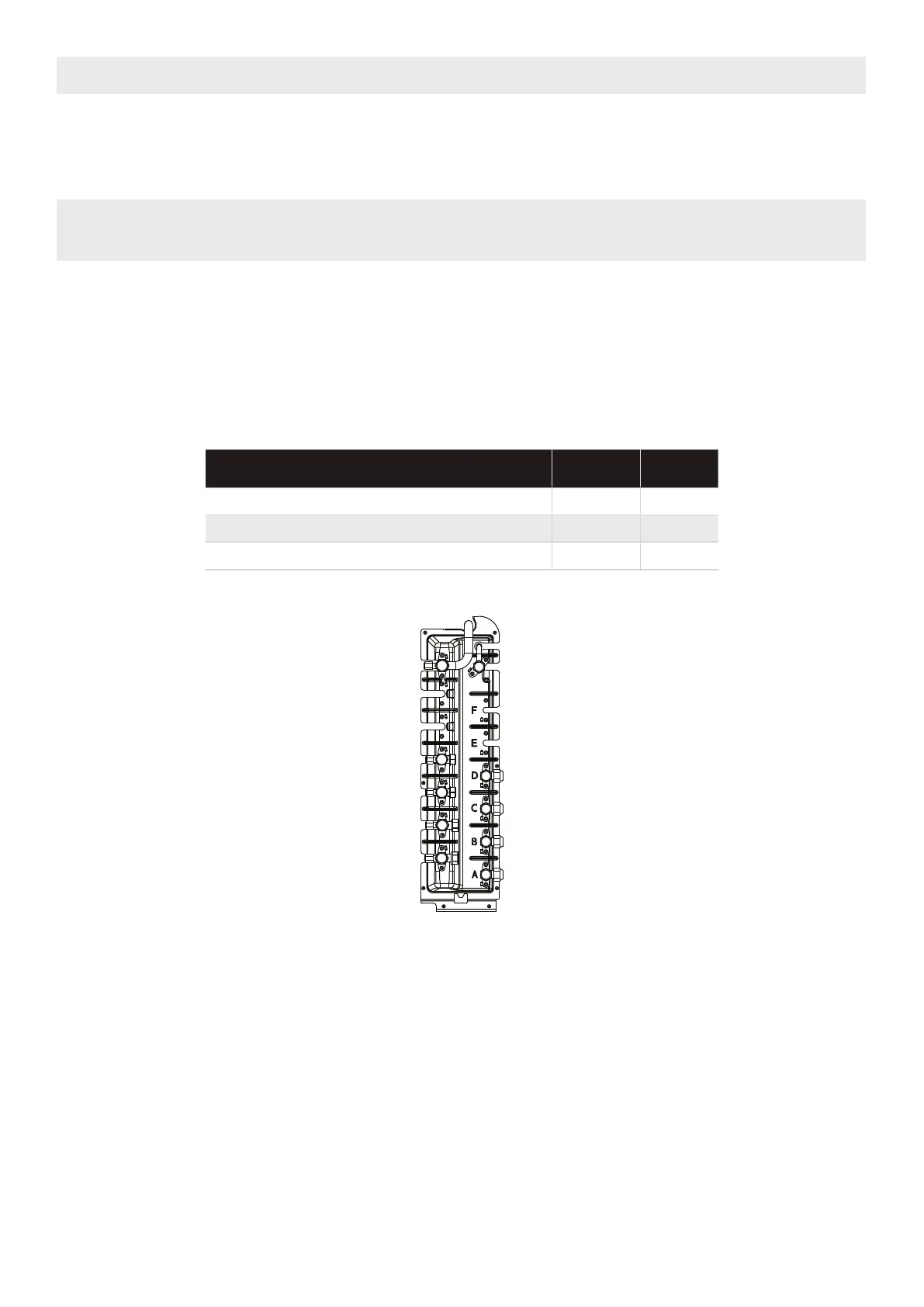

When Select a 24K Indoor Unit
The 24K indoor unit can only be connected with an A system. If there are two 24K indoor units, they
can be connected with A and B systems.
Connective pipe size of an A and B system
(unit: inch)
Indoor Unit capacity(Btu/h)
Liquid Gas
7K/9K/12K 1/4 3/8
12K/18K 1/4 1/2
24K/36K 3/8 5/8
You must drill a hole in the wall for the refrigerant piping, and the signal cable that will connect the
indoor and outdoor units.
1. Determine the location of the wall hole based on the location of the outdoor unit.
2. Using a 65-mm (2.5”) core drill, drill a hole in the wall.
NOTE: When drilling the wall hole, make sure to avoid wires, plumbing, and other
sensitive components.
3. Place the protective wall cu in the hole. This protects the edges of the hole and helps seal it when
you finish the installation process.
Notes On Drilling Hole In Wall
17
