09

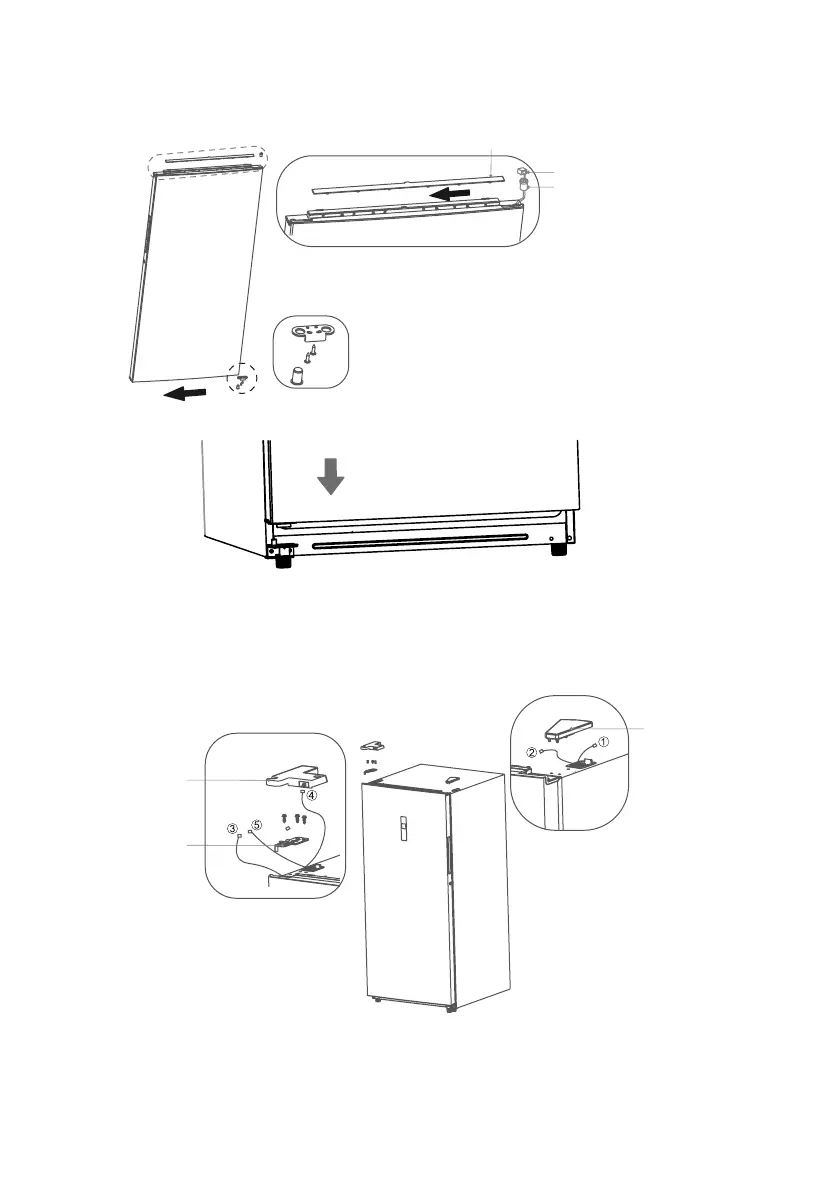

4. Place the door horizontally, remove the stop block and shaft sleeve and install
them on the other side of the door body.
Sleeve pipe
Door signal line
Door upper cover
5. Lift the refrigerator and place the door onto the hinge pin of the bottom hinge.
6. Take out the left top hinge, left top hinge cover from accessories package.
Connect signal line terminal
c
with signal line terminal
e
, connect signal line
terminal
d
to the door switch.
7. Mount left top hinge, left top hinge cover and hole cover.
Hole cover
Hinge cover
Hinge
• The picture above is only for reference. The actual conguration will depend on the
physical product or statement by the distributor.
