23

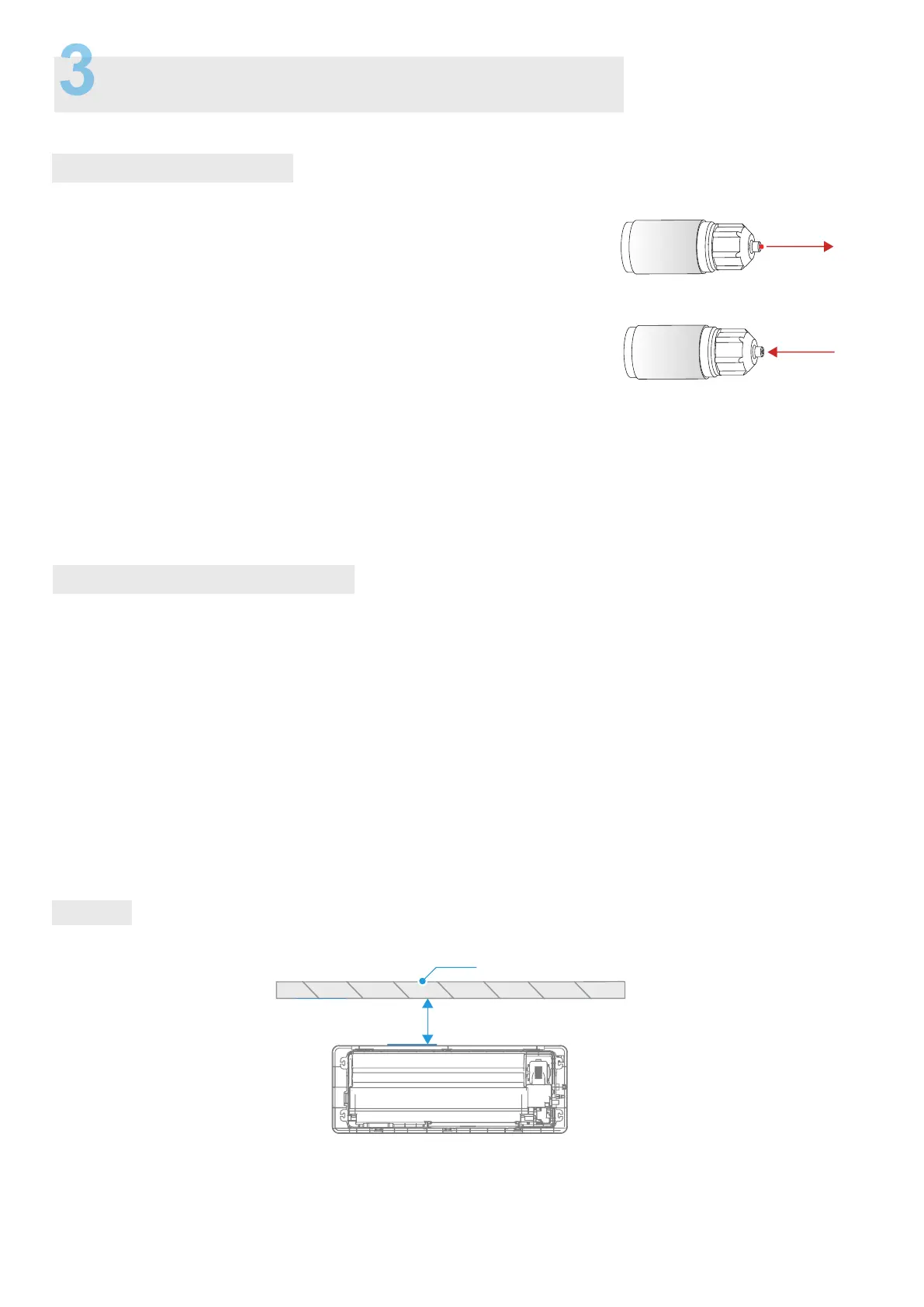

Top view
(Unit: mm)
Wall
≥100
3
Sealing
The red
dot bulges
Air
leakage
The red
dot retracts
Unpacking Check
Preparations Before Installation
①
②
③
④
After unpacking, check whether the packing materials are in good
condition, whether the accessories that come with the product are
complete, whether the air conditioner is intact, whether the surfaces of
the heat exchanger and other parts are not worn, and whether there
are oil stains on the stop valves of the unit.
Check the two sealing nuts of the refrigerant pipe, and observe
whether the red dot on the surface of the sealing nut of the gas pipe
bulges. If it bulges, the refrigerant system is well sealed; if it retracts, it
is leaking, and need to contact local dealer.
Check the model before installation.
After indoor unit and outdoor unit inspection, pack them with plastic
bags to avoid intake of foreign matters.
① Determine the air outlet/return mode and the suspension position of the indoor unit according to the design
drawing.
② Draw lines to locate the drilling positions of the bolts according to the three-dimensional drawing of the unit.
③ There should be no obstacles within 200 mm of the return air inlet.
④
It is suggested to use an infrared ray locator for line drawing.
Determine the positions of the air conditioning unit and suspension bolts.
Indoor Unit Positioning
