Installation of appliance
Note: Wear protective gloves
to fit the hob.
Caution!
Black nut of
manifold
Elbow
Torque:
9±1N.m
lf necessary to adjust or
install the elbow, it is
allowed only torque
wrench with 9±1N.m, and
work on the Black nut of
manifold instead of on
the elbow.
9.0N.m

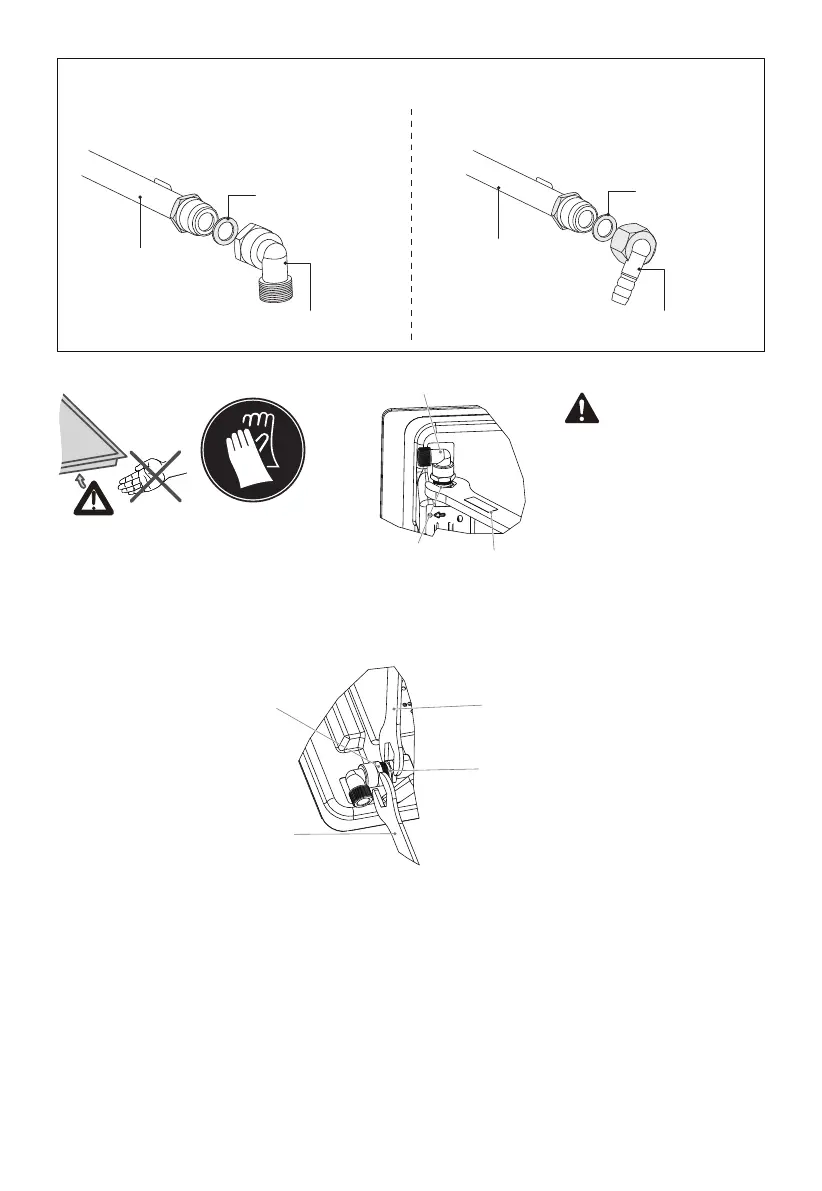

Gas supply replacement and installation guidelines:
seal
G1/2"Female coupler Ø11.5 Female coupler
LPG > NG
NG > LPG
seal
The gas inlet
pipe assembly
The gas inlet
pipe assembly
(1) Adjusting the direction of elbow
The black bolt of the gas
inlet pipe assembly
Tighten with a torque
wrench of 9±1N.m
Hold still
The hexagonal
head of the elbow
After loosening the elbow, adjust the elbow interface to the required direction as
required, and keep the hexagonal head of the elbow motionless with a wrench. Use a
9±1N.m torque wrench to tighten the black bolt of the gas inlet pipe assembly. Ensure
that the torque of the wrench is within the required range to prevent elbow breakage or
damage caused by excessive force.
After the installation is tightened, check whether the parts are in good condition and
test the air tightness to ensure the tightness of the installation. The installer is
responsible for the results of the process.
