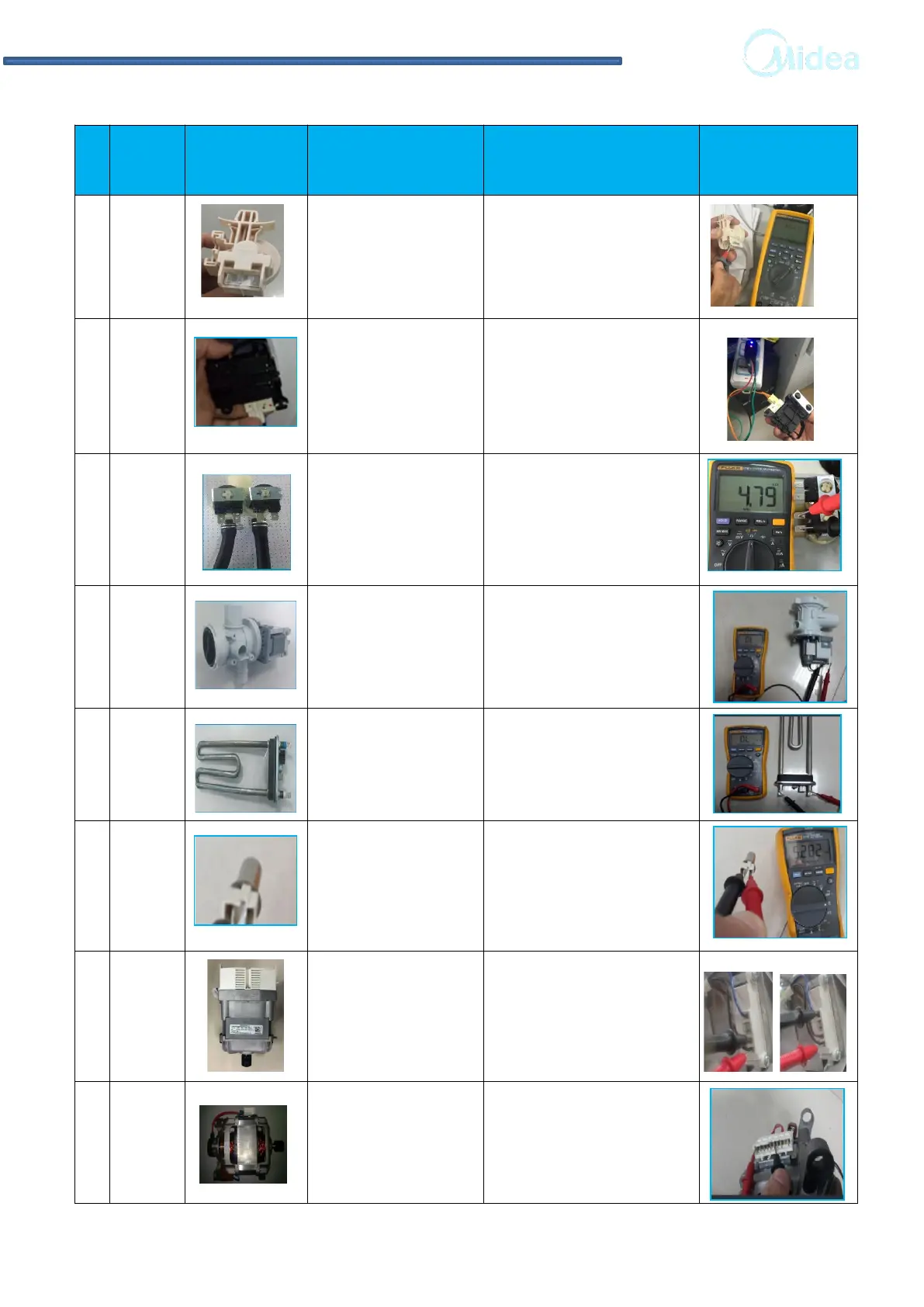

Before repairing, use multimeter to judge circuit stand of fail
.
62
No Parts Picture Test Description
Parameter Remarks
1
Water
sensor
Measuring two
vertical terminals.
Capacitance value
range 40-50nF-PASS
2
Door
lock
Electrify the
resistance with
Door Plunger in it.
1 seconds after the
power supply can
automatically locked,
after the power off can
automatically unlocked
immediately-PASS
3
Water
valve
Measuring
resistance.
Resistance value range
3-6KΩ-PASS
4 Pump
Measure the
resistance.
Resistance value range
150-250Ω-PASS
5 Heater
Measuring
resistance.
Resistance value range
20-35Ω-PASS
6 NTC
Measuring
resistance.
Resistance value range
4.8kΩ±8%@25℃0-
PASS
7
BLDC
Motor
Measure the
resistance of black
pin ~ brown pin
and black pin ~
blue pin
Resistance value range
3.65-4.05Ω-PASS
8
Univers
al
Motor
Measure the
resistance of the
toroids
Resistance value range
PIN5~PIN10
1.3±10%Ω-PASS
7 CHECK POINT OF CIRCUIT
