E64
Step 1
Check whether the harness connecting the wire to the motor is
installed in place, and whether the harness connecting the wire to the
main PCB is not installed in place
① Close the tap and disassemble the 2 screws of the top cover plate. (Fig.1)
② Push back the top cover plate 15mm until it leave away from the control panel and then
take it down. (Fig.2)
③ Check whether the harness connecting the wire to the main PCB is installed in place.(Fig.3)
④ Remove the 4 screws of the rear cover, and show the motor. (Fig.4 & Fig.5)
⑤ Check whether the harness connecting the wire to the motor is installed in place.(Fig.6)

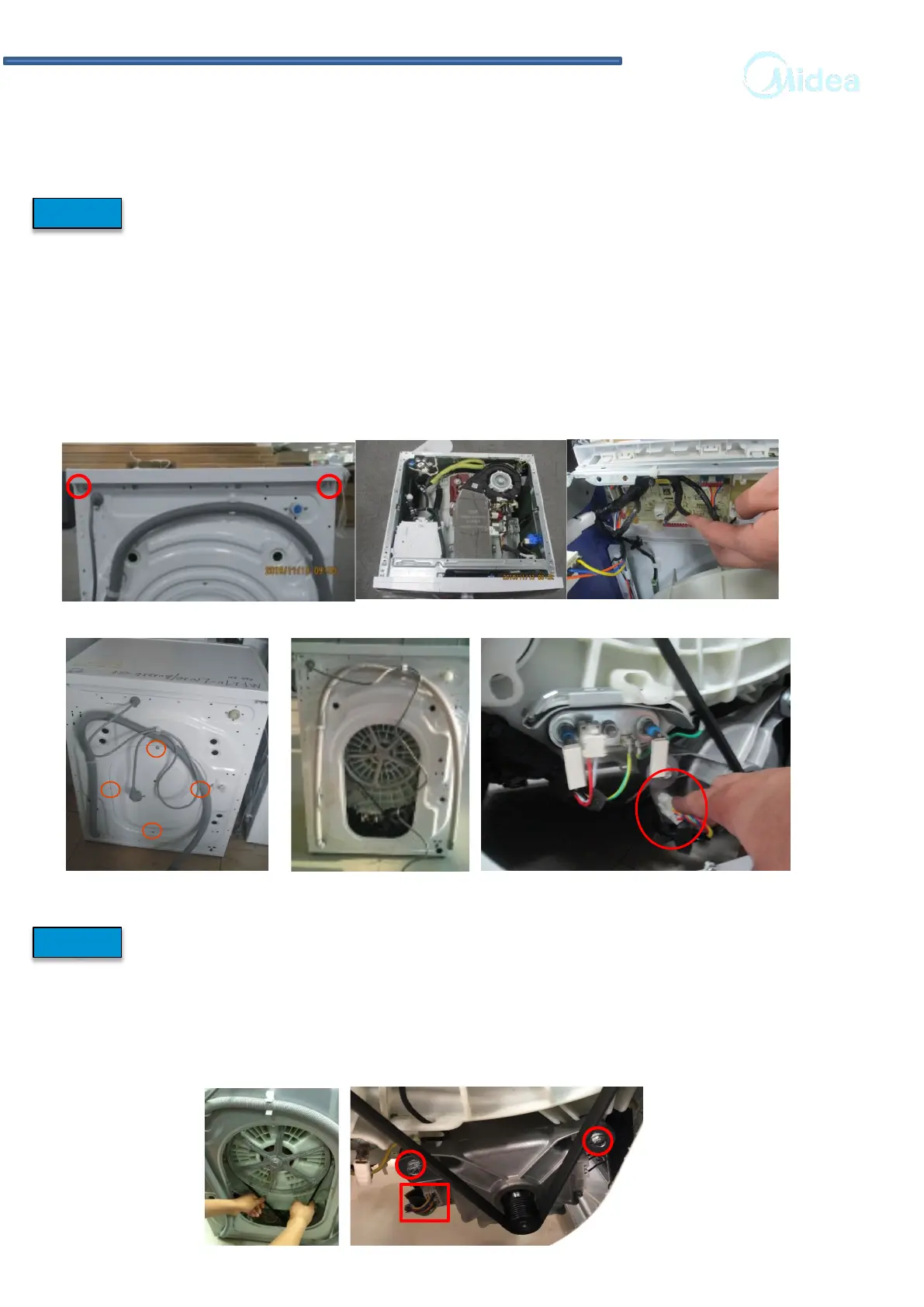

Fig.1 Fig.2 Fig.3
48
Check Procedure:
Fig.4 Fig.5 Fig.6
Step 2
Replace the motor and check whether the problem can be solved
① Remove the Belt. (Fig.7)
② Disassemble the bolt of pulley and pull out the pulley. Disassemble the connector of motor.
Disassemble 2 screws on the motor. (Fig.8)
③ Replace the motor.
Fig.7 Fig.8
5. MALFUNCTION CODES AND EXPLANATIONS
