24
20
Window Sash
Seal

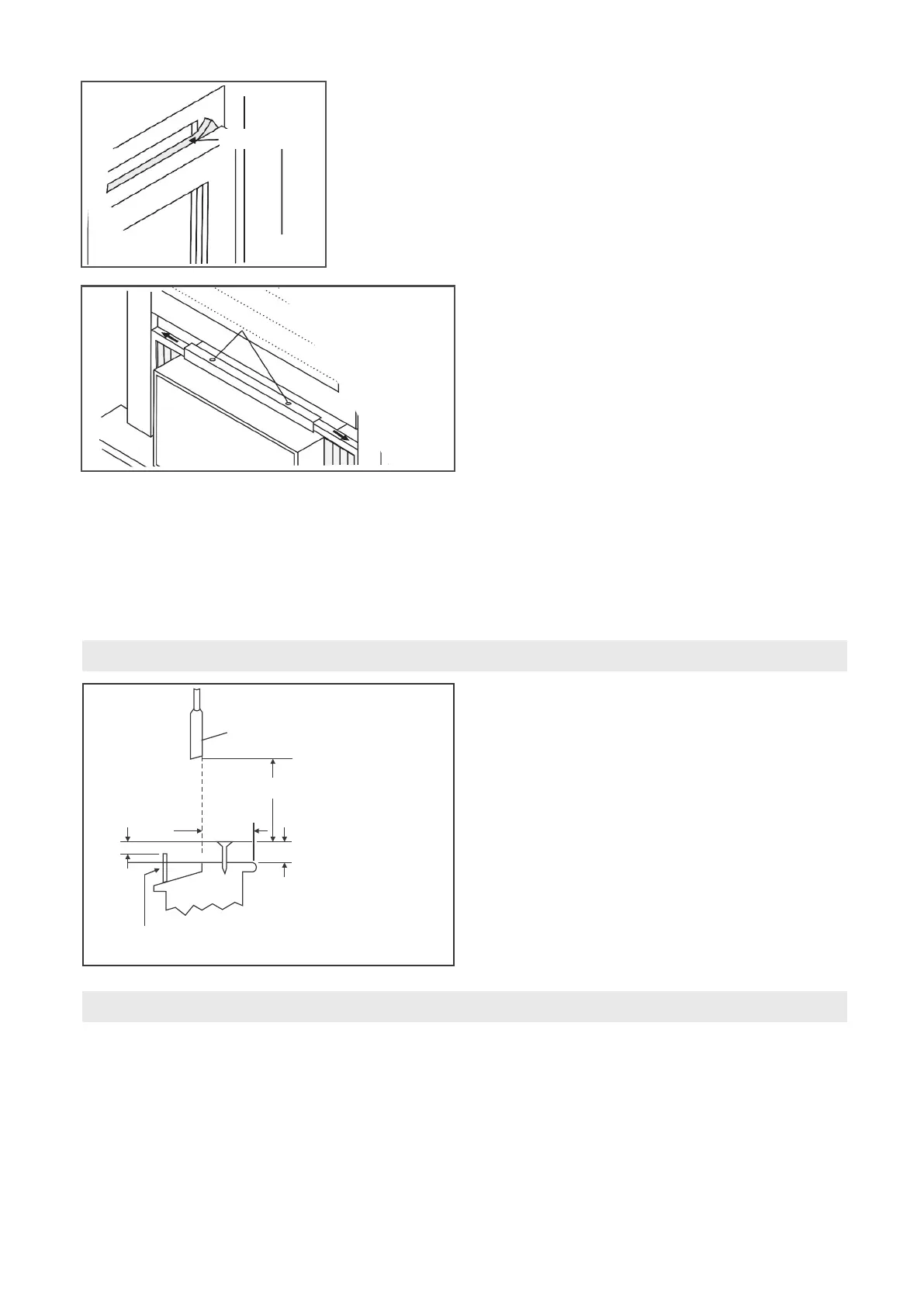

7 Install Window Sash Seal and Safety Lock
1. Trim sash seal to fit window width. Insert into
space between upper and lower sashes (Fig. 19).
Safety Lock
3/4” (or 1/2”) Long
Hex-head Screws
Fig. 20
2. Attach right angle safety lock (Fig.
20).
8 Install Chassis into Cabinet and Install Front to Unit
1. Lift air conditioner and carefully slide into cabinet leaving 6” (152mm) protruding.
2. DO NOT press or apply pressure to controls or finned coils.
3. Be sure chassis is firmly seated towards rear of cabinet.
4. Installation of front is the reverse of removal outlined in Section 1.
Removing AC From Window
• Turn AC o, and disconnect power cord.
• Remove sash seal from between windows, and unscrew safety lock.
• Remove screws installed through frame and frame lock.
• Close (slide) side panels into frame.
• Keeping a firm grip on air conditioner, raise sash and carefully remove.
• Be careful not to spill any standing water while lifting unit from window. Store parts
WITH air conditioner.
If AC is Blocked by Storm Window
Check your storm windows - if your
storm window frame does not allow the
clearance required, correct by adding a
piece of wood as shown in Fig. 21, or by
removing storm window while room air
conditioner is being installed.
SASH
19” MIN.
Storm Window Frame
or Other Obstruction
Board Thickness as
Required, Along
Entire Sill. Fasten With
Two Nails Or Screws.
1/2” MIN.
1/2” MIN.
Fig. 21
Fig. 19
