22
18
Plastic Frame
Side Retainer
Window
Accordion
Panel

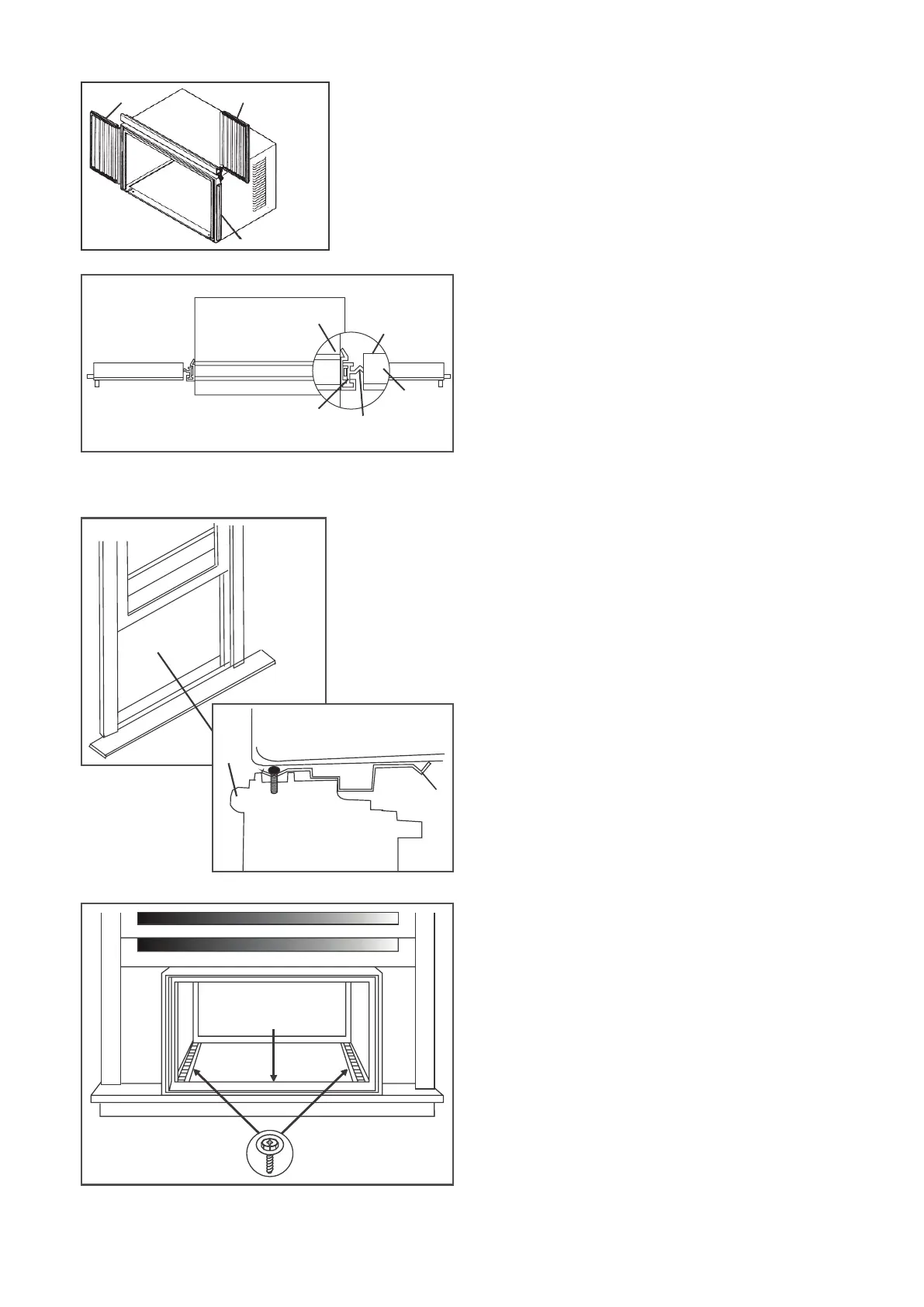

Fig. 10
Fig. 11
3 Assemble Window Accordion Panels
1. Place cabinet on floor, a bench, or a table.
2. Slide I section of window accordion panel into
side retainer on the side of the cabinet (see Fig.
10 & Fig. 11). Do both sides.
TOP VIEW
Air Conditioner
Cabinet
Plastic
Frame
Locking
Screw
Hole
Window
Accordion Panel
“I” Section
3. Insert top and bottom legs of window
accordion panel frame into channel in
the top rail and bottom rail. Do both
sides.
4. Insert washer head locking screws (2)
into holes in top leg of accordion panel
frame (see step 6). Do not completely
tighten. Allow leg to slide freely. Screws
will be tightened after section 6.
4 Place Cabinet in Window Opening
1. Open window and mark center of window sill as
shown (Fig. 12).
2. Place cabinet in window with bottom sill angle
firmly seated over window sill as shown. Bring
window down temporarily behind top rail to hold
cabinet in place (Fig. 13).
Sill
Sill Angle
Fig. 12
Fig. 13
Fig. 14
3. Shift cabinet left or right as needed
to line up center of cabinet on center
line marked on sill.
4. Fasten cabinet to window sill with 2
screws into holes (You may wish to
pre-drill pilot holes).
5. Add bottom rail seal over screws to
window sill. (Fig. 14).
Bottom
Rail Seal
3/4” (or 1/2”) Long
Hex-head Screw
