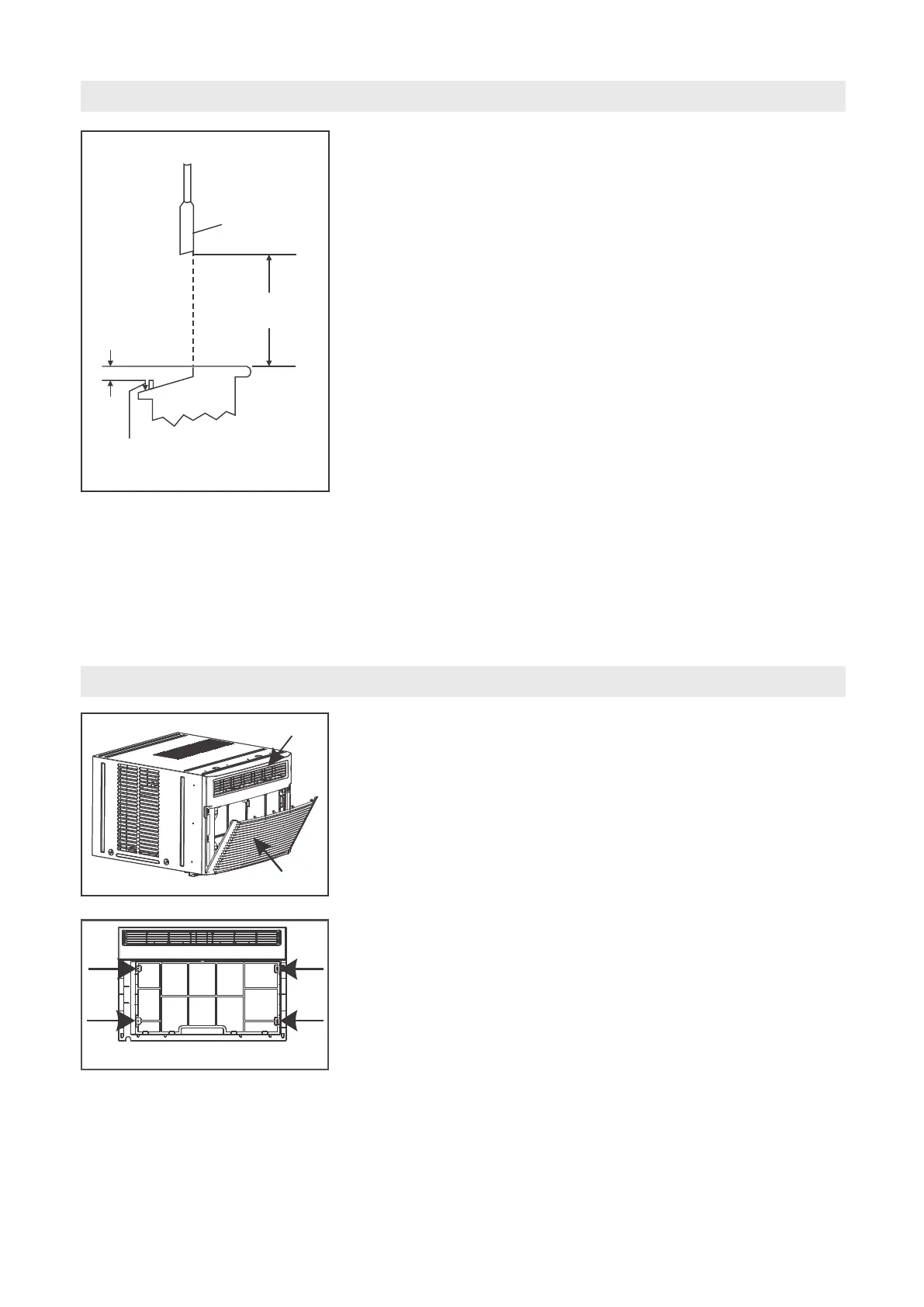

Prepare the Window
Window Mounting
1. Check window opening size - the mounting parts
furnished with this air conditioner are made to
install in a wooden sill double-hung window. The
standard parts are for window dimensions listed
above. Open sash to a minimum of 19” (483 mm).
See Fig. 1.
2. Check condition of window - all wood parts of
window must be in good shape and able to firmly
hold the needed screws. If not, make repairs before
installing unit.
3. Check for anything that could block airflow - check
area outside of window for things such as shrubs,
trees, or awnings. Inside, be sure furniture, drapes,
or blinds will not stop proper airflow.
4. Check the available electrical service - Power supply
must be the same as that shown on the unit serial
nameplate. Power cord is 48” (1220mm) long. Be
sure you have an outlet nearby.
5. Carefully unpack air conditioner - Remove all
packing material. Protect floor or carpet from
damage. Two people should be used to move and
install unit.
SASH
Storm Window Frame
or Other Obstruction
19” MIN.
1/2” MIN.
Fig. 1
1 Remove Chassis
1. Pull down front panel and remove filter. (See Fig. 2).
2. Lift front upwards and place to one side.
3. Locate the four front screws and remove. These
screws will be needed to re-install the front panel
(see Fig. 3).
Fig. 3
Front Panel
Front Grille
Fig. 2
