INSTALLATION INSTRUCTIONS
Window Requiriments
Save carton and these Installation
Instructions for future reference. The carton
is the best way to store unit during winter,
or when not in use.
Do the following before beginning installation.
See illustrations below. Check dimensions of
your unit to determine model type:
Model type: 25K
Unit Height: 18-5/8”
Unit Width: 26-1/2”
Min. Window Opening: 19-1/2”
Min. Window Width: 31”
Max. Window Width: 42”
Preliminary Instructions

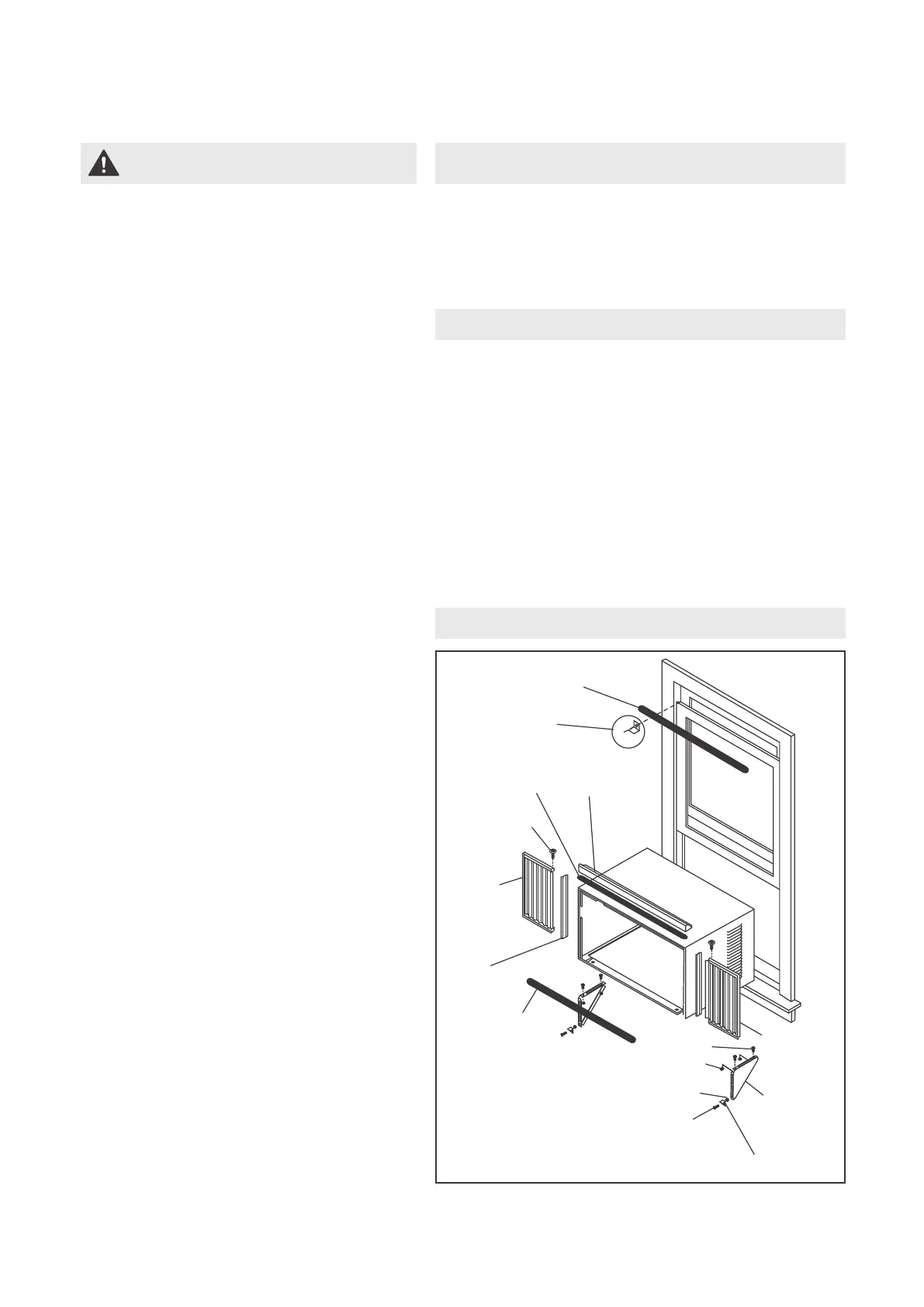

Window Sash Seal
Top RailFoam Gasket
3/4” Long Flat Head Bolt
Sill Angle Bracket
1 /2” Long
Screw and
Locknuts
Window
Support
Bracket
Frame
Assembly
(Right)
Side
Retainer
Washer Head
Locking
Screw
Bottom Rail
Seal to Unit
Frame
Assembly
(Left)
Safety Lock and
3/4” (or 1/2” ) Long
Hex Head Screw
Locknuts
Read these instructions completely
and carefully.
• IMPORTANT - Save these
instructions for local inspector’s
use.
• IMPORTANT - Observe
all governing codes and
ordinances.
• Note to Installer - Be sure to
leave these instructions with the
consumer.
• Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of
this appliance requires basic
mechanical skills.
• Completion time -
Approximately 1 hour. We
recommend that two people
install this product.
Proper installation is the
responsibility of the installer.
Product failure due to improper
installation is not covered under
the Warranty.
You MUST use all supplied parts and
use proper installation procedures as
described in these instructions when
installing this air conditioner.
Do not, under any circumstances,
cut or remove the third (ground)
prong from the power cord.
Do not change the plug on the
power cord of the air conditioner.
Aluminum house wiring may
present special problems - consult
a qualified electrician.
When handling unit, be careful to
avoid cuts from sharp metal edges
and aluminum fins on front and
rear coils.
WARNING - Before You Begin
NOTICE
