Page 18

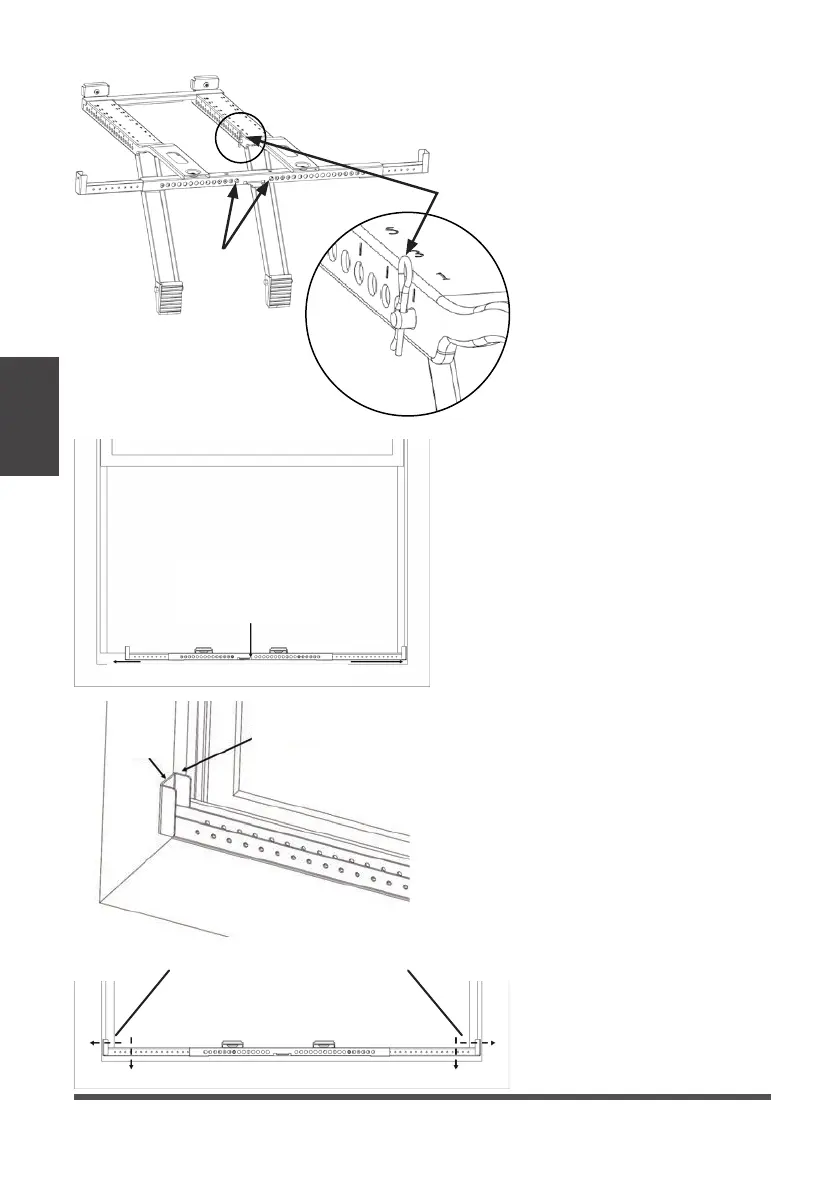

D. After securing both
Angled Support Arms,
check the level and ensure
the bracket feels secure.
Minor adjustments may be
needed.
Once secured, insert the
Cotter Pins into the Main
Support Pins.
E. Center the Support Bracket with the
center of the window. Note, due to
the design of the Air Conditioner, the
Support Bracket is biased to the left.
Once centered, extend the Left and
Right Extension Arms until they touch
the side of the windowsill and are in
front of the side window frame.
Secure the bracket to the window
with a screw at the end of each
extension arm as shown. Holes at the
end or bottom of the Extension Arms
can be used to secure the Support
Bracket to the window.
Window Frame Side
Window
Side
Center this part of the
bracket with the center
of the windows.
Extend the Extension Arms until they touch the
Windowsill and the Spring Pin locks in place.
Use the provided 1/2” Type A screws.
NOTE: Drill 1/8” pilot holes before
screwing into the window sill.
Installation
Instructions
Cotter Pin
Spring Pin
Locks
