1. Prepare the Window
2. Prepare the Air Conditioner
• For safety reasons, all four (4) screws MUST be securely fastened.
• Before installing unit, the top rail must be assembled on the unit.
NOTE
Lower sash must open suffi ciently to allow a clear vertical opening (see dimension H in Table 1). Side louvers
and the rear of the AC must have clear air space to allow enough airfl ow through the condenser for heat
removal. The rear of the unit must be outdoors, not inside a building or garage.
Before installing the unit, the top rail must be
assembled on the unit for some models with
a capacity of less than 10,000Btu/h.

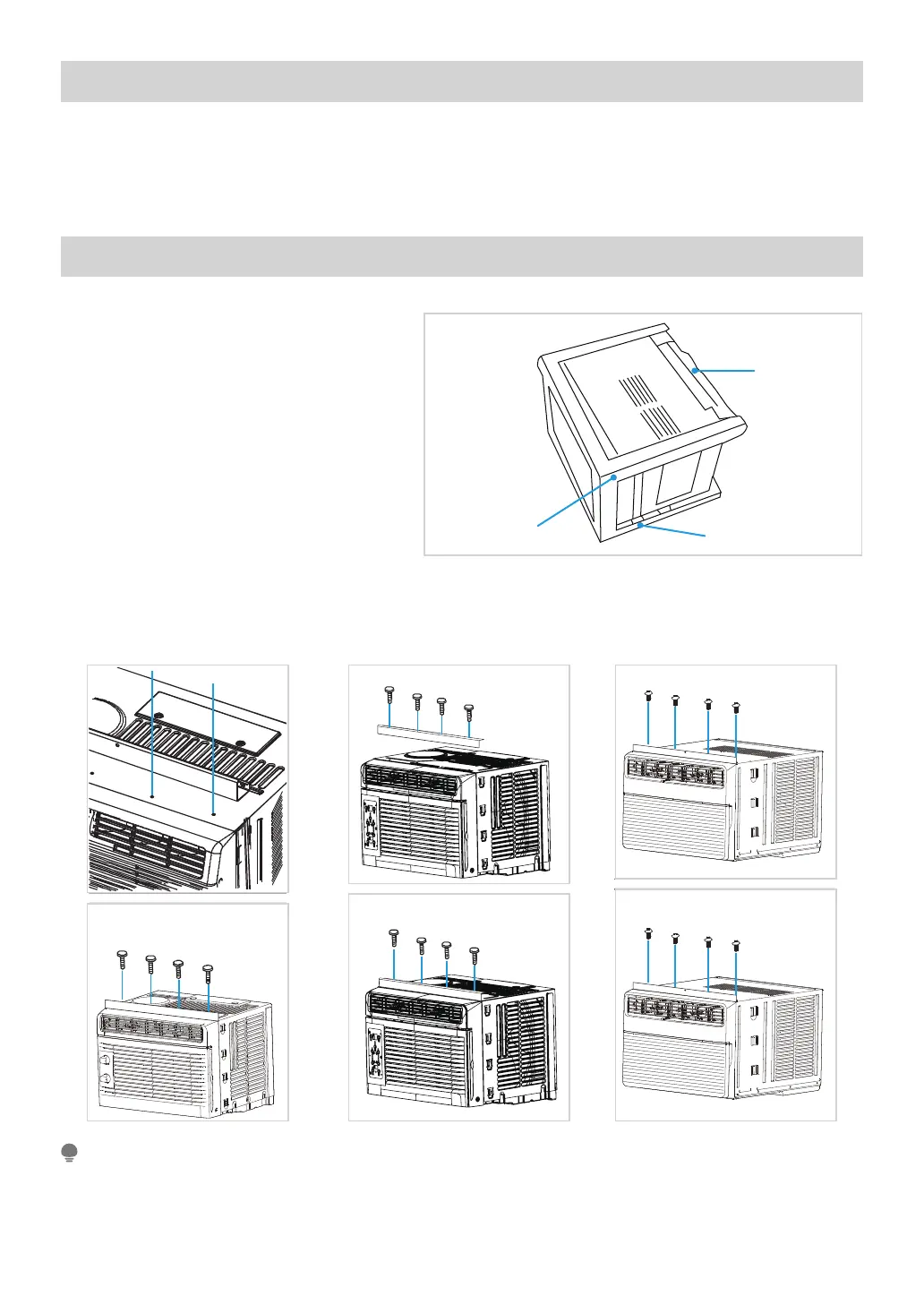

A. Remove the air conditioner from the
carton and place on a fl at surface.
B. Remove top rail from the packaging
material as shown in Fig. A.
C. Align the hole in the top rail with those in the top of the unit as shown in Fig. B.
D. Secure the top rail to the unit with the 3/8” Screws as shown in Fig. C.
Top Rail
Top Rail
Packaging
Fig. A
14
MAW05 Model MAW06 Model
Fig.B
Fig.C
Fig. C
Fig. B
MAW08 Model
Fig. C
Fig. B
Fig. B
Fig. C
