20
Installation
Instructions

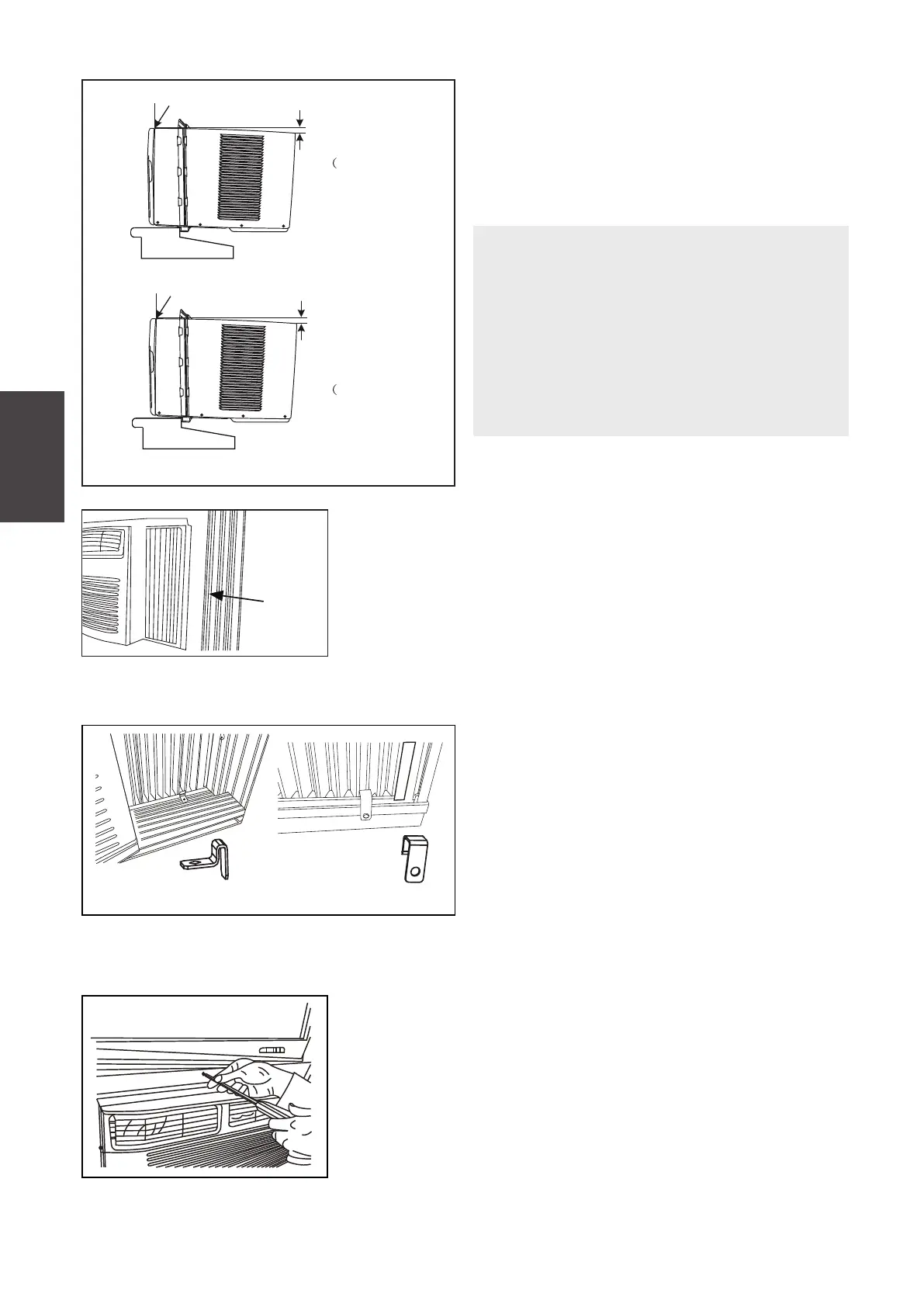

2. While keeping a firm grip on the air
conditioner, carefully place the unit into
the window opening so the bottom of
the air conditioner frame is against the
window sill (Fig. 5). Carefully close the
window behind the top rail of the unit.
NOTICE
Check that air conditioner is tilted back
per dimension H (Fig. 5) (tilted about 3°
to 4° downward to the outside). After
proper installation, condensate should
not drain from the overflow drain hole
during normal use. Adjust the slope if
otherwise.
3. Extend the side panels out against the window
frame (Fig. 6).
window
frame
Fig. 6
Fig. 5
Wooden Windows
INSIDE
OUTSIDE
Measure from the cabinet edge
H
H:About
3/4” to 1 ”
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
for 5K to K)
Measure from the cabinet edge
H
Fig. 7A Fig. 7B
Fig. 8A
5. SECURE AIR CONDITIONER
4. INSTALL AIR CONDITIONER
A. Place the frame lock between the
frame extensions and the window
sill as shown (Fig. 7A for Wooden
windows), (Fig. 7B for Vinyl-Clad
windows).
Drive 3/4” (19 mm) or 1/2” (12.7 mm)
locking screws through the frame lock
and into the sill.
NOTE: To prevent window sill from
splitting, drill 1/8” (3 mm) pilot holes
before driving screws.
B1:
17
For wooden windows:
Drive 1/2” (12.7 mm) locking screws through the
frame lock and into the sill (Fig. 8A).
NOTE: To prevent window sill from splitting, drill 1/8”
(3mm) pilot holes before driving screws. Drive 1/2”
(12.7mm) locking screws through frame holes into
window sash (Fig. 8B/8C).
6
for 5K to K)
6
