1. Use a #2 Phillips screwdriver and (4x) rack screws (not provided) to attach the inner shelf (A) to your
desired rear rackspace as shown. (FIGURE A)
TIP: Install lower rack screws first for ease of installation.
NOTE: Cage nuts (B) may be required for top mounting holes
on installations using Middle Atlantic’s Forward rackrail.
STANDARD INSTALLATION
• (8x) Standard,
10-32 Rack Screws
• #2 Phillips Screwdriver
• Brace Wrench (Provided)
WARNING: Use tools with caution and follow all necessary safety
protocols.
AVERTISSEMENT: Utiliser des outils avec prudence et suivre
tous les protocoles de sécurité nécessaires.
SUPPLIED COMPONENTS AND HARDWARE
REQUIRED HARDWARE AND TOOLS
Inner Shelf
A
Outer Shelf
C
Page 3
NOTE: Additional hardware is included that may not be required for your installation.
(4x)
10-32 Cage Nut
B
NOTE: Cage nuts are
included for installations
using Middle Atlantic’s
Forward rackrail.
Support Brace
D
(4x)
Brace Nut
F
(4x)
Brace Stud
E

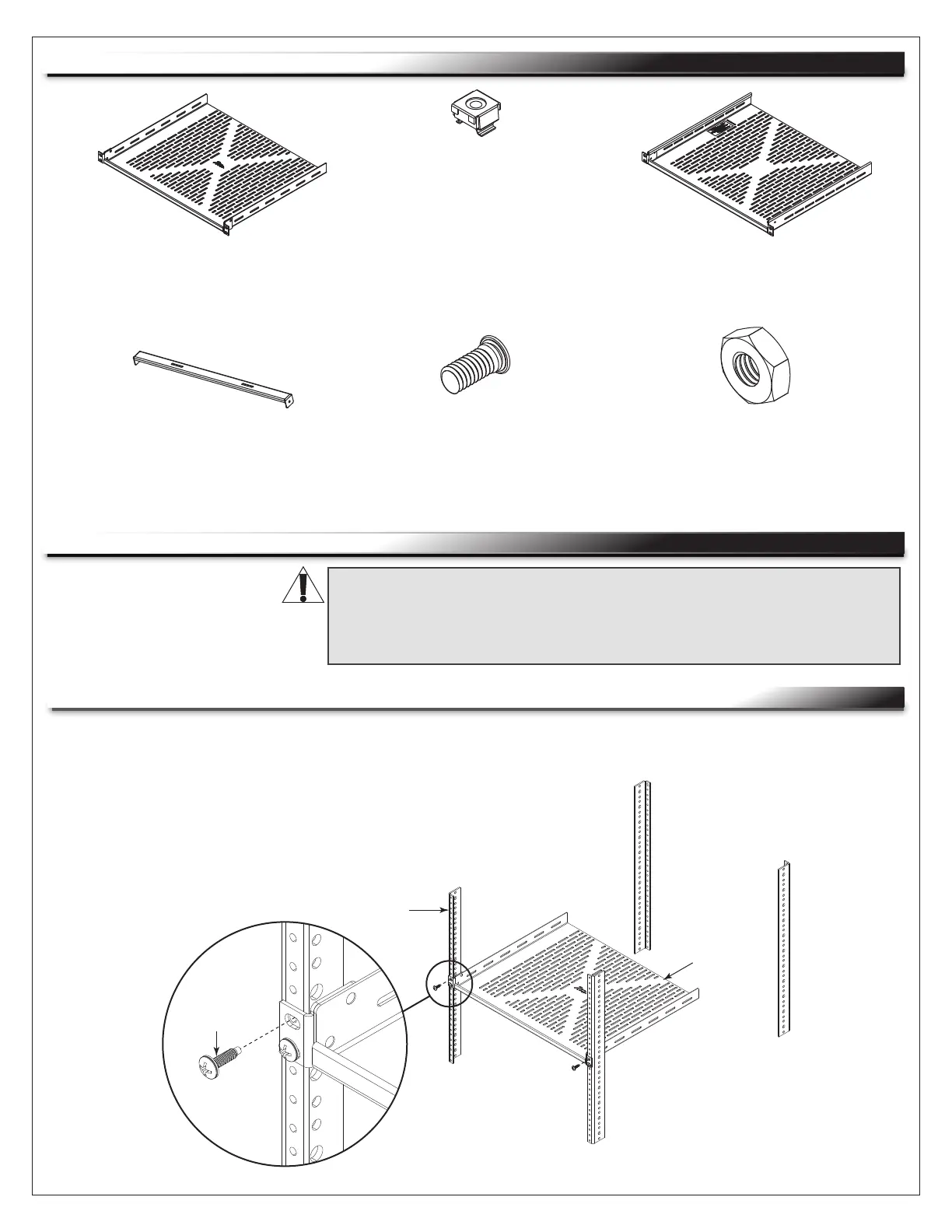

FIGURE A
A
Front
Rear
Rackrail
Rack
Screw
(Not Provided)
