CONTACT CONTROL SELECTOR SWITCH: Allows the customer to choose to control the module
using either a 'normally open' or 'normally closed' dry contact. Factory default setting is
'normally open'.
GREEN STATUS LED: This will illuminate whenever the power and status relays are energized.
GROUNDING/BONDING STUD: Stud used to ground/bond the module.
CIRCUIT BREAKER: 15 or 20 Amp circuit breaker.
120V POWER CORD
DUPLEX RECEPTACLE: All Modules contain one duplex receptacle.
RLM-15-1CA - 15 Amp (NEMA 5-15R) RLM-20-1CA - 20 Amp (NEMA 5-20R)
CONTROL SWITCH: Three position slide switch.
POSITION #1: AUTO - The receptacle will be energized when contact closure is supplied.
POSITION #2: OFF - The receptacle will not respond to any contact closure. The module cannot be
energized in the OFF position.
POSITION #3: ON - The receptacle will be energized and contact closure will have no effect.
YELLOW STATUS LED: This will illuminate whenever the control switch is in the AUTO position.
This is an indication that the internal power supply is functioning and that the module will respond to
a contact closure.
CONTROL TERMINALS: These terminals activate the receptacle with a contact closure. The control
power is provided by the modules internal 12V power supply.
STATUS TERMINALS: These terminals are connected to the modules isolated internal status relay
contacts. These relay contacts are closed whenever the receptacle is on. These contacts will handle
up to .5 amps and can be connected to indicators as required.
1
2
3
4
5
6
7
8
9
10

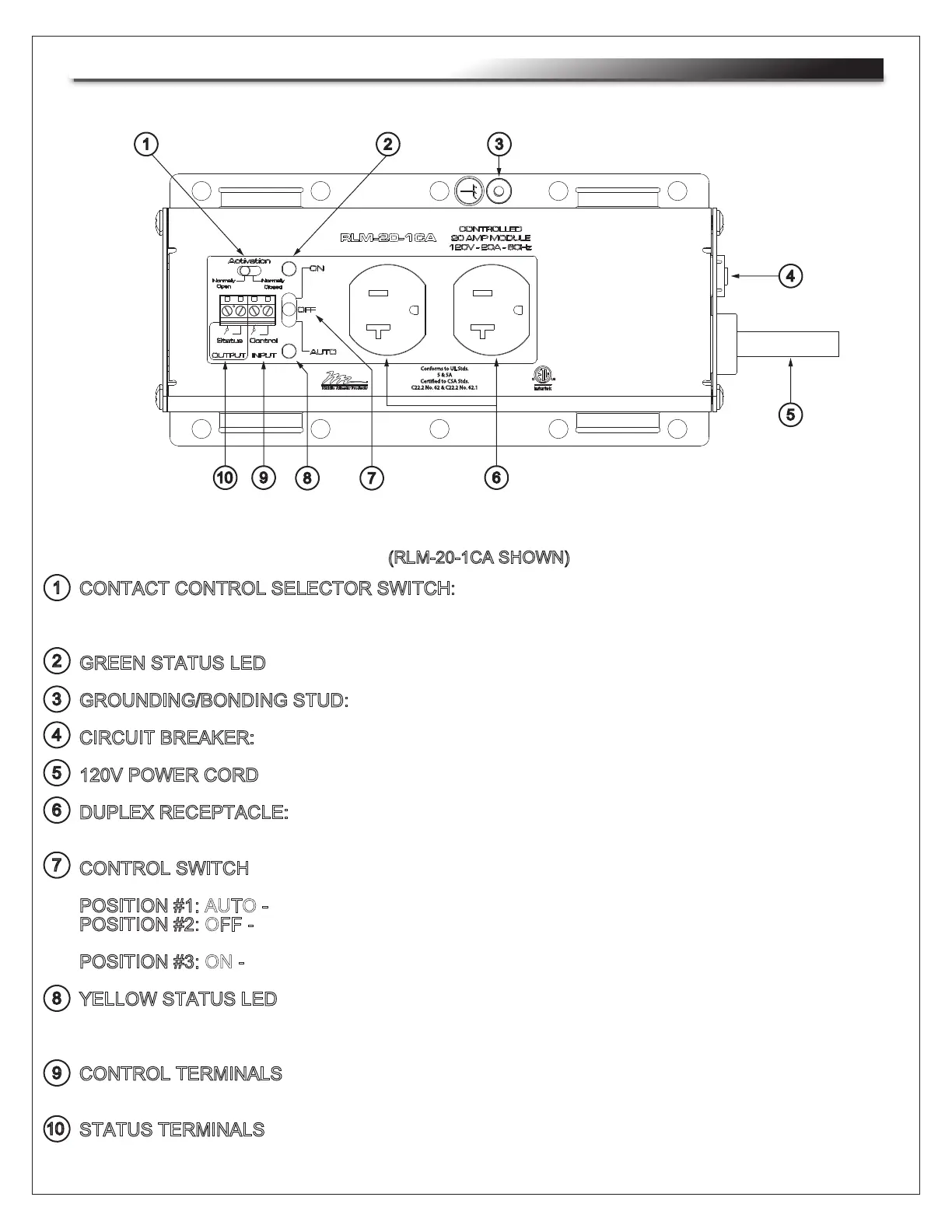

(RLM-20-1CA SHOWN)
1
2
3
4
5
69
10
8 7
Conforms to UL Stds.
5 & 5A
Certied to CSA Stds.
C22.2 No. 62 & C22.2 No. 62.1
FEATURES
