middleatlantic.com | middleatlantic.ca
what great systems are built on.
™
2
Part #
# of Circuit
Breakers
Outlet
Type
Cord
Termination
PDS-615R one 15 amp NEMA 5-15R
one
NEMA 5-15P
PDS-620R one 20 amp NEMA 5-20R
one NEMA
5-20P
PDS-2X315R two 15 amp NEMA 5-15R
two NEMA
5-15P
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

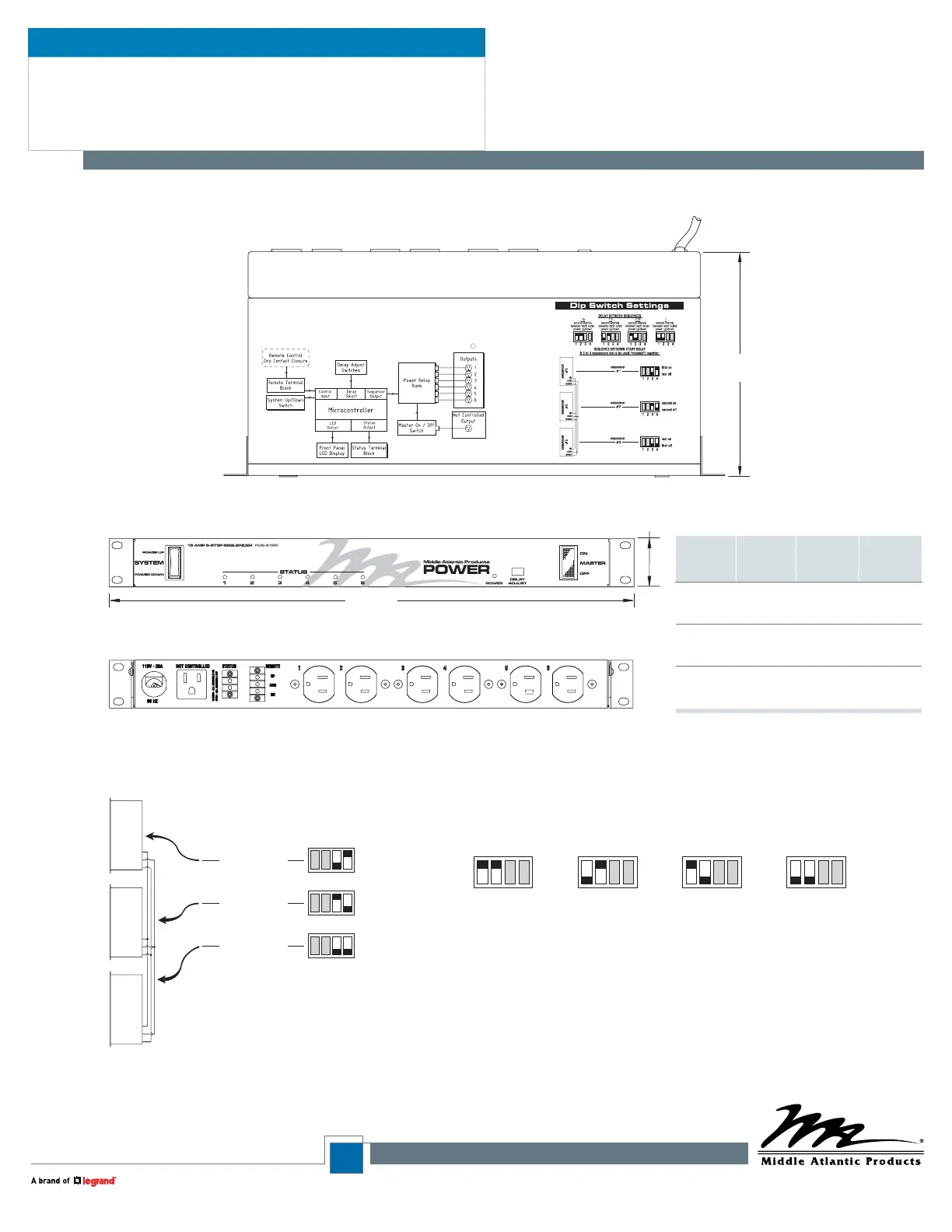

PDS Series
basic dimensions
PDS-615R shown
top view
front view
rear view
dip switch settings
8.75
[222]
1.75
[44]
sequencer #1
first on
last off
second on
second off
last on
first off
1234
1234 1234 1 234 1 234
1234
1234
sequencer #1
sequencer #2
sequencer #3
up
com
down
sequencer #2
up
com
down
sequencer #3
up
com
down
19.0 [482]
Maximum Derated Load (North America) for 15R Models: 12 Amps for 20R Models: 16 Amps
SEQUENCE UP/DOWN START DELAY
If 2 or 3 sequencers are to be used (“ chained”) together:
DELAY BETWEEN SEQUENCES
.75
second interval
between each outlet
power up/down
1.5
second interval
between each outlet
power up/down
2.25
second interval
between each outlet
power up/down
7
second interval
between each outlet
power up/down
1. Wire all rear terminal blocks in parallel.
2. Front System Power UP/DOWN switch is wired in parallel with rear remote terminal block.
When wired together as shown, pressing front System Power UP/DOWN switch on ANY
sequencer will initiate system sequencing.
3. If remote Power UP/DOWN is required, wire dry contacts in parallel.
4. Initiating system sequencing remotely: Sequencing can be initiated by either momentary
dry contact or maintained dry contact. Use of a maintained dry contact for system power
up will re-initiate sequence after power is restored from a power outage. When using
maintained (non-momentary) dry contact for remotely controlling system sequencing,
the front System Power UP/DOWN switches will be over-ridden.
NOTE: A flashing power (green) LED indicates system sequencing has begun.
