middleatlantic.com | middleatlantic.ca
what great systems are built on.
™
17.58 [447]
8.87
[225
]
13.37 [340]
19.00 [483]
1.74 [44]
13.37 [340]
.60 [15]
3.00
[76]

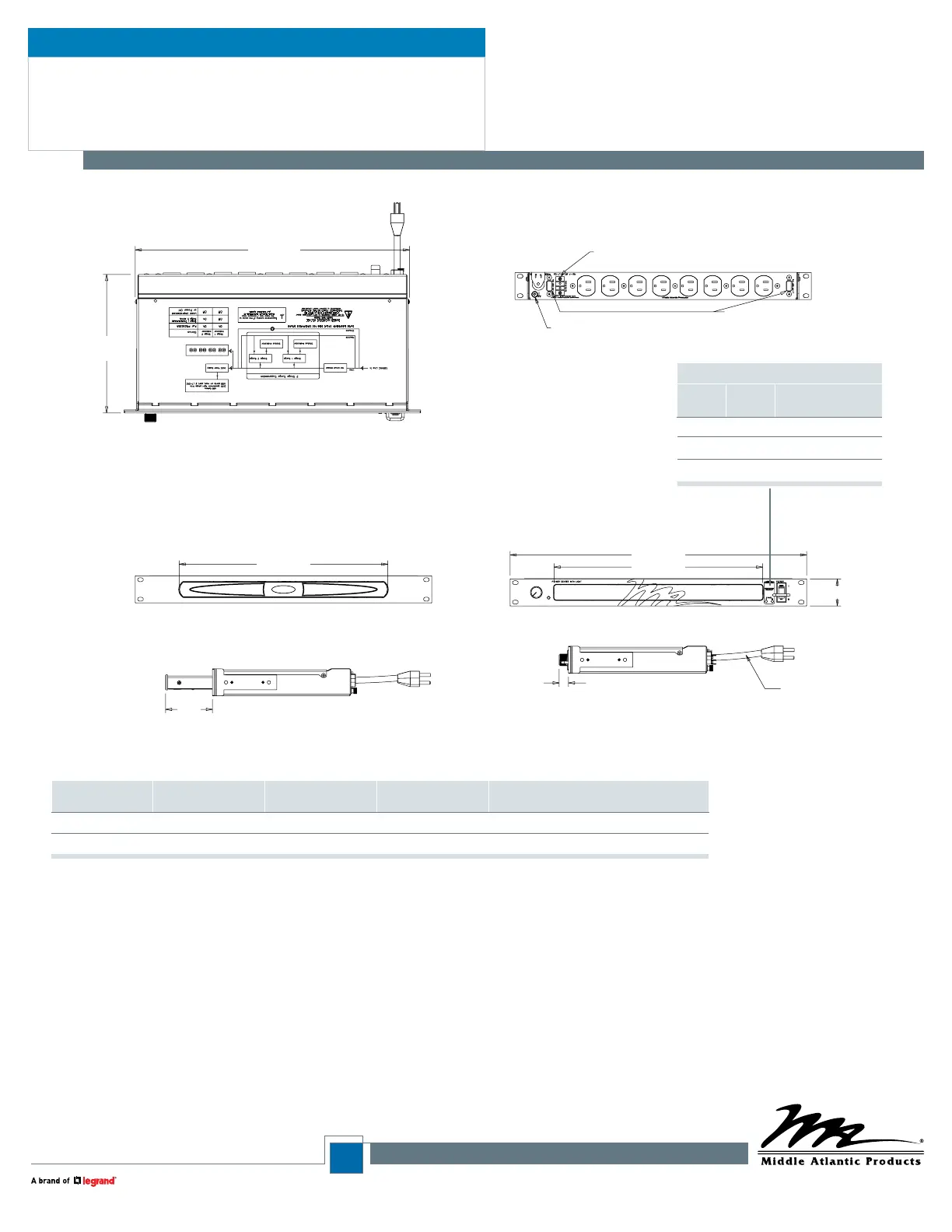

PDLT-815RVA and PDLT-815RV-RN dimmer for light and logo
is located under drawer, ref inst sheet I-00175
light drawer open
rear viewtop view
front view
PDLT-815RV-RN
front view
PDLT-815RVA
side view
10' linecord
NEMA-5-15P
(SignalSAFE™)
side view
electrical bonding point
usb ports for gooseneck light
Middle Atlantic part #LT-GN
surge status terminal block (PDLT-815RV-RN only)
Part# Front Power Switch Remote Notifier Dimmable Logo Finish
PDLT-815RV-RN yes yes no Flat black powder coat
PDLT-815RVA no no yes Black brushed anodized aluminum face
Surge Suppression Status
Stage 1
Indicator
Stage 2
Indicator Status
on on Full protection
off on
Stage 1 compromised
Stage 2 active
off off
Load unprotected
or power off
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]
PDLT
basic dimensions
Maximum Derated Load (North America):
15 Amp Models: 12 Amps
20 Amp Models: 16 Amps
Note: UL File # E204950
• Maximum allowable voltage: 125 VAC (RMS)
- Maximum continuous voltage differential applied between
line and neutral
• Peak impulse current (8/20 micro seconds):
- 30,000 Amps, one time
- 19,500 Amps, two times within 5 minutes
- 7,000 Amps, ten times within 2 minutes
- Maximum peak impulse current pulse as defined between
line and neutral
- Maximum multiple impulse current derated per spec
• Protection mode: Line to Neutral
• Maximum clamping voltage: 545 Volts @ 100 Amps
• Response time: Instantaneous (Less than 1 nanosecond)
• EMI/RF Suppression: More than 20 db
- Calculated line to neutral, 100 KHz to 1 MHz suppression
based upon nominal impedance
• Surge energy dissipation: 711 Joules (10 / 100 micro seconds)
• 2 Stage surge suppression with health indicators
• Surge suppression circuit does not contaminate ground
surge suppression & EMI filter specifications (PDLT-815RV / PDLT-815RVA)
