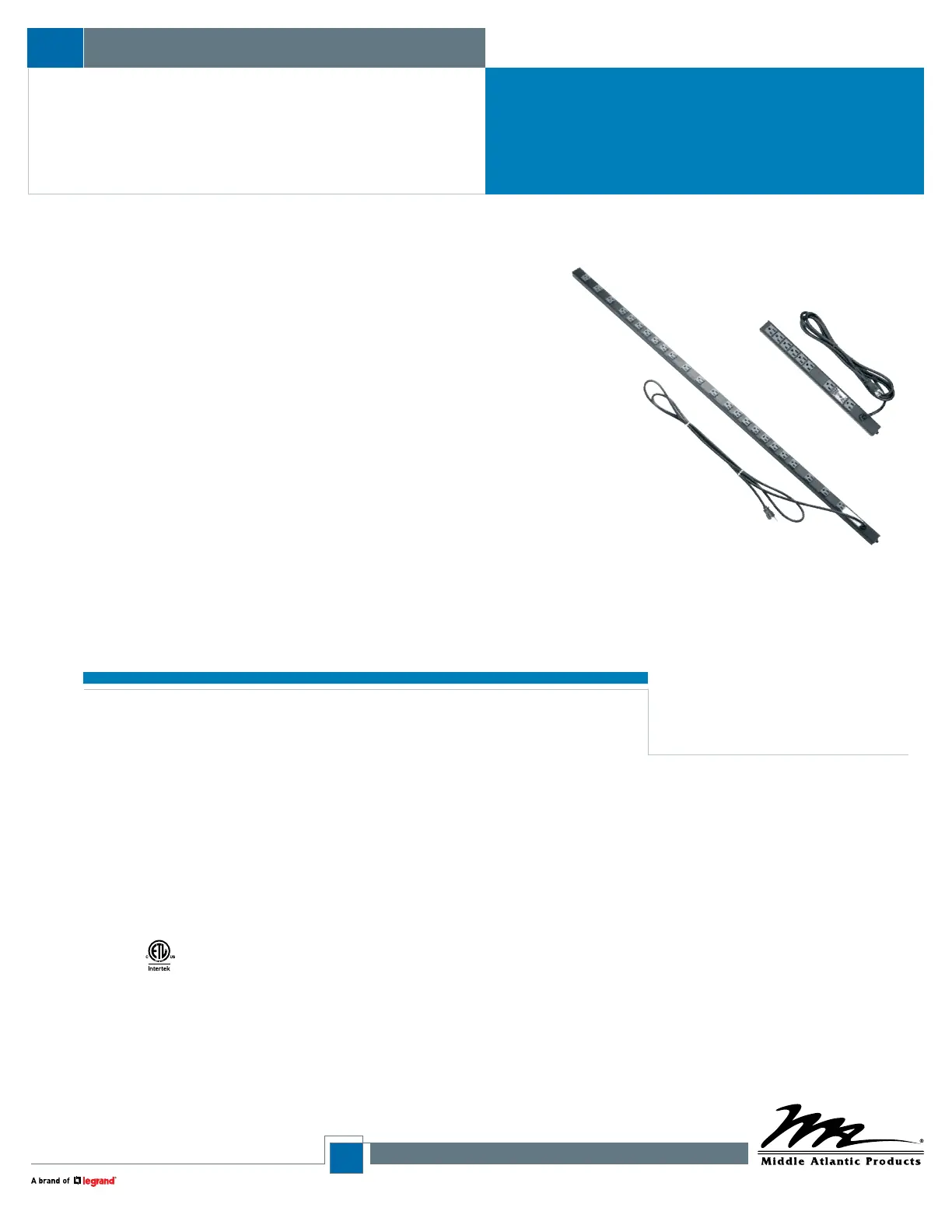

PD Series

slim power strips

high density power strips feature a slim,

low-proﬁle design and staggered outlets

to accommodate plug-in power supplies

features:

• UL Listed and CSA certiﬁed (PD-2420SC-NS UL Listed only)

• (1) 15 or 20 amp circuit depending on model

• Includes SignalSAFE™ power cord terminated with NEMA 5-15P

or NEMA 5-20P plug depending on model

• Up to 24 outlets depending on model

• Outlets spaced to accommodate plug-in power supplies

• Circuit breaker or MOV surge & EMI ﬁlter & breaker protected,

depending on model

• Mounting hardware included

• Slim low-proﬁle design requires less space

• Gray outlets easy to see in rear of enclosures

• Lightweight anodized al

uminum chassis

* For additional Vertical Power Strips, please see A&E Spec # 96-938

High density slim power strip shall be Middle Atlantic Products model # PD-__-__ with __ outlets

and __ amps (refer to chart). Slim power strip shall be__” long x 1.25” deep x 1.6” wide and shall

have gray __ NEMA ___ outlets (refer to chart) in unique spacing pattern that allows up to __

plug-in power supplies (refer to chart). Slim power strip includes __ amp circuit breaker protection

and mounting hardware (refer to ch

art). Terminated with ___ (refer to chart) SignalSAFE™ power

cord with NEMA ___ plug (refer to chart). Grounding and bonding stud shall be 1/4 - 20 threaded.

Slim power strip shall be ETL listed to UL standards 1149 and 1363 in US and to CAN/CSA standard

C22.2 #8 and C22.2 #21 in Canada. Slim power strip shall be manufactured by an ISO 9001

registered company. Slim power strip shall be warrantied to be free from defects in material or

workmanship under normal use and conditions for a period of 3 years.

Customizable speciﬁcation clips available at middleatlantic.com

speciﬁcations:

options:

• Model # PB-XS, rackmounting bracket shall mount

any 8 outlet power strip (PD-815SC, PD-815SC-NS)

between rackrail of any EIA compliant 19” rack.

Includes cable management tie points

• Model # PB-5A mounting brackets shall accommodate

the mounting of vertical power strips to rackrail of any

rack

• Model # PB-DWR mounting bracket shall accommodate

the mounting of vertical power strips to rear rackrail of

Middle Atlantic Products DWR & SR series wall racks

PD-2415SC-NS

PD-815SC-NS
