INSTALLING THE LEVER LOCK BACKPAN OPTION (CONTINUED)
!
!
2. Insert the side of the Lever Lock backpan plate (C) without the clip into the brackets (A) first. Then
install the side with the clip until it clicks into place. (FIGURE C)

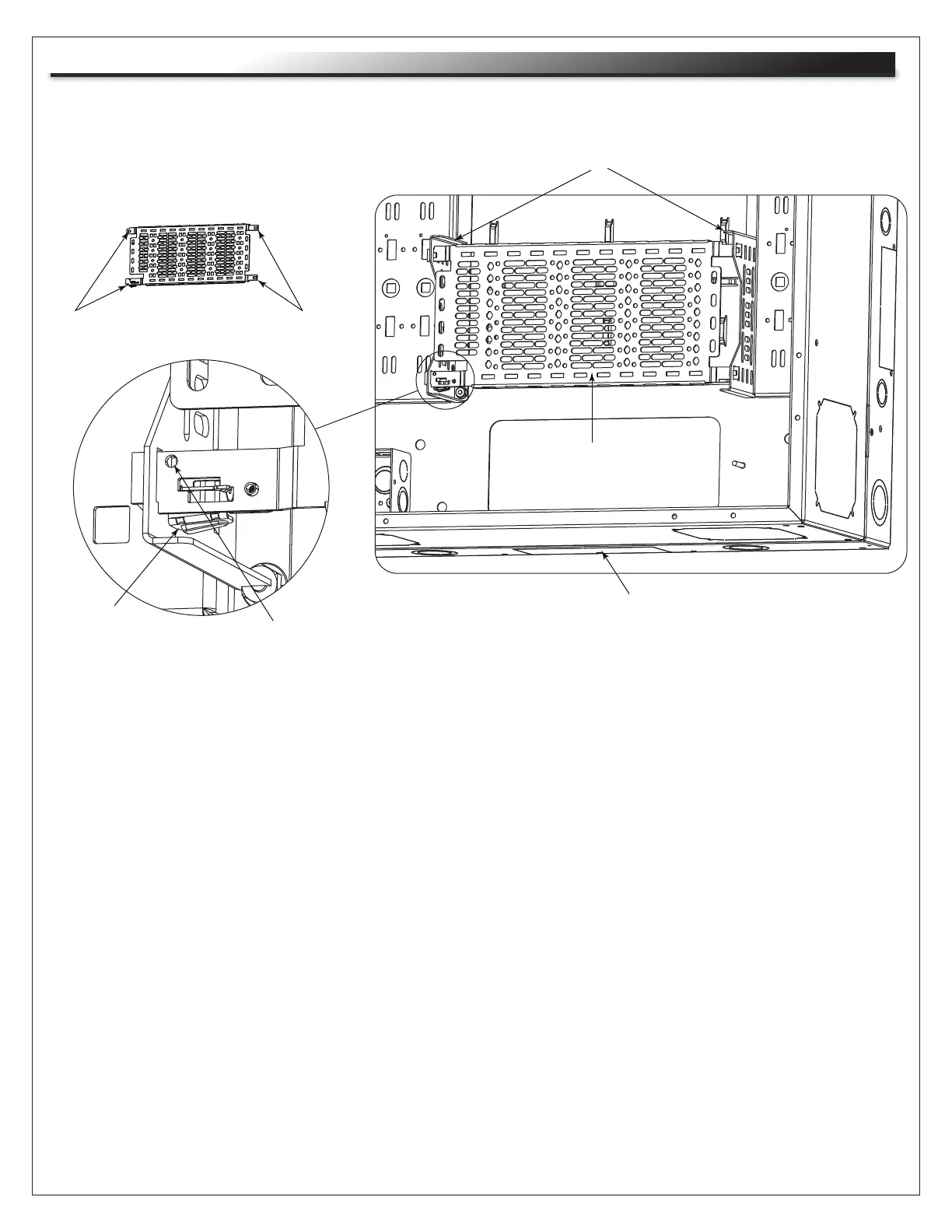

FIGURE C
Bottom
Clip
Side with
clip
Side without
clip
A
C
NOTE: Install plastic securing
rivet (D) into hole to secure
the clip more permanently, if
desired.
NOTE:
• The Lever Lock backpan plate may be installed on the brackets at different depths. All 4 corners of
the Lever Lock backpan plate must be inserted into the brackets at the same depth in order to function
correctly.
• (20x) Lever Lock plate washers (E) are provided for equipment mounting convenience.
