Page 4

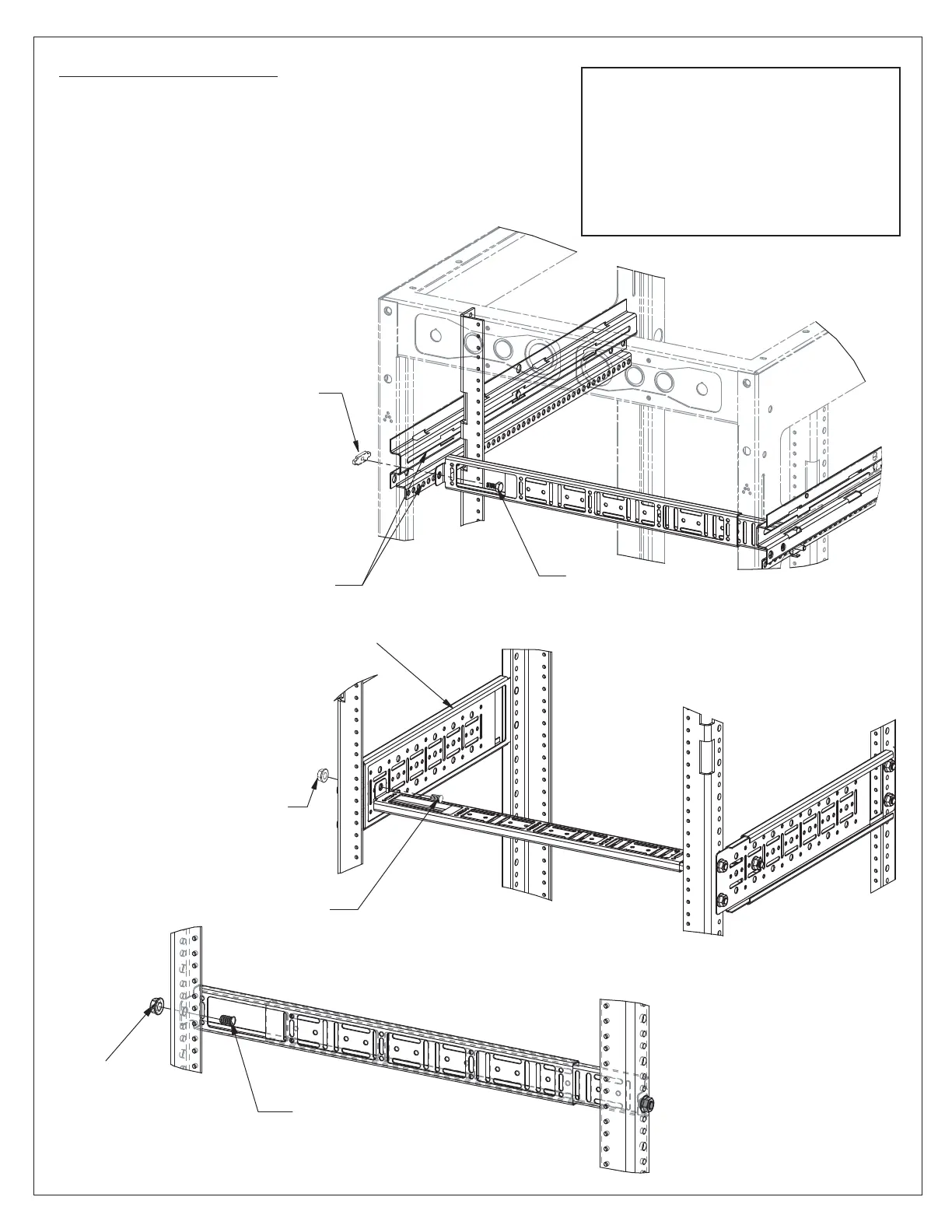

FIGURE D
(Mounted flat)
INSTALLING LBH-1930-T
1) Horizontal lacer bars can be mounted flat or upright with
included hardware in the following configurations:
- Between rackrail brackets. (FIGURE C)
- Between LBFR Series front to rear lacer bars.
(FIGURE D)
- Between rackrail. (FIGURE E)
HINT:
When installing LBH-1930-T
onto rackrail in a SLIM 5 or AXS
Series rack, insert the PEM studs
through the rackrail so that they
point toward the inside of the
rack. Then install nuts.
1/4-20 SLIDING NUT
(SERRATED SIDE FACES OUT
FROM INSIDE OF BRACKET)
Install horizontal lacer bar onto
rackrail bracket using fixed holes
or the adjustable slot
1/4-20
BOLT
FIGURE C
(Mounted upright)
LBFR SERIES
LACER BAR
5/16-18
FLANGE NUT
5/16-18
PEM STUD
5/16-18
FLANGE NUT
5/16-18
PEM STUD
FIGURE E
(Mounted upright)
