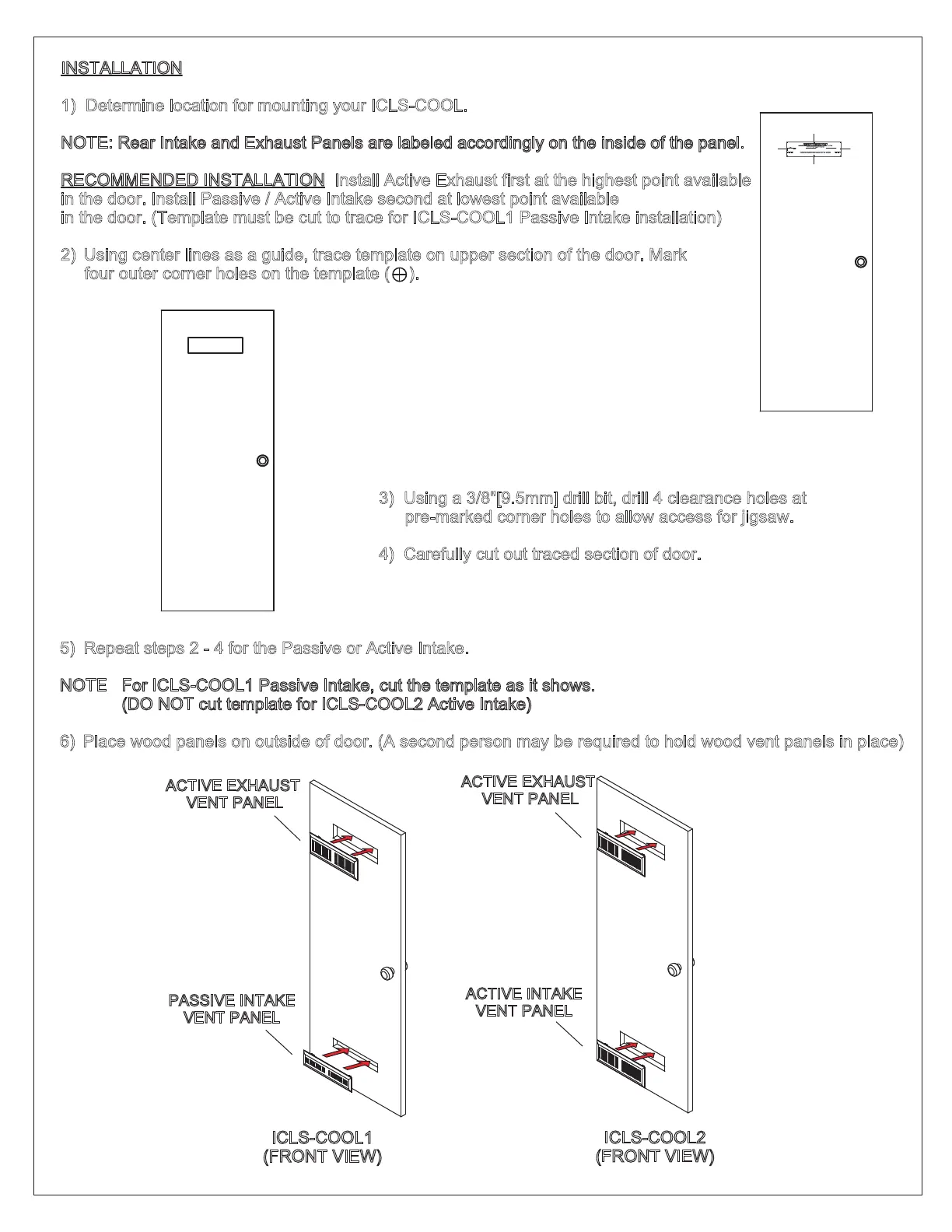

INSTALLATION
1) Determine location for mounting your ICLS-COOL.
NOTE: Rear Intake and Exhaust Panels are labeled accordingly on the inside of the panel.
RECOMMENDED INSTALLATION: Install Active Exhaust first at the highest point available
in the door. Install Passive / Active Intake second at lowest point available
in the door. (Template must be cut to trace for ICLS-COOL1 Passive Intake installation)
2) Using center lines as a guide, trace template on upper section of the door. Mark
four outer corner holes on the template ( ).
3) Using a 3/8"[9.5mm] drill bit, drill 4 clearance holes at
pre-marked corner holes to allow access for jigsaw.
4) Carefully cut out traced section of door.
5) Repeat steps 2 - 4 for the Passive or Active Intake.
NOTE: For ICLS-COOL1 Passive Intake, cut the template as it shows.
(DO NOT cut template for ICLS-COOL2 Active Intake)
6) Place wood panels on outside of door. (A second person may be required to hold wood vent panels in place)
ICLS-COOL1
(FRONT VIEW)
ICLS-COOL2
(FRONT VIEW)
PASSIVE INTAKE
VENT PANEL
ACTIVE INTAKE
VENT PANEL
ACTIVE EXHAUST
VENT PANEL
ACTIVE EXHAUST
VENT PANEL
