Page 5

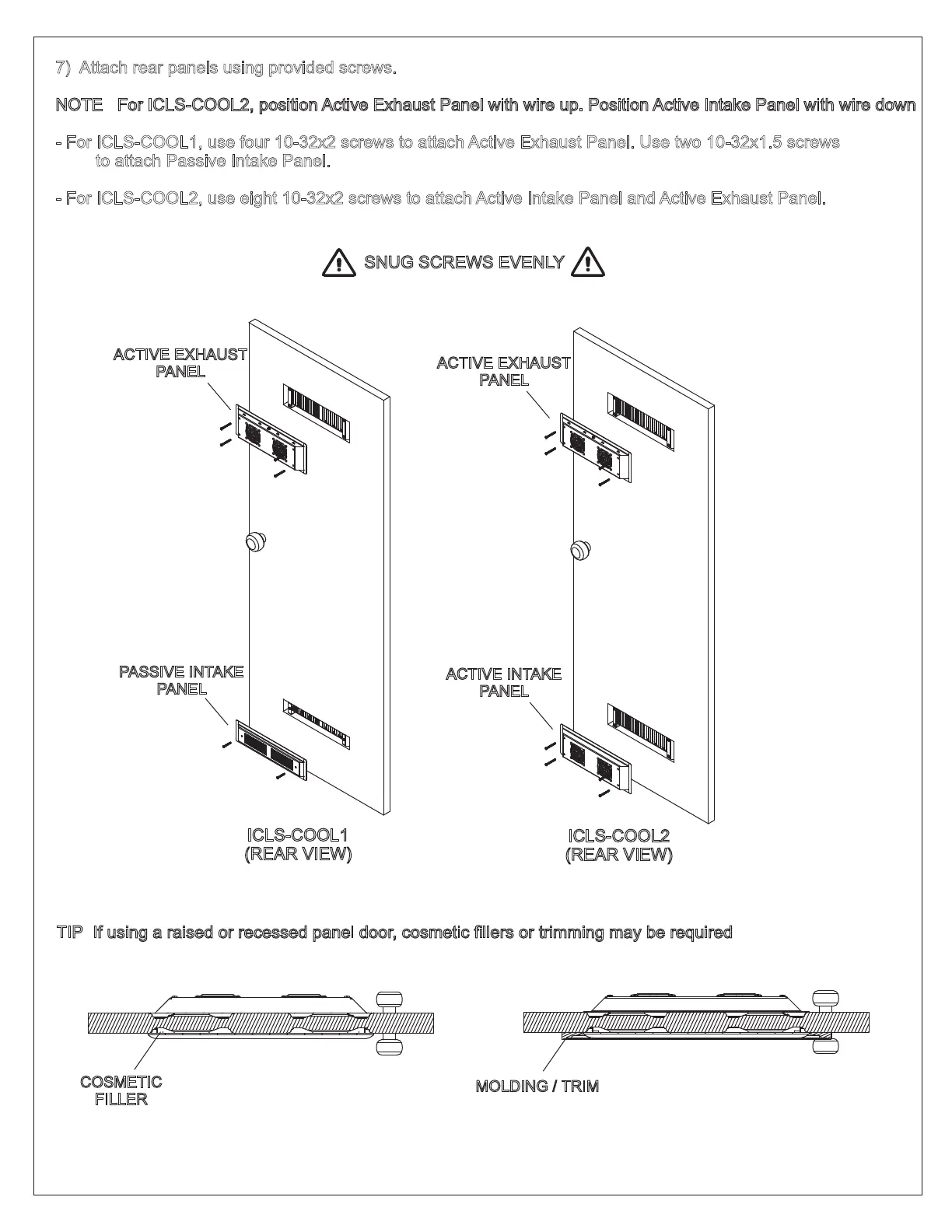

7) Attach rear panels using provided screws.
NOTE: For ICLS-COOL2, position Active Exhaust Panel with wire up. Position Active Intake Panel with wire down
- For ICLS-COOL1, use four 10-32x2 screws to attach Active Exhaust Panel. Use two 10-32x1.5 screws
to attach Passive Intake Panel.
- For ICLS-COOL2, use eight 10-32x2 screws to attach Active Intake Panel and Active Exhaust Panel.
SNUG SCREWS EVENLY
ICLS-COOL1
(REAR VIEW)
ICLS-COOL2
(REAR VIEW)
TIP: If using a raised or recessed panel door, cosmetic fillers or trimming may be required.
COSMETIC
FILLER
MOLDING / TRIM
ACTIVE EXHAUST
PANEL
ACTIVE EXHAUST
PANEL
PASSIVE INTAKE
PANEL
ACTIVE INTAKE
PANEL
