Compatible Middle Atlantic power strip options can be mounted inside the trim (C) with the included
hardware. This simplifies cable management by requiring no additional accessories.
NOTE: Reference which power strip models are compatible with your specific size enclosure at
www.legrandav.com.
INSTALLING POWER STRIPS
1. Use power driver and #2 Phillips bit to remove
pre-installed flat head screw. (FIGURE L)
2. Use driver, phillps bit and the flat head screw to
secure each power mounting clip to the trim.
NOTE:
• Power strip sold separately. Power mounting clip(s)
provided with strip.
• Reference the compatible power strip models for your
specific size enclosure at www.legrandav.com
to determine whether yours requires the use of 1 or 2
power mounting clips.
• Verify your power driver torque is on the lightest setting
and only increase as necessary.
2. Use a rubber mallet and gently tap your power strip
into the power mounting clip(s), if needed.
TIP: To remove your power strip from the mounting clip(s),
carefully wedge a #2 flat head screwdriver between the
side of your power strip and mounting clip, and gently pry
the strip from the clip(s) as shown. (FIGURE M)

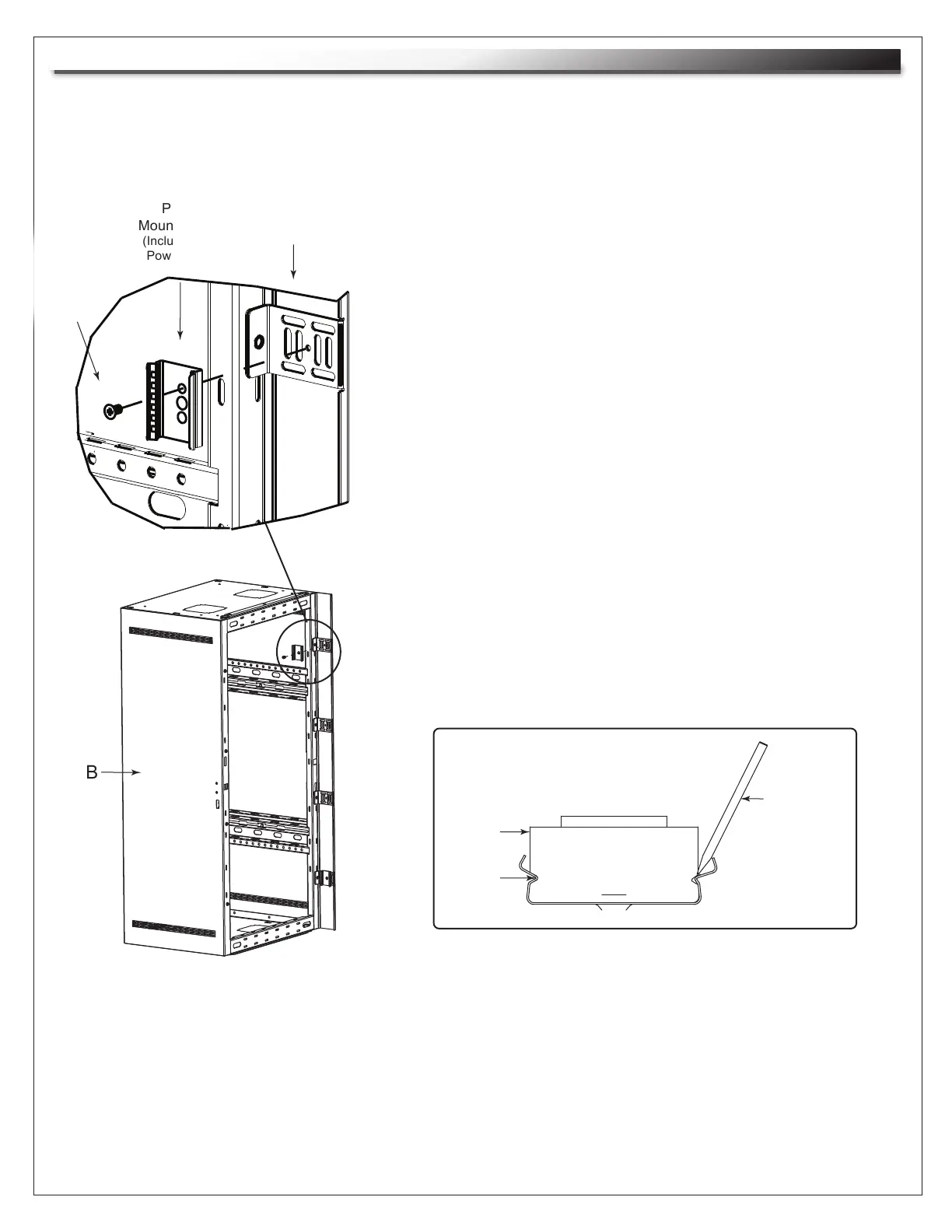

FIGURE L
Power
Mounting Clip
(Included with
Power Strip)
C
NOTE: Top view of power strip,
clip, and enclosure trim shown.
FIGURE M
Power
Strip
Flat Head
Screwdriver Tip
Power
Mounting
Clip
B
D
(Use pre-in-
stalled screws
found on trim)
