4. Remove security clips holding pivot pins in place in the top and bottom of
the backpan (A). (FIGURE D)
NOTE: When installing front door, the factory rackrail
setback will be 1½” (38 mm) to the inside of the door.
The lock and handle located at the center of the door has an
additional setback of ½” (13 mm).
Please adjust your rackrail accordingly before installing
equipment.
10. Use power driver,
5/16” socket, and the
screws pre-installed
on the back of the center
section (B) to install trim
(C) on the pivot side of
the center section as
shown. (FIGURE G)
5. Use hand to loosen and remove top
and bottom pivot pins. (FIGURE E)
NOTE: Use slip joint pliers to
carefully remove the pins, if necessary.
6. Lift the center section (B) and place the bottom glide strip on the
edge of the backpan (A). Position the center section to engage
the lower pivot bushing on the backpan. (FIGURE F)
7. Pivot top of center section into backpan and align with upper
pivot bushing. (FIGURE F)
8. Use hand to insert and fully tighten pivot pin into upper bushing,
and then back out one turn. Repeat for lower bushing with
second pivot pin. (FIGURE E)
9. Re-install the security clips to prevent unintentional pivot pin
removal. (FIGURE D)
NOTE:
• If using power driver, verify the torque is on the lightest setting and only
increase as necessary.
• Thread cutting screws are provided on both sides of the center section
for convenience. Leave unused thread cutting screws in place on
opposite side.

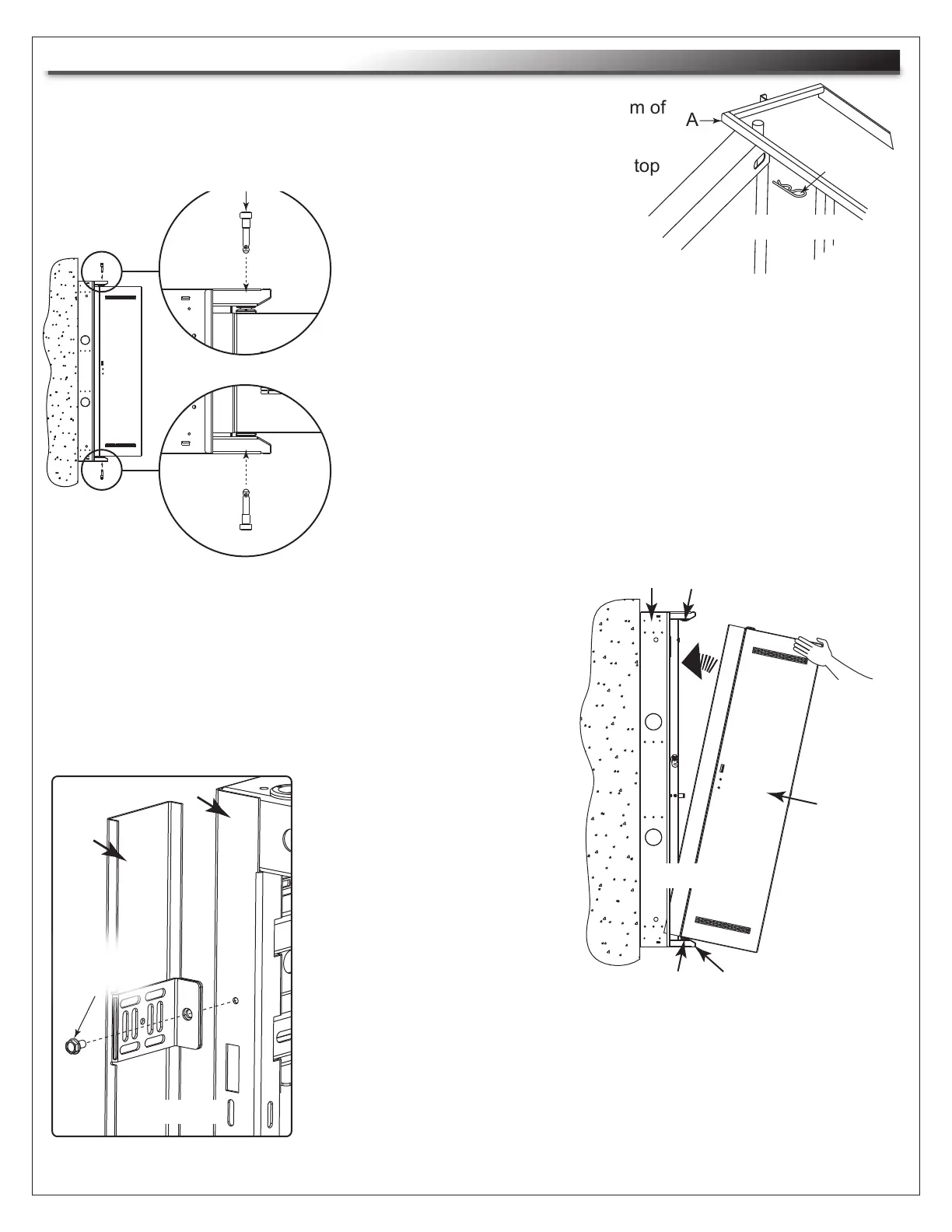

INSTALLING BACKPAN TO WALL (CONTINUED)
FIGURE E
Pivot Pin
Upper Pivot Bushing
B
B
C
A
Glide Strip
FIGURE F
Place
hand here
to pivot
into place.
Upper Pivot
Bushing
FIGURE G
Security Clip
FIGURE D
A
Use
pre-installed
screws found
on trim
NOTE: Side
view shown.
