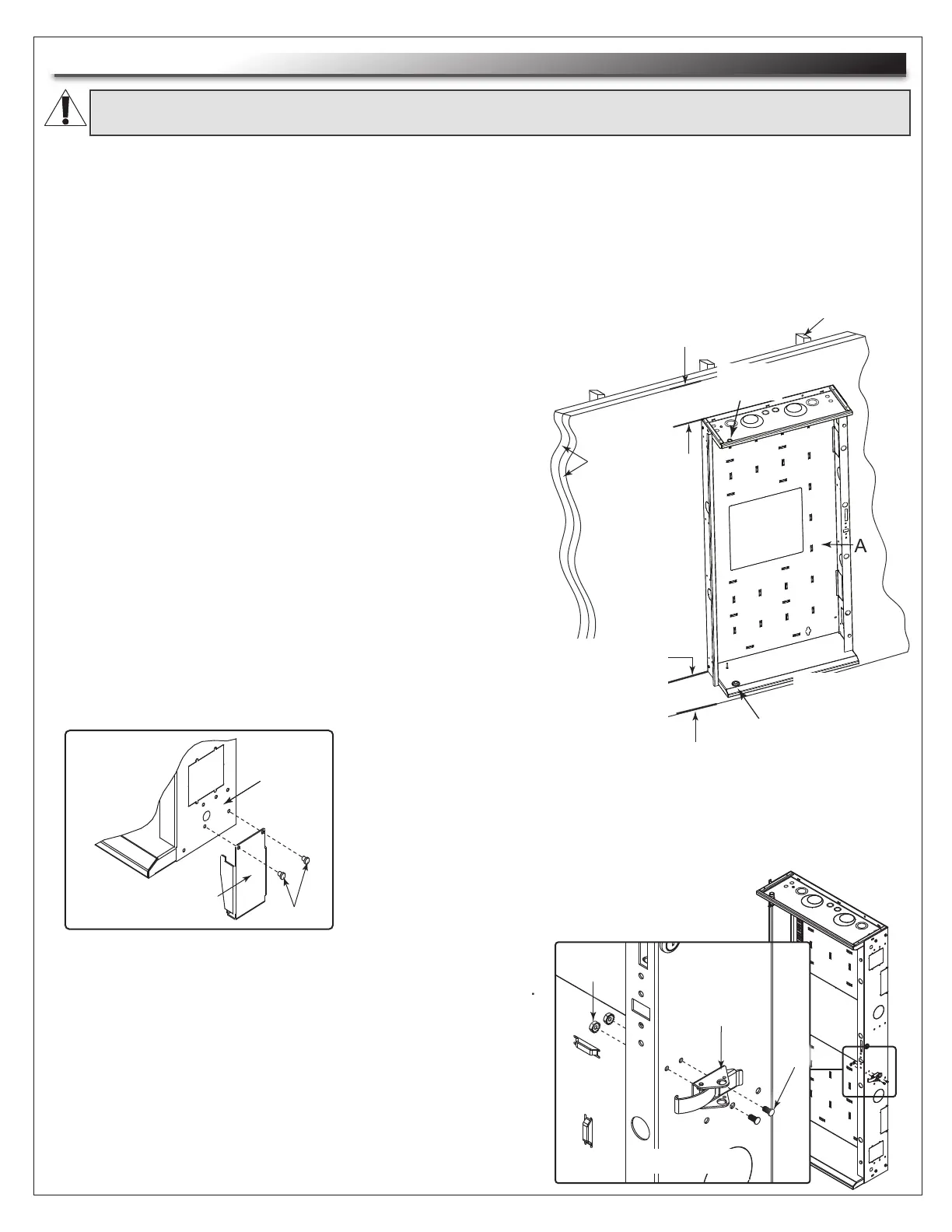

INSTALLING BACKPAN TO WALL
CAUTION: The backpan must be installed plumb and level for proper operation.
ATTENTION: La plaque profilée doit etre aplomb et de niveau pour un fonctionnement.
1. Use a power driver, socket, and 3/8” diameter 2” (51
mm) minimum length lag bolts, standard flat washers
(lag bolts and washers not provided) to mount your
backpan (A) to the wall as shown. (FIGURE A)
NOTE:
• Your backpan must have a minimum of 4” (102 mm)
clearance on the top (to ceiling) and bottom (to floor).
• Standard flat washers must be installed directly under
the lag bolt heads.
• For the number of mounting holes required, see the
“Weight Rating” table on page 3. All of the mounting
holes specified for your enclosure model must be used.
• Verify your power driver torque is on the lightest setting
and only increase as necessary.
NOTE: A left or right rack swing direction is contingent upon the location of the pivot bushings.
TIP: Determine the desired swing direction of the rack before mounting the backpan onto the wall.
NOTE: The backpan (A) of all DWR enclosures must be screwed to studs using the first step of this
topic, except for DWRs up to 26” (660 mm) overall depth, which
may be mounted to studs or a concrete wall using appropriate
fasteners (not provided).
Stud
FIGURE B
Screws
Foot
A
FIGURE A
NOTE: A minimum
of 4” (102 mm)
clearance is required.
½” Drywall
A
FIGURE C
2. Use power driver and a #2 Phillips bit to remove the
screws on both sides of the backpan bottom as shown.
(FIGURE B)
3. With the feet in position, reattach the screws.
4. Use driver, 11/32” socket, (2x) 8-32 studs (D), and (2x)
8-32 nuts (F) to attach the latch back (E) to the back-
pan (A) as shown. (
FIGURE C
)
D
E
F
FOR 24 and 35 RU DWRs ONLY: Feet are provided and should
be used when mounting in close proximity to the floor; approx. 4”
(102 mm) from the floor. By doing so, the feet assist in reducing
the weight of the enclosure from the mounting hardware, especially
when the rack is heavily loaded.
Pivot
Bushing
Pivot
Bushing
NOTE: Left-hand
rack swing shown.
NOTE: A
minimum of
4” (102 mm)
clearance is
required.
