UNDERSTANDING BLOWER OPERATION
Page 8
NOTE:
• Position probe near hottest equipment.
• The blower fan turns on at 87°F (30.5°C) and runs
proportionately.
• The blower fan speed increases with temperature from 87°F
(30.5°C) to 95°F (35°C).
• At 95°F (35°C) and above, the blower fan runs at full speed.
• The blower fan stops running at 85°F (29.4°C).

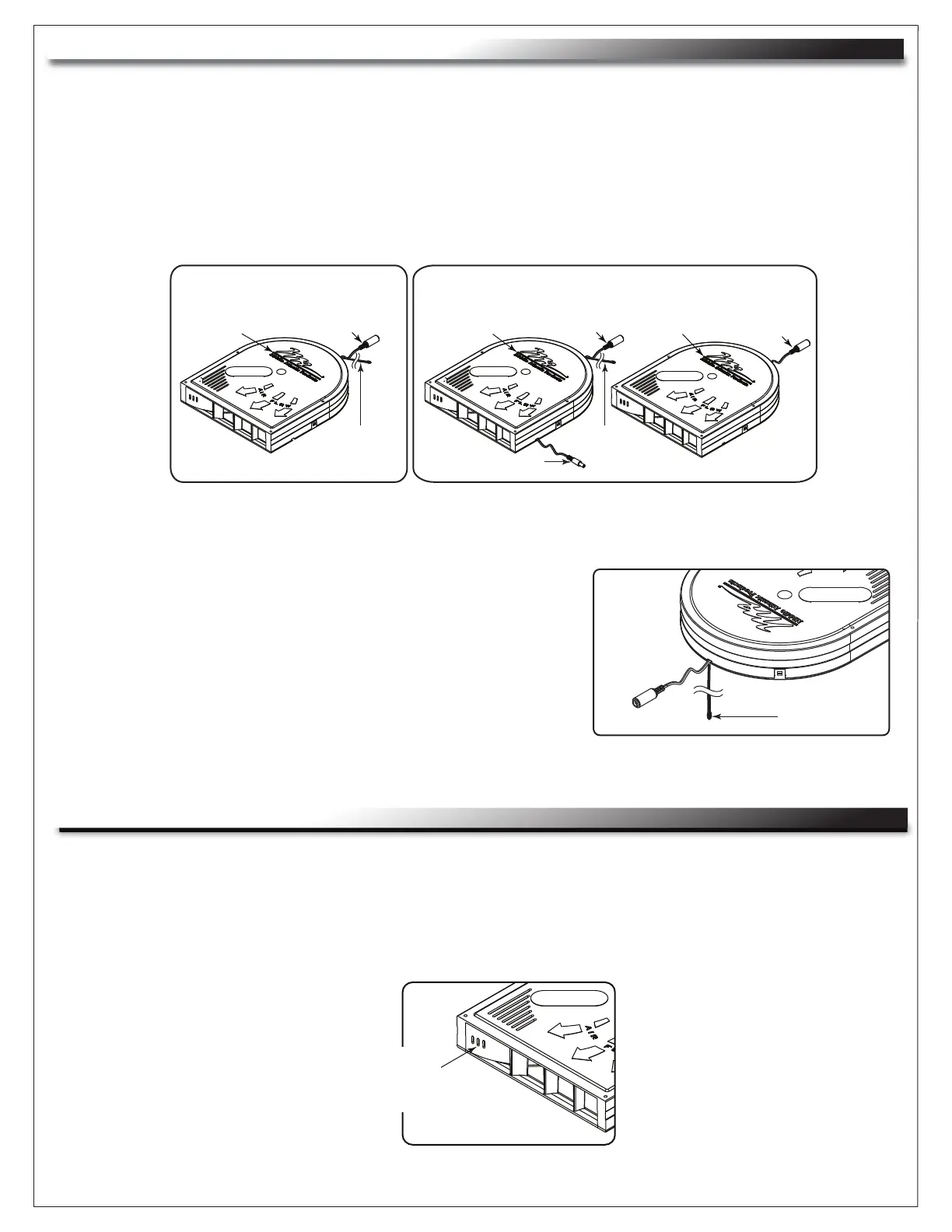

FOR 1-BAY MODELS: A blue LED illuminates from inside the vents on the front of the blower when
the unit is receiving power. (FIGURE C)
FOR 2- AND 3-BAY MODELS: A blue LED illuminates from inside the vents on the front of the master
blower when the system is receiving power.
Temperature
Probe
FIGURE C
With power, a blue LED can
be seen through vents on
front of blower (A or D).
FIGURE B
VIEWING THE BLUE LED POWER INDICATOR ON BLOWER
NOTE: Blowers isolated for clarity.
FIGURE A
FOR 2-BAY AND 3-BAY MODELS
Blower
(Remote)
E
Blower
(Master)
D
Power
Lead
Interconnect
Lead
Temperature
Probe
Interconnect Lead
FOR 1-BAY MODELS
Blower
A
Temperature
Probe
Power
Lead
FOR 1-BAY MODEL ONLY: Only one master blower is pre-installed on top of credenza frame.
(FIGURE A)
FOR 2-BAY AND 3-BAY MODELS ONLY: A master blower and remote blower(s) are pre-installed on
top of credenza frame. Only the remote blower has an interconnect lead coming out of the rear (and is
powered by the master).
