INSTALLING LEVER LOCK OPTION INSIDE SLIDE-OUT RACK (CONTINUED)

5. Repeat the process to install the second Lever Lock adapter bracket (K) in the same position as the

first, but on the opposite side of the rack. (FIGURE L)

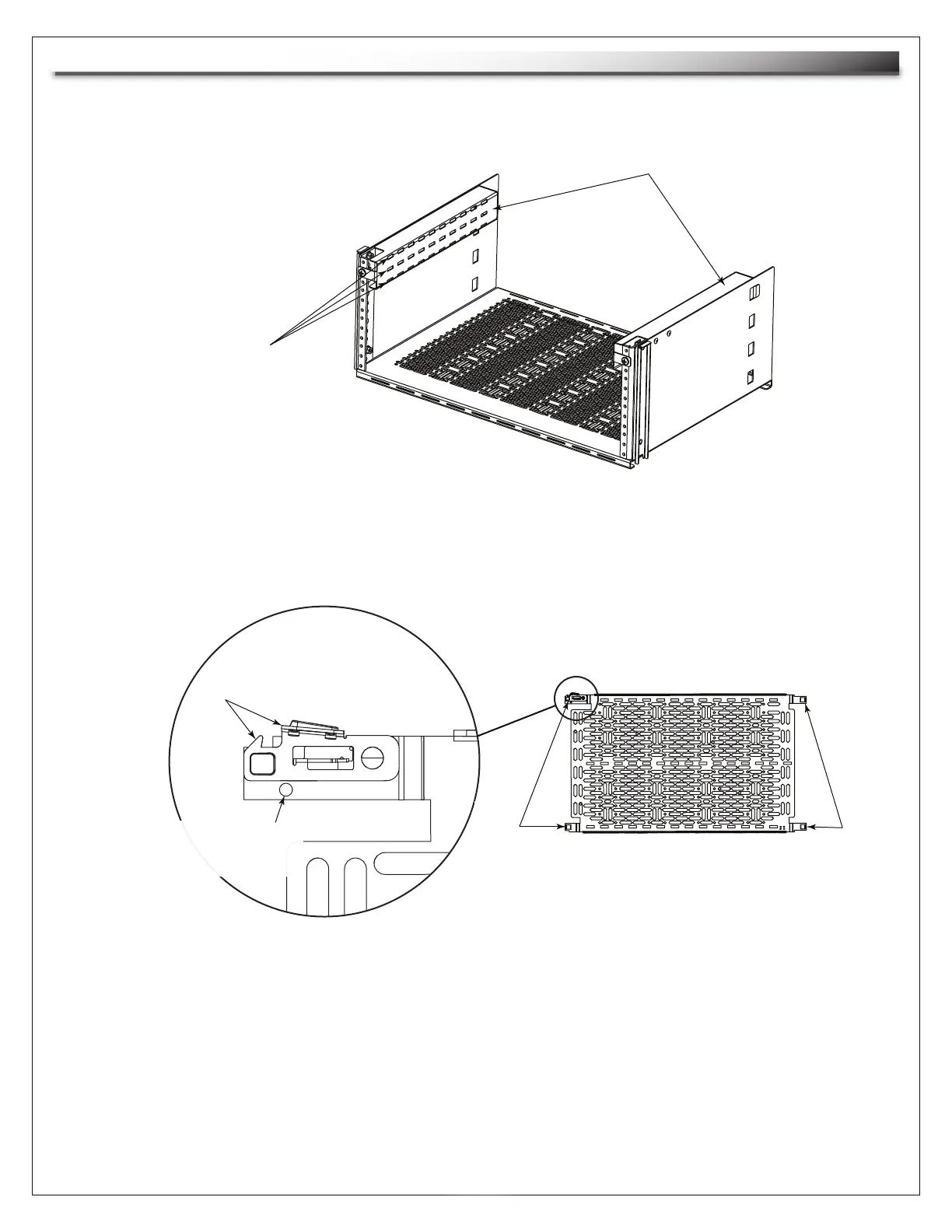

FIGURE L

NOTE: There are

3 different depths

available on the

Lever Lock

adapter brackets.

NOTE:

• The Lever Lock vertical channel or plate may be installed on the brackets at different depths. (FIGURE L)

• All 4 corners of the Lever Lock vertical channel or plate must be inserted into adapter brackets at the

same depth in order to function correctly.

• Use (20x) washers (R) for equipment mounting convenience.

6. Attach 2” Lever Lock vertical channel (M) or 10” Lever Lock vertical plate (N, 10” Lever Lock vertical

plate shown) by installing the side without the clip into one of the adapter brackets first. Then, install

the side with the clip into the other adapter bracket until it clicks into place. (FIGURE M)

FIGURE M

Clip

NOTE: 10” Lever Lock vertical

plate (N) shown.

NOTE: Install a securing rivet

(P) into hole to secure the clip more

permanently, if desired.

Side

without

clip

Side

with

clip

Page 11
