curved doors
beveled doors
22.0 [559]
A
110º
110º
1.58 [40.1]
clearance from front
of rail to curved door
frame surface
2.6 [66] ref.
.87 [22.1] ref.
2.75 [69.9]
(17.46 [443.6])
inside dim. between
door frame
A
21.85 [555]
BFD-XX 2.79 [71]
BVFD-XX 2.74 [70]
BPFD-XX 2.60 [66]
BPFD-45
BFD-45
popout
latching
and locking
handle
BVFD-45
clearance from front of
rail to inside of door
open direction pivot point
insert material:
plexi or perf.
popout latching and
locking handle
Solid Door Vented Door Plexi Door Rackspaces
A
Height
BFD -19 BV FD-19 BPFD-19 19 36.22 [920]
BFD-25 BVFD-25 BPFD-25 25 46.72 [1187 ]
BFD-38 BVFD-38 BPFD-38 38 69.47 [1765]
BFD-41 BVFD -41 BPFD-41 41 74.72 [18 98]
BFD-45 BVFD-45 BPFD-45 45 81.72 [2076]
Vented Door Plexi Door Rackspaces
A
Height
VFD -19A PF D -19A 19 35.97 [913]
VFD-25A PFD-25A 25 46.47 [118 0]
VFD-38A PFD-38A 38 69.22 [1758]
VFD-41A PFD-41A 41 74.47 [18 91]
VFD-45A PFD-45A 45 81.47 [2069]
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

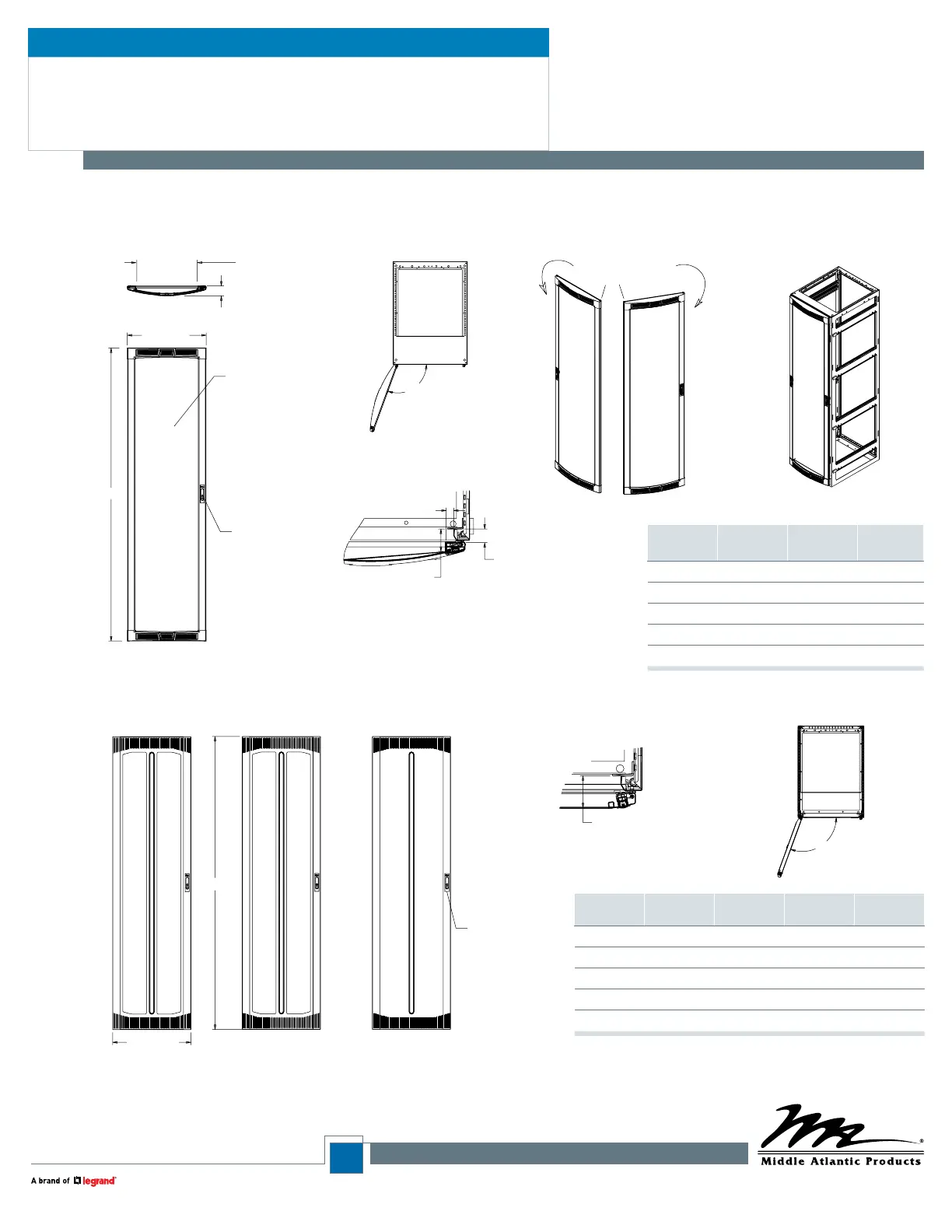

BGR Series
curved & beveled doors basic dimensions
