Hex Head
Screws (2)
10-32 x 1/4”
Page 7
ROUGH-IN PAN ASSEMBLY

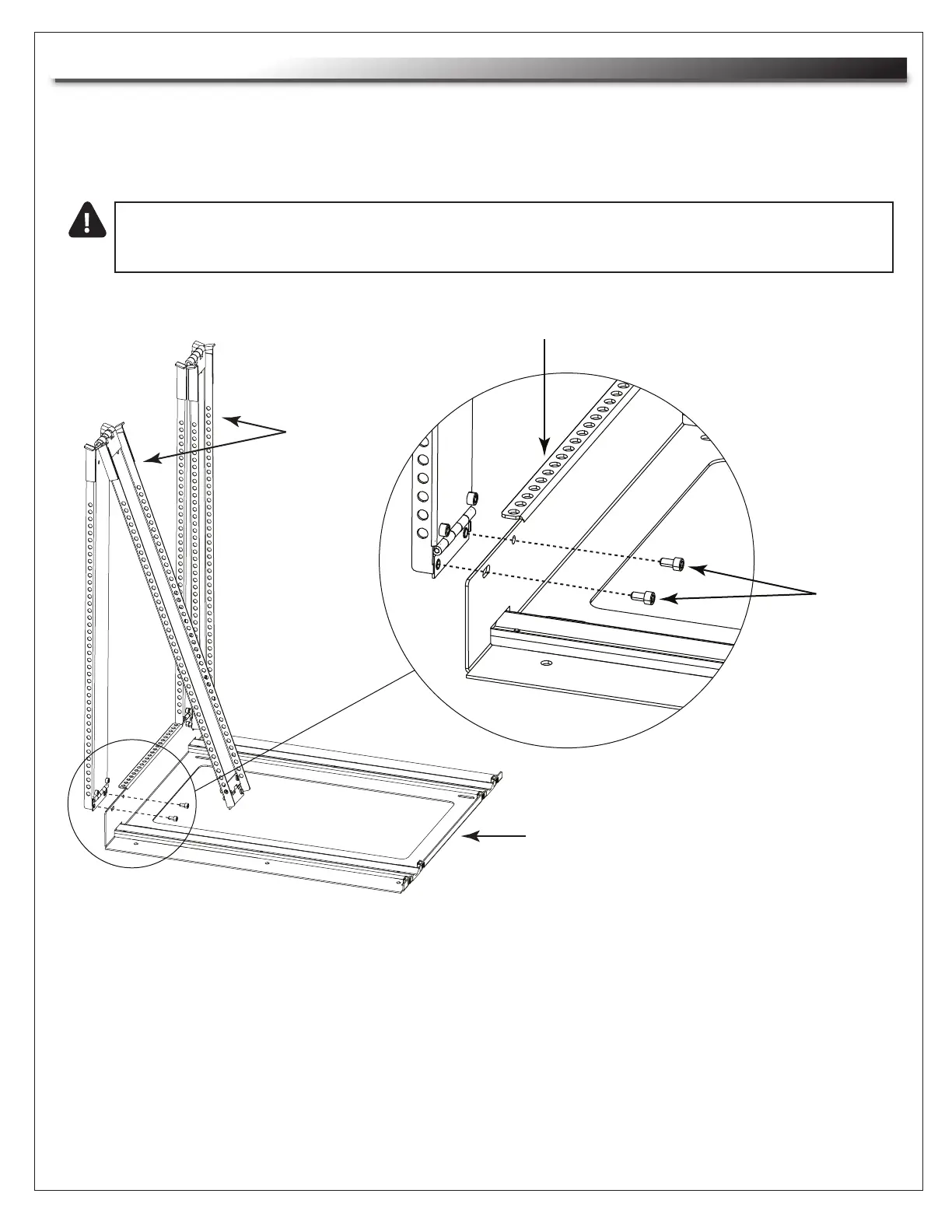

1) Install both cable carriers to rear flange of rough-in pan using (2) 10-32 x 1/4 hex head screws per
cable carrier. (FIGURE A)
NOTE: Installation hardware is provided with cable carrier kit.
FIGURE A
WARNING! Cable Carriers are an integral part of this system and must be installed for the safe
operation of this product to prevent the system from tipping and sliding off of tracks. Failure to install
cable carriers can result in serious damage to equipment and/or risk of injury .
Rear Flange
Cable
Carriers
Rough-In Pan
2) Fold up both cable carriers and tie back with rubber bands or twine for ease of installation.
1) Construct rough opening and base.
2) Assemble frame.
3) Install cable carriers / rough-in pan.
4) Install service stand.
5) Attach frame to tracks and cable
carriers.
6) Assemble leash.
7) Tie cable to carriers.
8) Secure rack in millwork.
