RACK ASSEMBLY (Continued)
3) Install (4) 10-32 Hex Head screws through top and bottom frames into each rackrail. (FIGURE D)
4) Install (2) squaring panels on front and rear of assembly using (4) 10-32 x 1/4” screws. Locate
squaring panels at the mid-point of rackrail assembly. (FIGURE D)

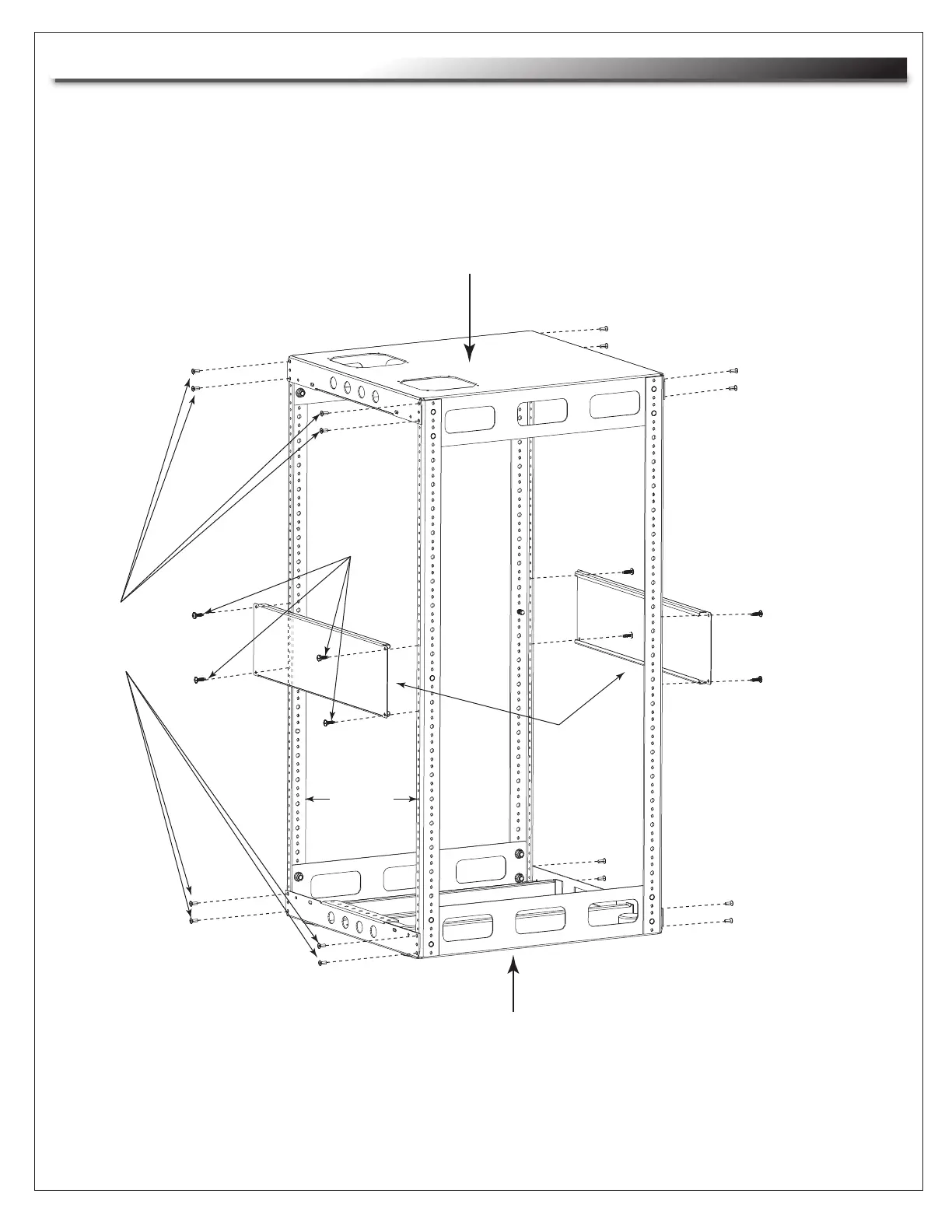

FIGURE D
Squaring
Panels
(2)
Hex Head
Screws 10-32
(4 Per Rackrail)
Screws 10-32
(4 Per
Squaring
Panel)
Top Frame
Bottom Frame
Rackrail
1) Construct rough opening and base.
2) Assemble frame.
3) Install cable carriers / rough-in pan.
4) Install service stand.
5) Attach frame to tracks and cable
carriers.
6) Assemble leash.
7) Tie cable to carriers.
8) Secure rack in millwork.
Page 10
