FlashPro Express User Guide
11
Saving a Job Project

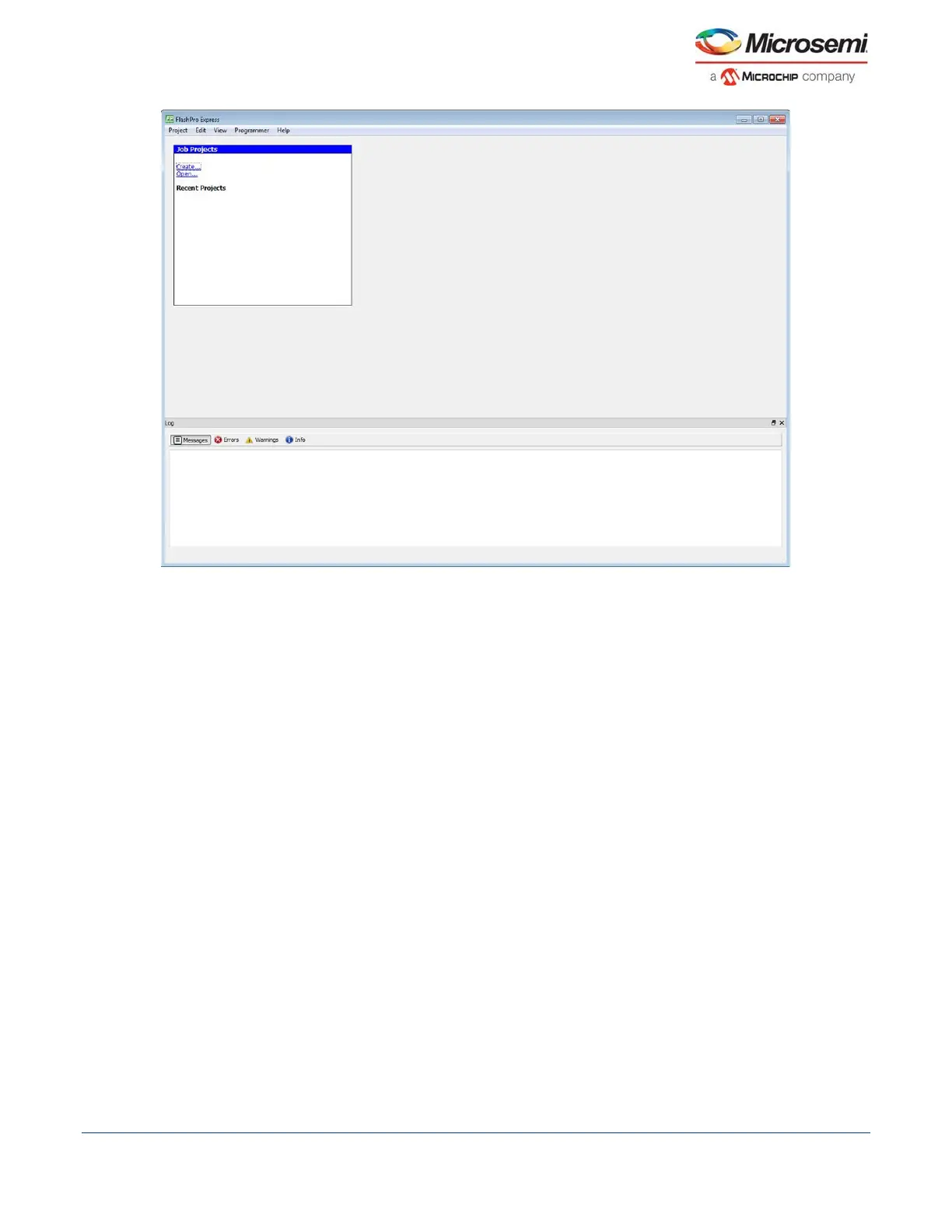

Figure 5 · FlashPro Express Launch Screen
Click the Save button on the toolbar, or from the Project menu choose Save Job Project to save your project.
Programming Tutorials
Parallel Programming with FlashPro5/4/3/3X
Parallel programming enables you to program multiple Microsemi devices in parallel with multiple programmers.
In parallel programming, all targeted devices are programmed with the same programming file (STAPL). The
targeted device or chain configuration that is connected to each programmer must be identical.
The FlashPro Express software together with the FlashPro5/4/3/3X programmers supports parallel programming
via a USB port. You can connect up to sixteen FlashPro5/4/3/3X's to a PC via a USB v1.1 or a USB v2.0 port.
FlashPro5/4/3/3X requires a self-powered hub.
Connecting FlashPro5/4/3/3X (a USB v2.0 enabled programmer) to USB v1.1 port increases device programming
time due to a slow data transfer rate on the USB v1.1 port in comparison to a USB v2.0 port.
The following figure illustrates how you can connect a FlashPro5/4/3/3X programmer for parallel programming.
