XTreme-EFIS Operating Manual Page 27

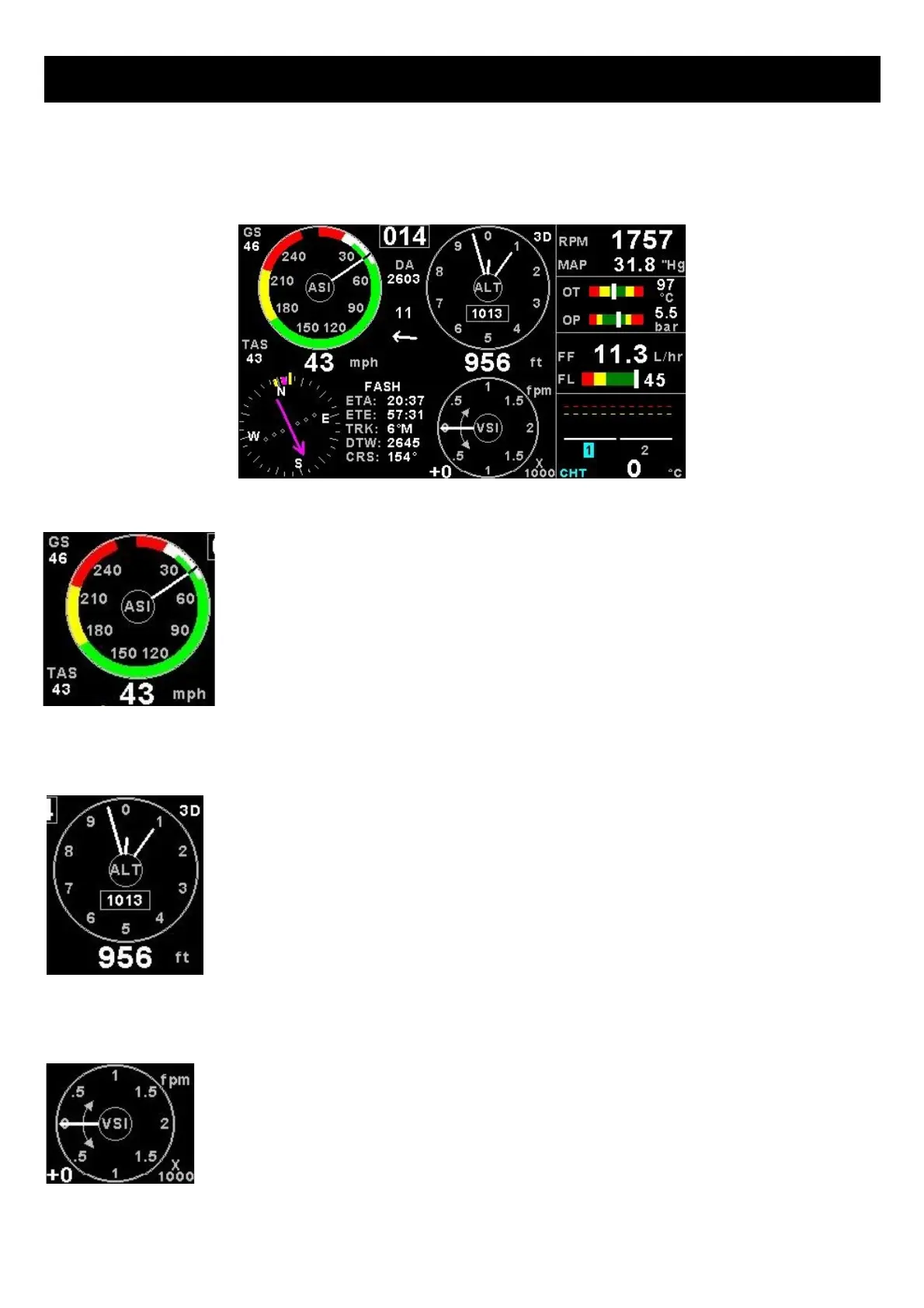

3.10 VFR/EMS Display
The VFR display shows the altitude, airspeed and VSI in the traditional round gauges with 1/3 of the screen reserved for
engine data.
3.10.1 Airspeed Dial
This displays the airspeed as a traditional analog airspeed indicator. A digital readout of
the airspeed value is also displayed below the dial. The Vso (min safe speed, landing), Vs1
(min safe speed, normal), Vfe (max flap speed), Vno(max maneuvering speed) and Vne (max
exceed speed) can be configured in the “AIRSPEED SETUP” menu.
3.10.2 Altitude Dial
This displays the altitude as a traditional 3 needle analog altimeter. A digital readout of the
altitude value is also displayed below the dial. The altitude parameters can be configured in the
“ALTITUDE SETUP” menu.
The local pressure setting (QNH) is located in the bottom center of the altitude dial. Turn the
rotary control to change the local pressure setting. The local pressure can be displayed in mB or
in “HG.
3.10.3 VSI indicator
This displays the VSI as a traditional VSI indicator. The scale and units can be configured in the
“VSI SETUP” menu.
