XTreme-EFIS Operating Manual Page 19

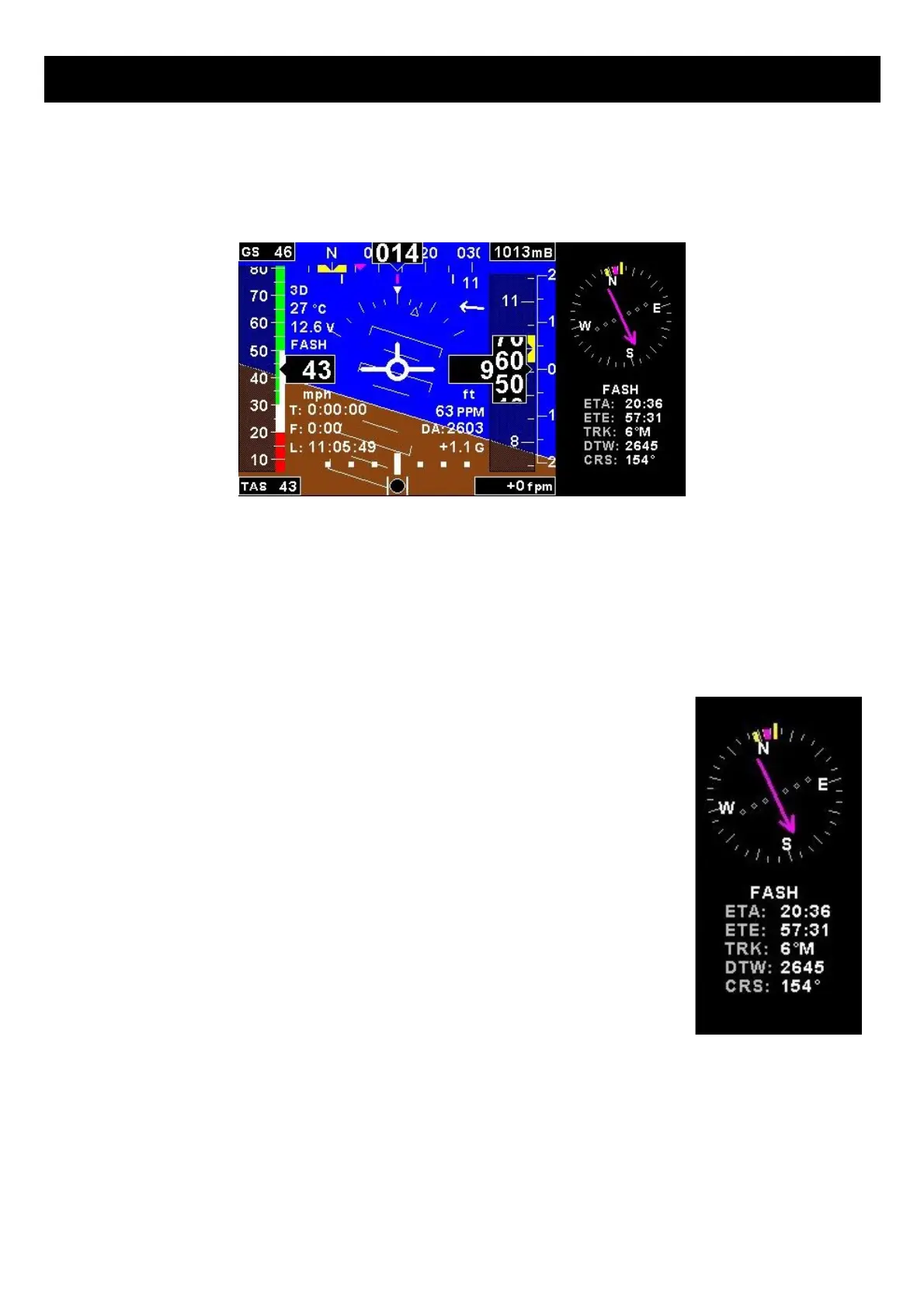

3.6 EFIS/HSI Display
The EFIS/HSI displays the EFIS in a 2/3 screen format and the navigation information in a 1/3 screen format.
3.6.1 EFIS Display
The 2/3 EFIS display is in the same layout format as the full EFIS display. Please see the section 3.1 for more
information.
3.6.2 Navigation Display
The XTreme displays the navigation information in a form of a HSI (Horizontal Situation
Indicator)
Heading:
The yellow bar at the top points to your heading. It is also known as the lubber line.
Compass Rose:
The compass rose is the 360 degree circle around the HSI. It is broken down into 5 degree
divisions.
Heading Bug:
The 2 yellow lines indicate the heading bug. The heading bug can be adjusted in the quick
select menu system.
Coarse Selector:
The magenta arrow (Indicating that the information is coming the internal GPS) points in the
direction which you must fly in order to reach the active waypoint.
CDI (Coarse Deviation Indicator):
The center line of the Coarse Selector moves off the center to indicate which direction you must fly in order to stay on the
the original coarse. If the CDI is to the left then fly left until the CDI lines up with the Coarse selector. The “tick” marker
scale can be setup in the “GPS SETUP” menu.
Navigation Information:
Under the HIS you will find the short name of the active waypoint. You will also find the following information:
ETA: Estimated Time of Arrival.
