C5 1-3 SERIES HOLDING & PROOFING CABINETS — INSTRUCTIONS FOR USE
21
www.metro.com
L01-430
REV W 01/22
SERVICE and REPLACEMENT PARTS (continued)
(For 120V parts see Page 17 & for 220-240V parts see Page 18)

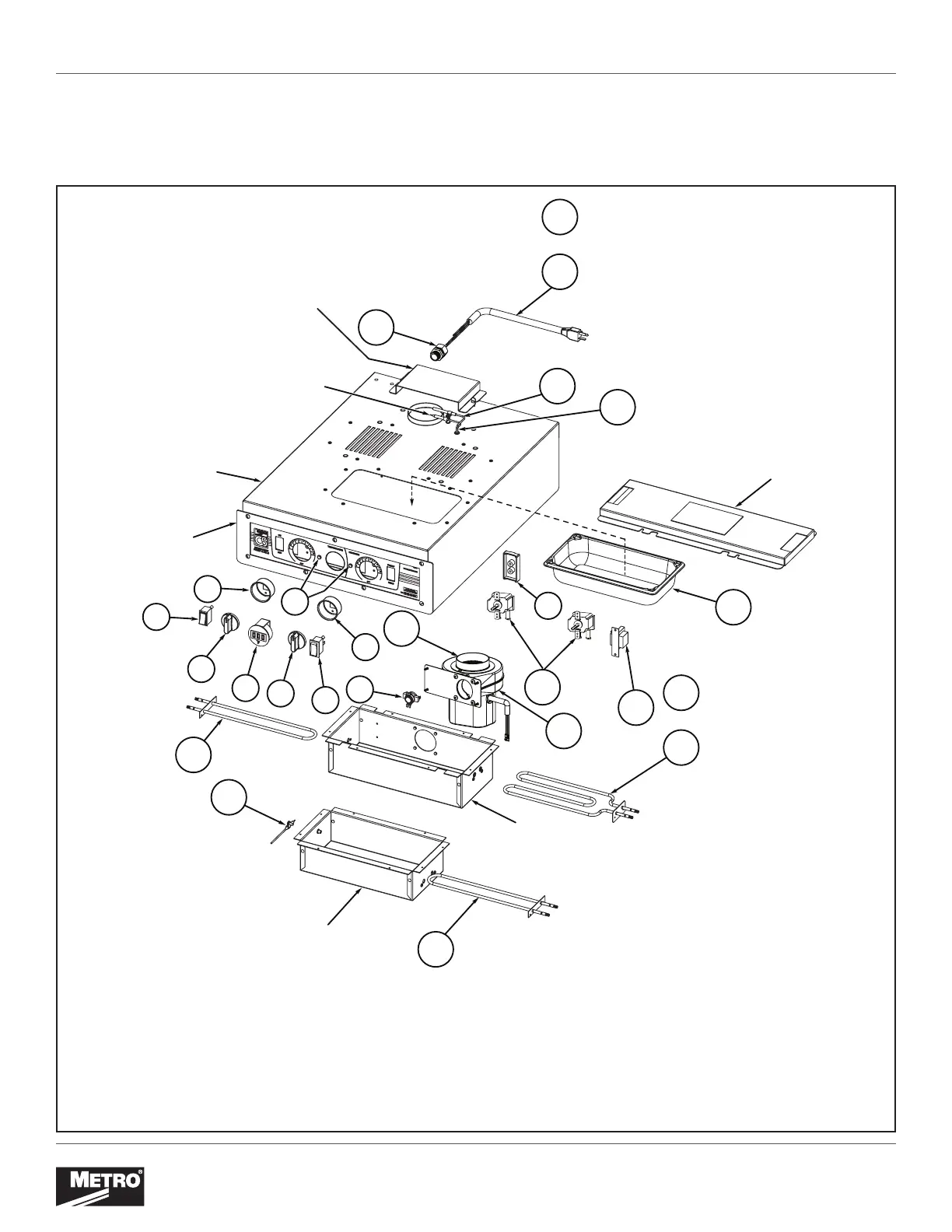

COMBO MODULE
44
43A
43
or
STRAIGHT PLUG
CORD SHOWN
47
46
AIR DISCHARGE
COVER
48
37
33
45
40A
40
or
AIR DUCT
39
38
41
WATER PA N
ENCLOSURE
34
42
47
MOISTURE
THERMOSTAT
BULB
41
31
32
36
32
30
34
35
CONTROL
PANEL
MODULE
CHASIS
HEAT THERMOSTAT
BULB &
THERMOMETER SENSOR
INTAKE COVER
STAINLESS STEEL
WATER PA N
*
*
*
*
FOR 120V REPLACEMENT C5-CM2000 MODULE, ORDER ITEM #51 ON PAGE 17
FOR 120V REPLACEMENT C5-CM1500 MODULE, ORDER ITEM #54 ON PAGE 17
FOR 220-240V REPLACEMENT C5-CM2000X MODULE, ORDER ITEM #51 ON PAGE 18
**ON 220-240V MODULES THERMOMETER AND TRANSFORMER ARE SERVICED AS ONE UNIT.
