C5 1-3 SERIES HOLDING & PROOFING CABINETS — INSTRUCTIONS FOR USE
23
www.metro.com
L01-430
REV W 01/22
SERVICE and REPLACEMENT PARTS (continued)
(For 120V parts see Page 17 & for 220-240V parts see Page 18)

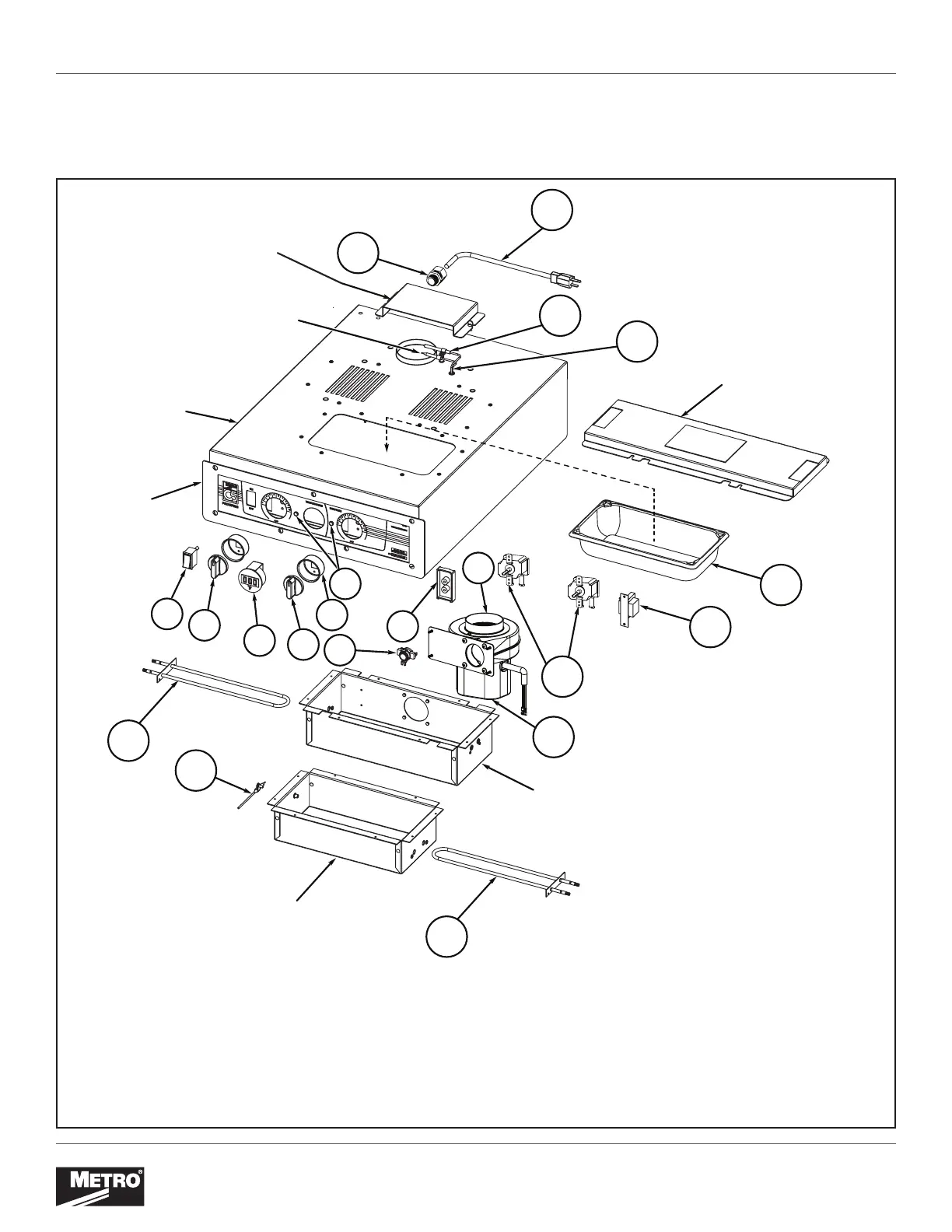

PROOFING MODULE
44
43A
STRAIGHT PLUG
CORD SHOWN
47
46
AIR DISCHARGE
COVER
48
37
AIR DUCT
33
41
45
38
42
WATER PA N
ENCLOSURE
47
MOISTURE
THERMOSTAT
BULB
41
32
36
32
30
34
35
CONTROL
PANEL
MODULE
CHASIS
HEAT THERMOSTAT
BULB &
THERMOMETER SENSOR
AIR INTAKE
COVER
STAINLESS STEEL
WATER PA N
*
*
*
*
39
FOR 120V REPLACEMENT C5-PM1500 MODULE, ORDER ITEM #53 ON PAGE 17
FOR 220-240V REPLACEMENT C5-PM1500X MODULE, ORDER ITEM #53 ON PAGE 18
**ON 220-240V MODULES THERMOMETER AND TRANSFORMER ARE SERVICED AS ONE UNIT.
