KIT ASSEMBLY
DIN radio provision with pocket
1. Slide the
radio brackets
onto the sides of
the
radio housing
until the side clips engage.
(Figure A) Note: Tabs are marked Left and Right.
2. Remove the metal DIN sleeve from the
aftermarket radio.
3. Slide the sleeve into the
radio housing
and
secure by bending the metal locking tabs
down. (Figure B)
4. Slide the radio back into the sleeve until it
clicks into place. (Figure C)
5. Snap the
trim plate
onto the radio housing.
(Figure C)
6. Locate the factory wiring harness and antenna
connector in the dash and complete all
necessary connections to the radio. Metra
recommends using the proper mating
adapter from Metra and/or AXXESS.
7. Reconnect the negative battery terminal and
test the aftermarket radio for proper operation.
8.
Mount the radio assembly into the dash using the
factory screws and reassemble the dash in reverse
order of disassembly to complete the installation.

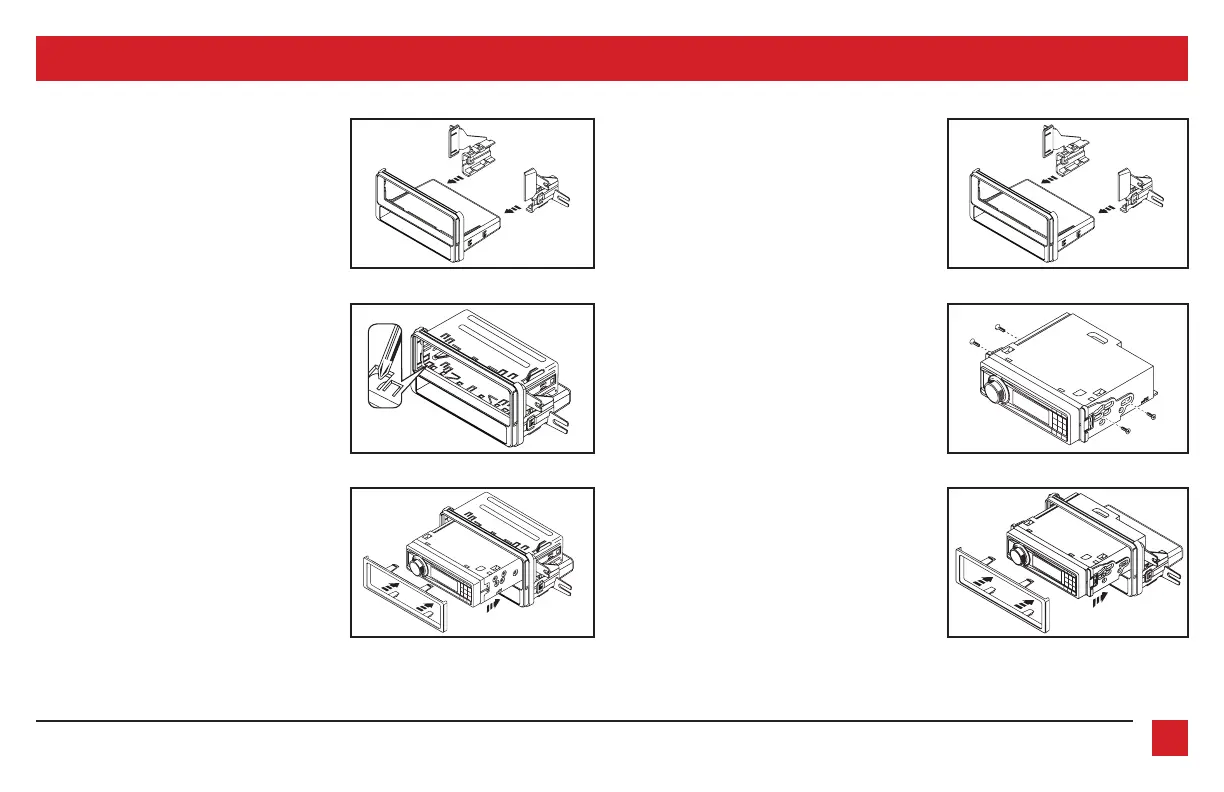

(Figure A) (Figure A)
(Figure B) (Figure B)
(Figure C) (Figure C)
ISO DIN radio provision with pocket
1. Slide the
ISO radio brackets
onto the sides of
the
radio housing
until the side clips engage.
(Figure A) Note: Tabs are marked Left and Right.
2. Remove the metal DIN sleeve and trim ring
from the aftermarket radio.
3. Secure the
ISO brackets
to the radio with the
screws supplied with the radio. (Figure B)
4. Slide the radio/bracket assembly into the
radio
housing
until the side clips engage. (Figure C)
5.
Snap the
trim plate
into the
r
adio housing.
(Figure C)
6.
Locate the factory wiring harness and antenna
connector in the dash and complete all necessary
connections to the radio. Metra recommends
using the proper mating adapter from Metra and/
or AXXESS. Test the radio for proper operation
.
7.
Reconnect the negative battery terminal and
test the aftermarket radio for proper operation.
8. Mount the radio assembly into the dash using
the factory screws and reassemble the dash
in reverse order of disassembly to complete
the installation.
