REV. 3/29/2024 INST99-8164
99
INSTALLING THE INTERFACE
FINAL ASSEMBLY
PROGRAMMING
• Open the drivers door and keep open during the process.
• Cycle the ignition to on.
• Connect the harnessing to the vehicle.
• Wait until the radio powers on and the touchscreen displays “SWC configured”.
• Cycle the ignition off and back on.
• Test all functions.
It is highly advisable to read the following steps beforehand, to ensure a clear understanding of
what is to be expected. The following steps must be done in the order that they are numbered.
With the vehicle completely off:

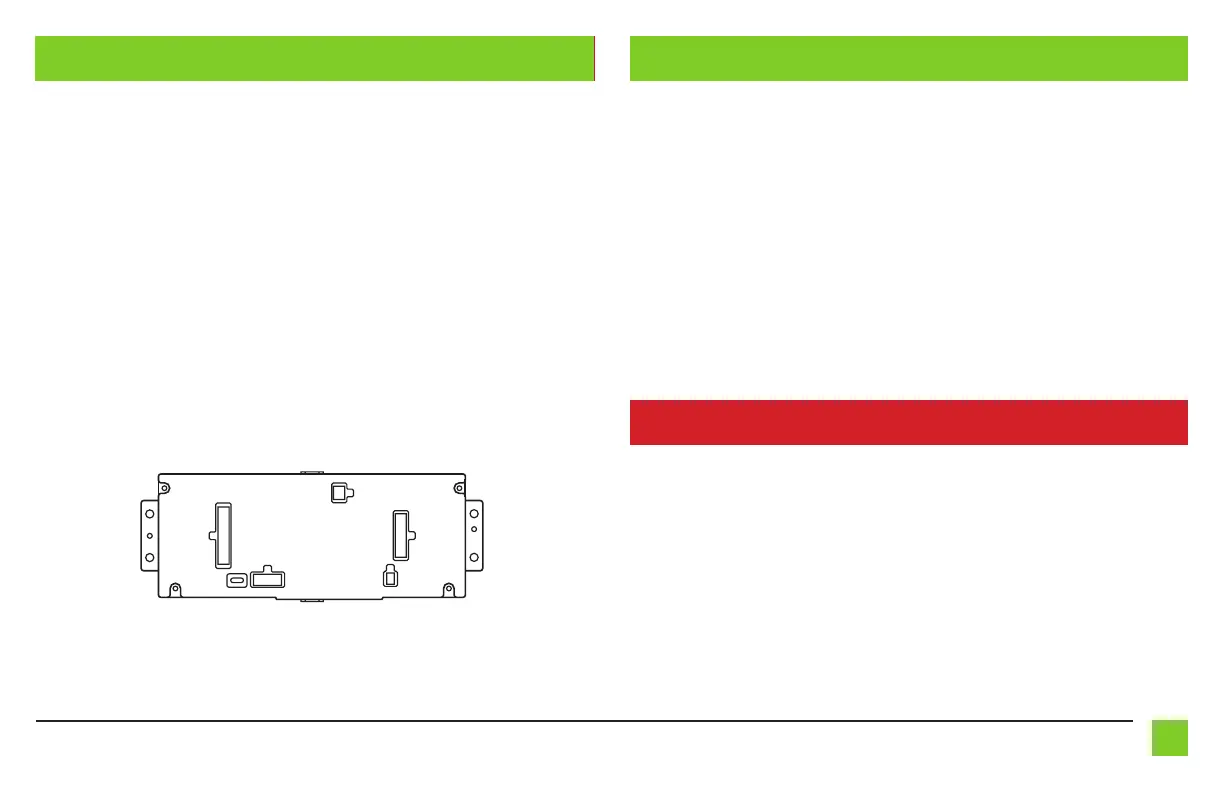

Touchscreen display
1. Connect the 8164 harness to the wiring harnesses in the vehicle. Then insert the 8164
harness into port “A” in the touchscreen display.
2. If adding an aftermarket back-up camera to the touchscreen. Connect the 4-pin
harness with yellow RCA jacks into port “C” in the touchscreen display.
3. Disregard port “E” and “B” and “D”, it will not be used in this application.
4. Port “F” is an update port for future firmware upgrades.
5. Locate the factory antenna connector in the dash and complete all necessary
connections to the radio. Metra recommends using the proper mating adapter
from Metra.
A
F
D
C
E
B
1. Secure the completed assembly into the dash using the factory hardware and reassemble
the dash in reverse order of disassembly.
