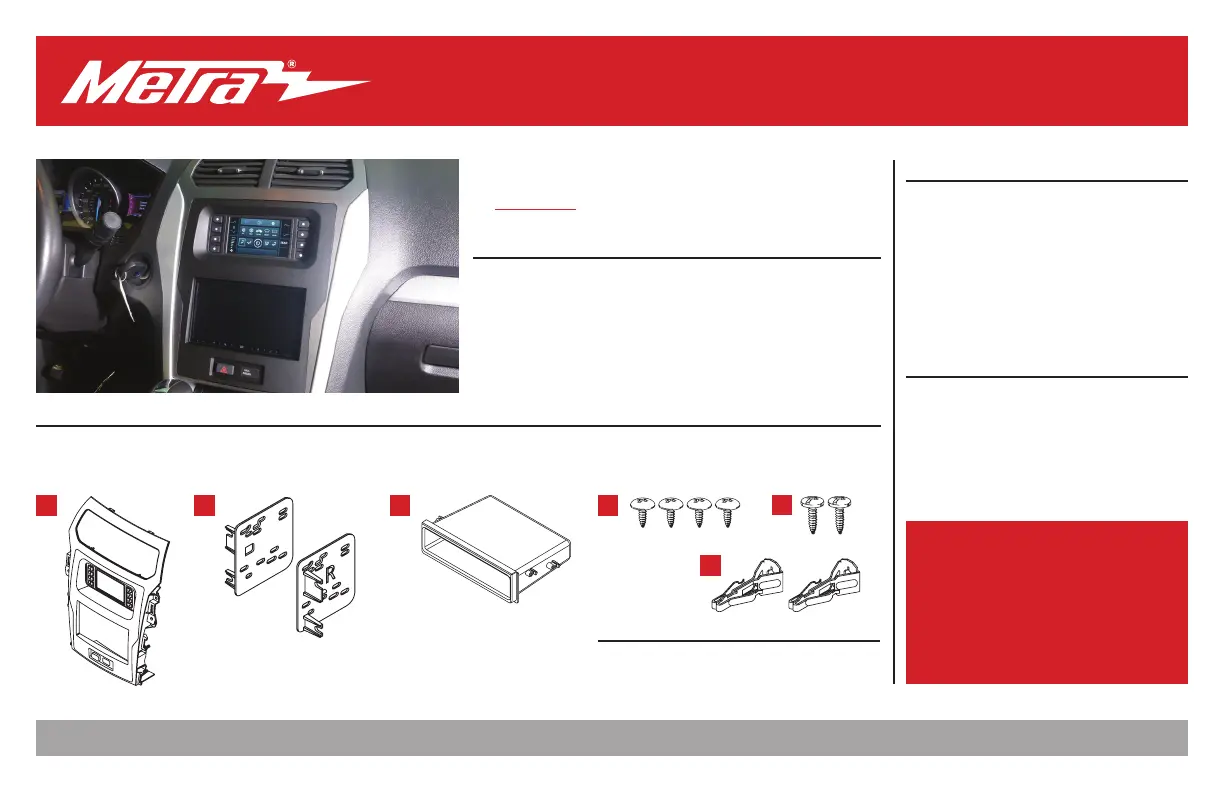

Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/19/24 INST99-5858CH
INSTALLATION INSTRUCTIONS
99-5858CH
Patent # 10,579,232
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and
most personalization features
• Included interface for climate and
steering wheel functions
• Integrated hazard switch and
passenger airbag indicator
• Painted charcoal to match the
factory finish
KIT FEATURES
KIT COMPONENTS
• A) Radio bezel (w/airbag light, hazard switch and touchscreen) • B) Radio brackets • C) Pocket • D) #8 x 3/8” Phillips screws (4)
• E) #4 x 1/2” Phillips screws (2) • F) Panel clips (2) • G) Axxess interface and wiring harness (not shown) • H) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” Socket wrench • Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly .................................................. 2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision ....................................4
Final Assembly ....................................................... 9
Axxess Interface Installation ...........................5-14
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
• Antenna Adapter: Included with kit
• USB retention sold separately. AX-FDUSBAUX
for 2015-2019, AXFD-USB3 for 2011-2014.
Ford Explorer (with 8-inch touchscreen & Sony audio) 2011-2019
A B C D
E
F
Visit MetraOnline.com for more detailed information about the product and up-to-date
vehicle specific applications
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
