99-3307G
2
Dash Disassembly
1. With pocket above factory radio
controls - Remove (2) 9/32”
screws from inside the pocket,
then unclip and remove the pocket.
2. Without pocket, just unsnap and
remove the panel. (Figure A)
3. Unsnap, unplug, and remove
the radio/ climate control panel.
(Figure B)
4. Unclip and remove the (2) side
panels from the left and right
side of the pocket/CD slot panel.
(Figure C)
5. Remove (4) 9/32” screws to remove
the pocket/CD slot panel. Remove
the power outlet and attach it to the
included pocket if installing single
DIN. If you are mounting a DDIN the
power outlet will not be retained with
this kit. Remove the rubber bottom
from the factory pocket and save it
for final assembly. (Figure D)
6. Remove (2) 9/32” screws from
each a/c vent then unclip and
remove the vents. Remove the
screws inside and under the vent
cavities and two from below the
vent locations. (this will allow flex
in the dash to fit the aftermarket in
later). (Figure E)
7. Remove (4) 9/32” screws securing
the radio chassis and remove.
(Figure F)
Continue to Kit Preparation

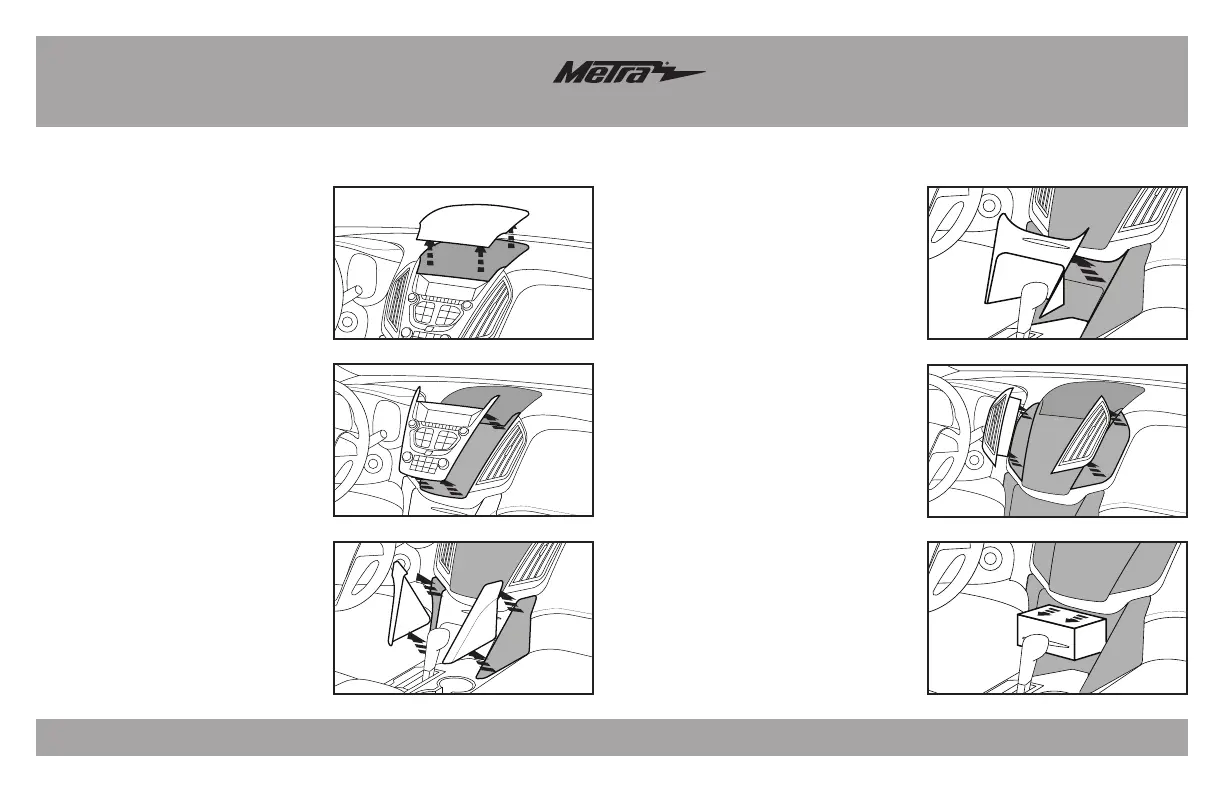

(Figure A) (Figure D)
