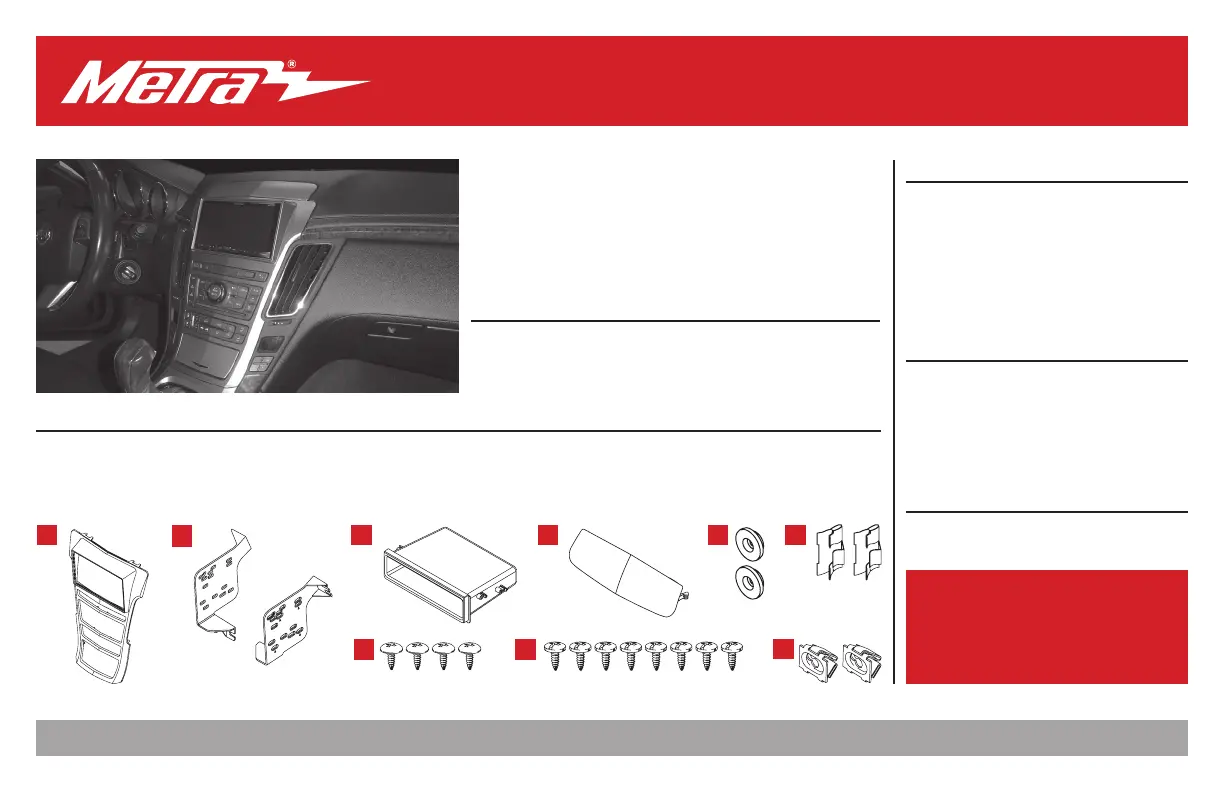

INST99-3018

INSTALLATION INSTRUCTIONS

99-3018

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• 99-3018HG - gloss black, 99-3018S - silver

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Upper dash trim panel (for navigation models) • E) (2) Plastic washers • F) (2) Metal clips

• G) (4) #8 x 3/8” Phillips truss-head screws • H) (8) #8 x 3/8” Phillips pan-head screws• I) (2) Copper threaded inserts

• J) Axxess interface and wiring harness (not shown)

TOOLS REQUIRED

• Panel removal tool • 9/32” socket wrench

• T-10 Torx driver • Cutting tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ..............................................2-4

Kit Preparation .......................................................5

Kit Assembly

–ISO DIN radio provision with pocket ..................6

–ISO DDIN radio provision .....................................6

Axxess Interface Installation .............................7-15

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface and

harness included

Antenna Adapter: 40-EU10 (sold sep.)

Steering wheel control interface: ASWC-1 (sold sep.)

Backup camera retention: BACKUPCAM-2 (sold sep.)

D E F

Cadillac*

CTS (Coupe) 2014, CTS-V 2008-2014

CTS (Coupe/Sedan) 2008-2013

* Please note this kit will not work in the Sport Wagon
