Meridian 251 Powered Zone Controller User Guide
17
Subwoofer mix: Specifies whether the subwoofer(s) are
mono or stereo.
Left/Right filter: select High Pass to filter low frequencies
from the outputs corresponding to the main left and right
channels, or Full Range to send the bass to both the main
loudspeaker outputs and the subwoofer output(s).
Gain offsets: Allows you to add a gain offset to the Main,
Left/mono subwoofer, and Right/mono subwoofer
outputs.

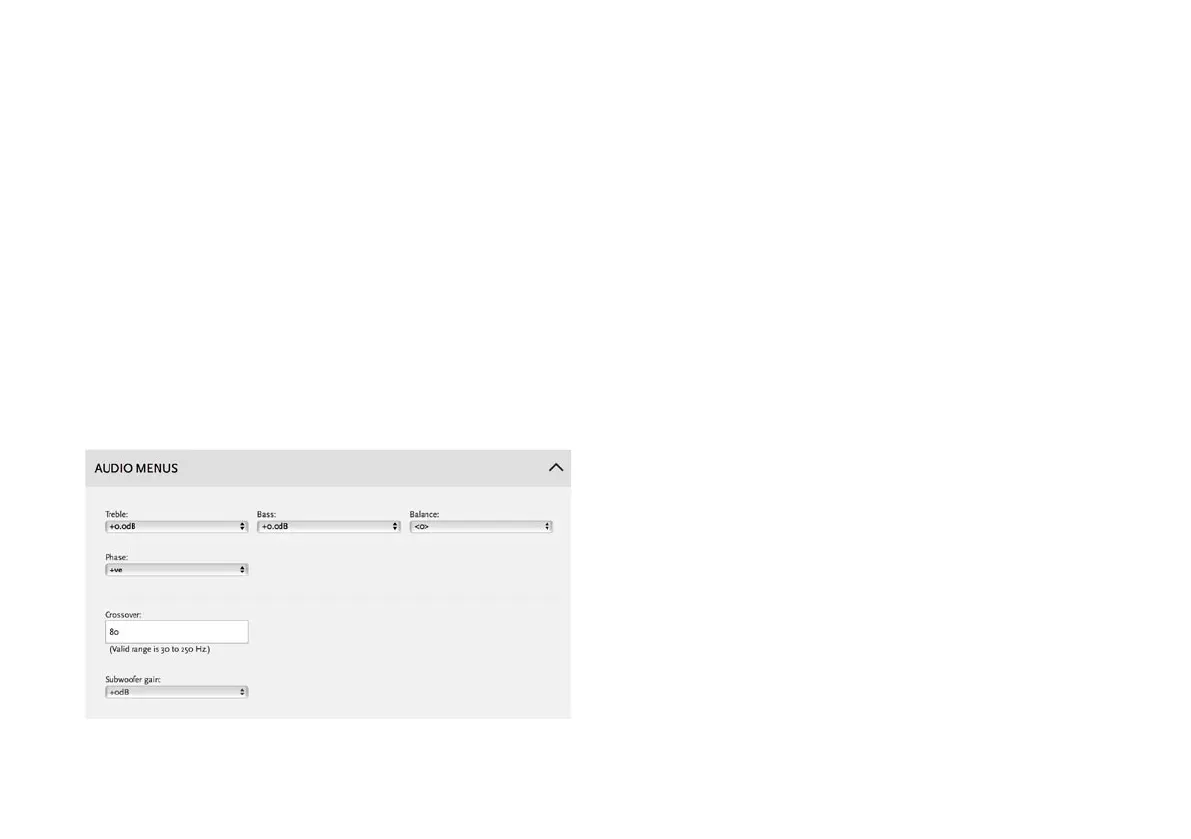

Audio menus
The options on the Audio menus panel allow you to specify
the default values of DSP settings when the 251 is powered
up, and change the settings when the loudspeakers are being
used.
Treble: Tilts the frequency of the response over the entire
frequency range to make the sound brighter or dimmer. It can
be adjusted between ±10db in 0.5dB steps.
Bass: Adjusts the bass response in the room by ±5dB in
0.5dB steps.
Balance: Compensates for an off-centre listening position
where 0 is central, 8 is in line with the corresponding main
speaker, and 10 is fully to one side.
Note: Balance only affects the subwoofer outputs when they
are set to stereo.
Phase: Changes the absolute phase of the signal, to
compensate for signals which are out of phase, giving an
unnatural-sounding bass.
Crossover: Allows you to adjust the crossover frequency of
the subwoofer(s).
Subwoofer gain: Allows you to adjust the gain of the
subwoofer(s).
