Meridian 251 Powered Zone Controller User Guide
5
Unpacking
The 251 Powered Zone Controller is supplied with:
A power cord.
Four self-adhesive feet.
Two Phoenix speaker connectors.
Quick Start Guide
Please contact your retailer if the power cord has the wrong
plug for your territory.
•
•
•
•
The feet can be fixed to the base of the product, which is
printed with circles as a guide. The feet will not be needed if
you are mounting the unit on a rack tray; see
Installing 251
Powered Zone Controllers in a rack tray
, page 13.
Back panel

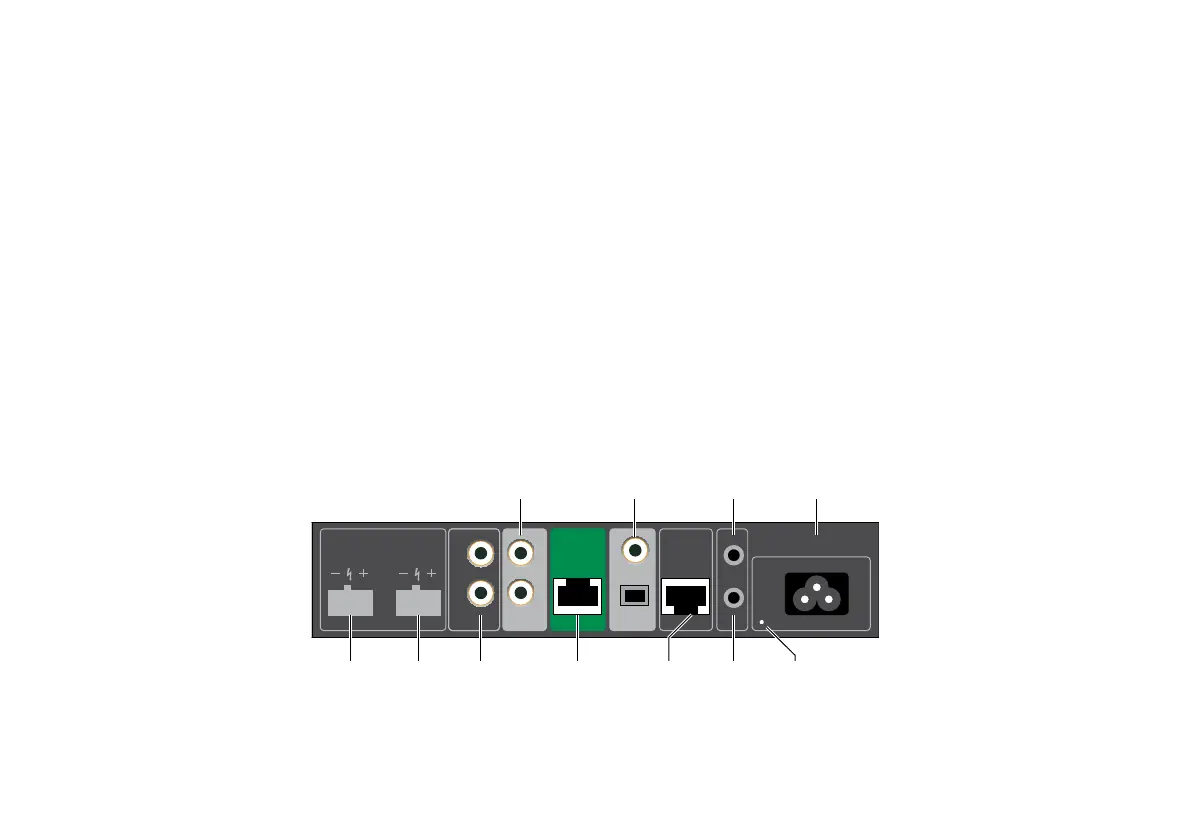

The following diagram gives details of the back panel
connections:
NetworkOutputs
IR In
Trigger
Out
SpeakerLink In
Optical In
Analogue Out
Digital In
Right
Left
LeftRight
Analogue In
Right
Left
Analogue
inputs
Digital and
optical inputs
Trigger
output
SpeakerLink
input
Ethernet
connection
Loudspeaker
outputs
Analogue
outputs
Power
Power
indicator
IR
input
