Meridian 218 Zone Controller User Guide
20

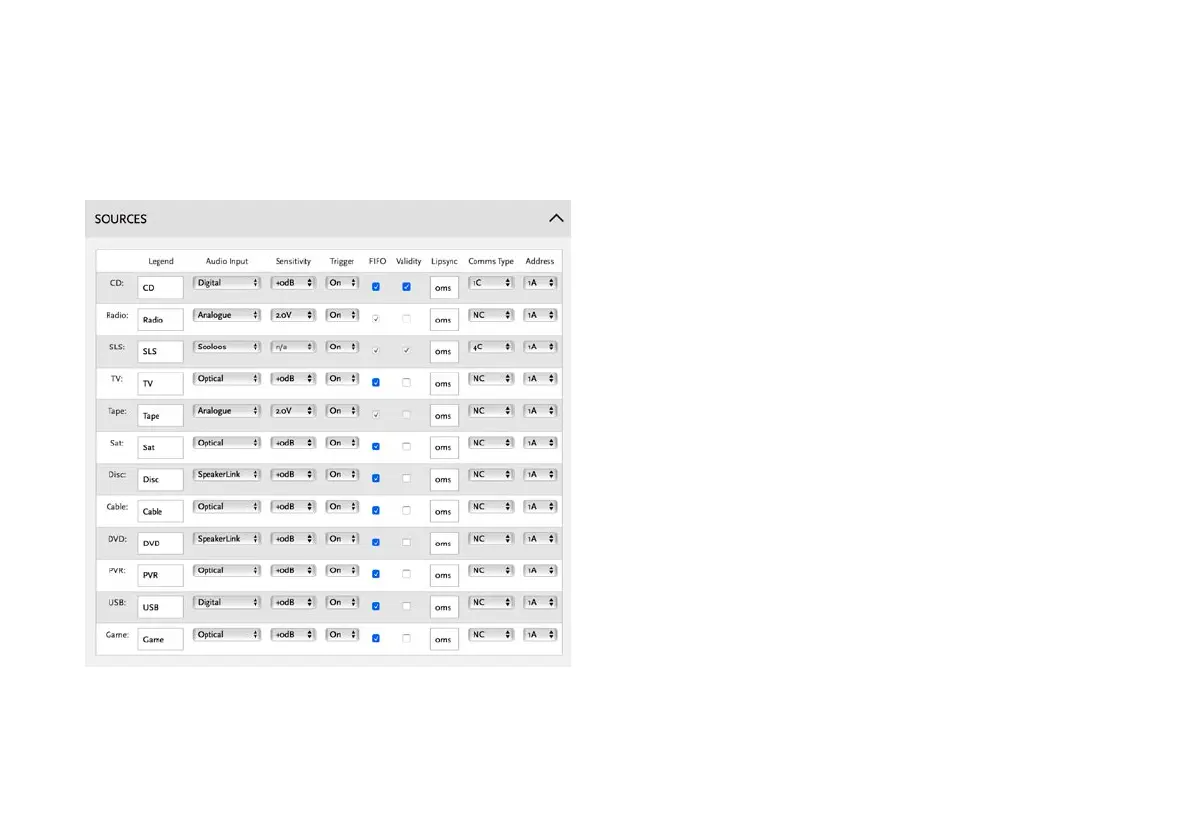

Sources
Allows you to configure the 12 Meridian sources.
Legend: A string of up to 5 characters which will be displayed
on the Automation interface and on newer SpeakerLink-enabled
DSP loudspeakers.
Audio input: Each of the 12 logical sources can be assigned
to any of the audio inputs: Analogue, Digital, Optical,
SpeakerLink, or Sooloos. Alternatively any source can be
set to Last Valid, which changes the other settings but leaves
the input unchanged, Other which just makes the source
switch on from standby when selected, or Off, which makes
the source ignore commands.
Sensitivity: For analogue inputs you can select one of five
sensitivities: the maximum RMS voltage that can be input before
clipping occurs in the ADC. For digital inputs you can select
one of five gain values to compensate for loud or quiet digital
sources.
Trigger: Can be set to On, Off, or LV (Last Valid) to control
the trigger output. Note that the trigger is always off in standby.
FIFO: The FIFO box would normally be checked, but can be
unchecked for digital sources with a poor quality clock that the
218 is unable to reclock.
Validity: Some sources, such as the Meridian CD players, use
the Validity flag in the S/PDIF audio stream to indicate that the
audio should not be played. Setting this may reduce unwanted
noises in some situations.
Lipsync: Allows you to delay the audio by up to 85msec so
that it aligns correctly with a video signal that has been delayed
by a scaler. The default is 0ms.
