Meridian 218 Zone Controller User Guide
18

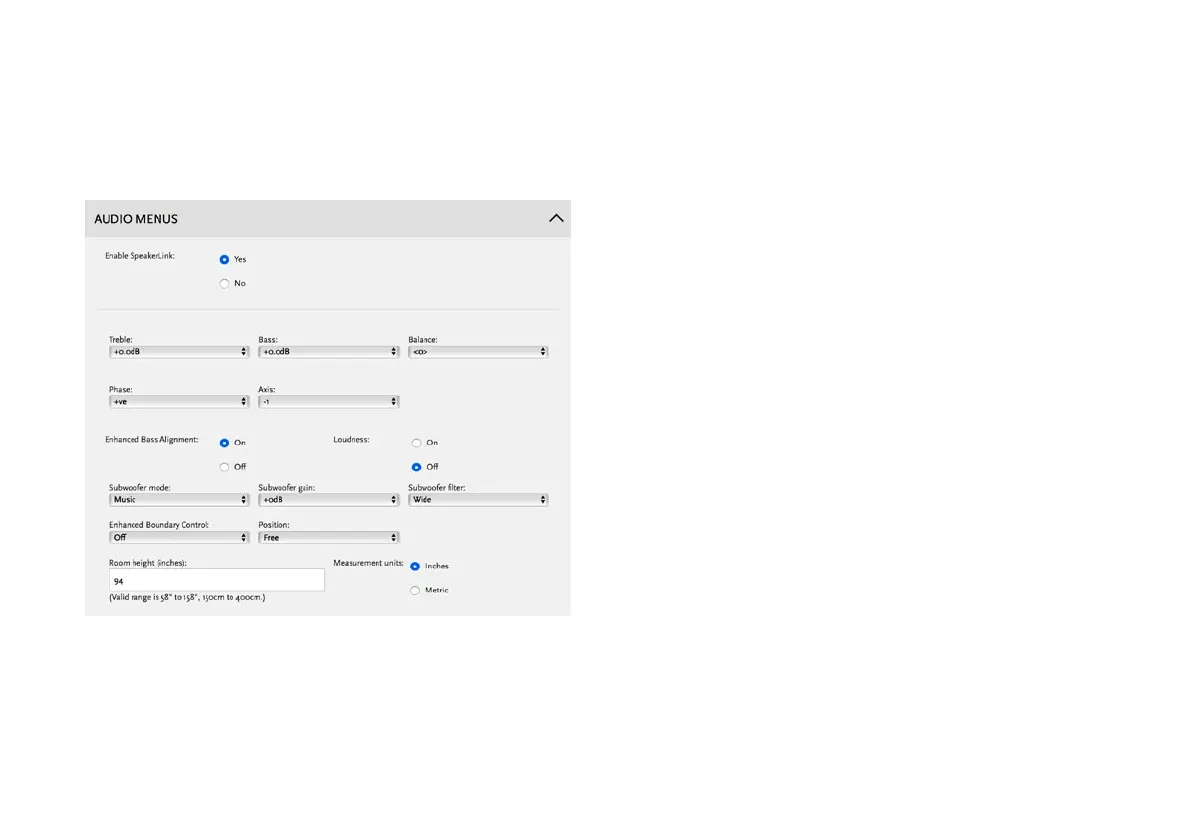

Audio menus
The options on the Audio menus page allow you to specify
the default values of settings on DSP loudspeakers when
the 218 is powered up, and change the settings when the
loudspeakers are being used.
Enable SpeakerLink: Specifies whether the SpeakerLink
controls described on the next page are sent via the
SpeakerLink connections.
Treble, Bass, Balance, and Axis
Treble: Tilts the frequency of the response over the entire
frequency range to make the sound brighter or dimmer. It can
be adjusted between ±10db in 0.5dB steps.
Bass: Adjusts the bass response in the room by ±5dB in
0.5dB steps.
Balance: Compensates for an off-centre listening position
where 0 is central, 8 is in line with the corresponding main
speaker, and 10 is fully to one side.
Phase: Changes the absolute phase of the signal, to
compensate for signals which are out of phase, giving an
unnatural-sounding bass.
Axis: Allows you to compensate for the height of the listener
relative to the tweeter. It can be adjusted between -2 and +3,
where 0 corresponds to the axis of the tweeter.
Note: Treble, Bass, and Balance are always sent to DSP
speakers, but only affect the analogue outputs when the 218
is set up with variable outputs. The Axis control only applies to
digital outputs.
