INSTALLATION
Check the appliance is electrically safe when you have nished.
27
ArtNo.010-0004 Moving the cooker
Positioning the Cooker

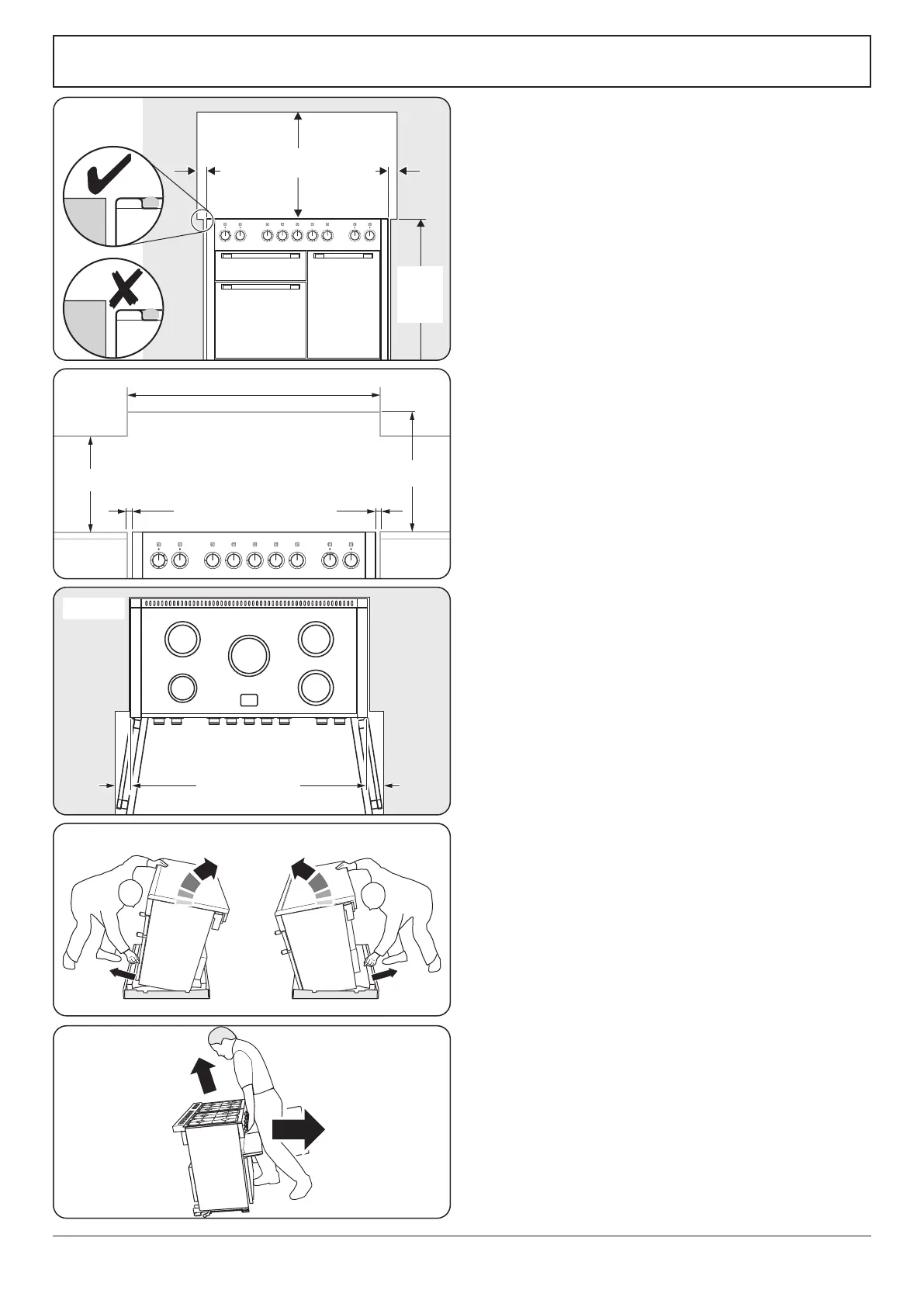

Fig. 7.1 and Fig. 7.2 shows the minimum recommended
distance from the cooker to nearby surfaces.
The cooker should not be placed on a base.
Above hotplate surround should be level with, or above, any
adjacent work surface.
A gap of 33mm should be left between each side of the
cooker ABOVE the hotplate level and any adjacent vertical
surface.
For non-combustible surfaces (such as unpainted metal or
ceramic tiles) this gap is not required.
A minimum space of 800mm is required between the top of
the hotplate and a horizontal combustible surface.
*Any cookerhood should be installed in accordance with the
hood manufacturer’s instructions.
**Any splashback must be tted in accordance with the
manufacturers instructions. Allowance should be made for
the additional height of the ue trim, which is tted to the
cooker hob.
Surfaces of furniture and walls at the sides and rear of the
appliance should be heat, splash and steam resistant. Certain
types of vinyl or laminate kitchen furniture are particularly
prone to heat damage and discolouration.
We cannot accept responsibility for damage caused by
normal use of the cooker to any material that de-laminates
or discolours at temperatures less than 65°C above room
temperature.
We recommend a gap of 1000mm between units to allow
for moving the cooker. Do not box the cooker in – it must
be possible to move the cooker in and out for cleaning and
servicing.
A clearance of 90mm is required if the cooker is near a corner
of the kitchen to allow the oven doors to open (Fig. 7.3). The
actual opening of the doors is slightly less but this allows for
some protection of your hand as you open the door.
Moving the Cooker
n
On no account try and move the cooker while it is
plugged into the electricity supply.
n
The cooker is very heavy, so take great care.
We recommend that two people manoeuvre the cooker.
Make sure that the oor covering is rmly xed, or removed,
to prevent it being disturbed when moving the cooker
around.
To help you, there are two levelling rollers at the back, and
two screw-down levelling feet at the front.
Remove the polystyrene base pack (Fig. 7.4). From the front,
tilt the cooker forward and remove the front half of the
polystyrene base (Fig. 7.5). Repeat from the back and remove
the rear half of the polystyrene base.
ArtNo.110-0081 - 120 IN - Mercury door clearances
90 mm minimum
0
100
140
180
220
1
3 3
2 2
1
0
0
0
100
140
180
220
33 mm
min
800 mm
min
33 mm
min
920 mm
min
945 mm
max
0
100
140
180
220
1
3 3
2 2
1
0
0 0 0 0 0
0
0
100
140
180
220
990 mm minimum*
(check cookerhood instructions for actual dimensions)
410 mm
minimum
800 mm
minimum
**
5mm 5mm
Fig. 7.1
Fig. 7.2
Fig. 7.3
Fig. 7.4
Fig. 7.5
