3 Product Description

General information 3.1

The MENNEKES AMTRON

®

Wallbox is a charging station for

use in private and semi-public areas, such as company car

parks, depots or private land.

The charging station is used exclusively for charging

electrically powered vehicles.

 Mode 3 charging according to IEC 61851-1:2010.

 Plugs and sockets according to IEC 62196.

The charging station is operated as a stand-alone solution

without connection to a master control system.

The charging station is intended solely for fixed installation.

Features:

 Status information through LED info bar.

 MENNEKES CPX communication and control unit.

 Multi-function button (termination of charging process,

RCCB test, re-activation of RCCBs and CBs).

 Unlocking function in the event of a power failure whe

n

charging with a type 2 charging plug (mode 3).

 Enclosure made of AMELAN.

 Integrated cable storage.

 Wired ready for connection.

Optional equipment 3.2

Depending on the version of the charging station, the

following optional features are available:

Connector systems

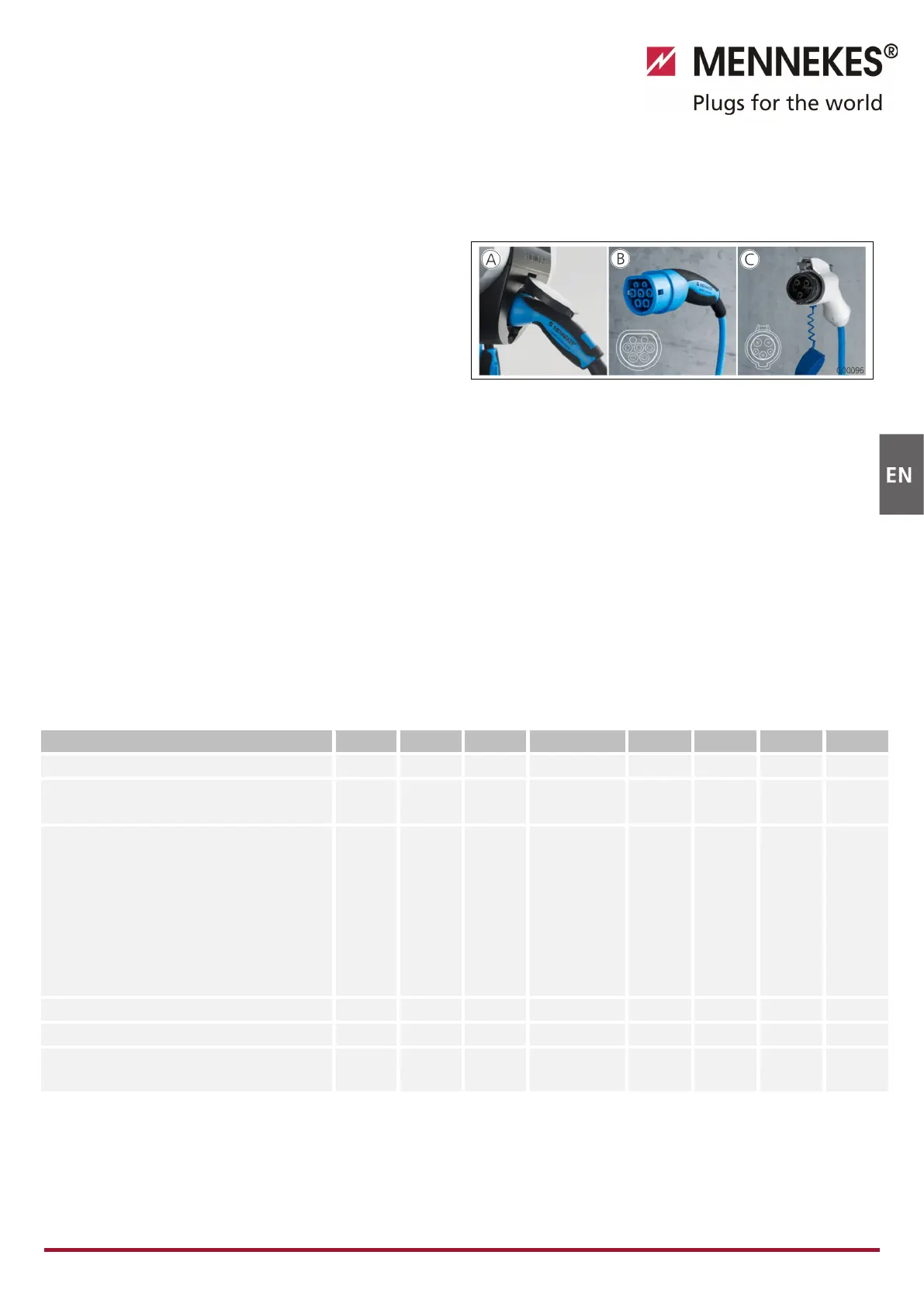

Fig. 1

Depending on the version, the charging station is equipped

one

of the following connector systems:

A Charging socket type 2 for use with separate charging

cable.

B Permanently connected charging cable with charging

connector type 2.

C Permanently connected charging cable with charging

connector type 1.

Wechs el ein-au f z weis pal tig

Start

1)

Start E

2)

Light

1)

Standard E

2)

Pro

1)

Basic

1)

Basic E

2)

Basic R

2)

LED info bar

       

Key switch for authorising charging

processes

— — —

   

Multi-function button



Stop function

  

—



— — —



Reset function

       

 Testing the residual current circuit

breaker

— —



—

 

—



 Re-

activating the residual current circuit

breaker

— —



—

 

—



Residual current circuit breaker (RCCB)

— —



—

 

—



Circuit breaker (CB)

— —



—

 

— —

Calibrated digital energy meter, readable

from outside

— — — —

   

1) Version for Germany

2) EU version
